DESCRIPTION

The largest and most powerful chainsaw in the STIHL lineup

For the largest, toughest and most demanding jobs, professionals can find the performance they need in the MS 881 chainsaw. With its updated engine design and up to 41” guide bar length, the MS 881R is the largest, most powerful saw in the STIHL lineup. Greater fuel efficiency than the previous model means savings of time and money. Another time-saving feature is the stop switch, which automatically returns to run position after the engine is stopped, reducing the chance of flooding the engine when starting.

FEATURES

• Ematic™ Lubrication System: The Ematic™ guide bar, when used with STIHL OILOMATIC® saw chain, will provide proper lubrication and less oil consumption than conventional methods. The system works because two ramps, strategically placed in the guide bar rail, help contain the flow of oil and direct all lubrication to the sliding faces of the bar and chain links as well as the rivets and driver holes, which in turn can reduce bar oil consumption up to 50%.
• HD2 Air Filter: The HD2 air filter on this unit is washable, providing extremely long filter life and lowering maintenance costs. The large surface area allows for longer run times between cleanings and high performance even while operating in dusty and dry conditions. Overall, the HD2 air filter provides better protection of the engine compared to standard air filters.
• STIHL Quickstop®: STIHL chainsaws are equipped with a chain stopping system designed to reduce the risk of injury in certain kickback situations. It is called a STIHL Quick stop® chain brake. The STIHL Quick stop® chain brake is designed to stop the rotation of the chain if activated by the operator’s hand or by inertia if the saw kicks back with sufficient force. In some working positions, the STIHL Quick stop® chain brake can be activated by inertia, stopping the chain within fractions of a second.
• Side-Access Chain Tensioner: The side-access chain tensioner makes it much more convenient for the user to adjust the saw chain with a bar wrench as opposed to the typical location of the guide bar adjustment screw.
• Fuel and oil caps with retainers: The fuel and oil cap retainers keep the caps attached to the unit for added convenience.
• Anti-Vibration System: STIHL has developed a system for minimizing the vibration levels of handheld outdoor power equipment. The STIHL anti-vibration system helps reduce operator fatigue and provides a more comfortable working experience.
• STIHL Elasto Start™: The Elasto Start™ starter handle is an exclusive feature of STIHL. It is a starting grip with a built-in shock absorber that helps reduce the effort when pulling on the starter cord. The Elasto Start™ starter grip noticeably reduces the sudden peak forces (compression) normally felt during cranking. The forces which occur at the grip after the first compression stroke are smoothed out.
• The largest, most powerful saw in the STIHL lineup: With its updated engine design and up to 41” guide bar length, the MS 881 is the largest, most powerful chainsaw in the STIHL lineup.
• Greater fuel efficiency and reduced exhaust emissions as compared to the previous model: The MS 881 has the same power as the MS 880 while using less fuel and reducing exhaust emissions, saving time and money while also being better for the environment.
• Efficient stop switch technology: Efficient stop switch technology saves users time and reduces the chance of flooding the engine when starting.
• Decompression Valve: The decompression valve, also referred to as 'deco' or 'deco valve', vents compression in the cylinder for easier starting. The decompression valve temporarily reduces the compression in the combustion chamber during cranking and helps reduce the effort needed to pull the starter rope. It is opened manually and closes automatically as soon as the engine fires.
• Adjustable Automatic Oiler: The Adjustable Automatic Oiler allows the user to adjust the lubricant of the guide bar and saw chain for different bar lengths and cutting conditions.
• Easy manual adjustment of the carburetor settings: The simplified design of the carburetor allows for easy manual adjustment.

SPECIFICATIONS

• Power Source: Gas
• Powerhead Weight: 21.8 lbs.
• Guide Bar Length (Recommended): 25 in.
• Oilomatic® Chain: 3/8" RS3
• Chain Oil Capacity: 23.7 oz.
• Engine Power: 8.6 bhp
• Fuel Capacity: 44 oz.
• Displacement: 121.6 cc

NOTES:

STIHL recommends #3946 (46 RS 80) OILOMATIC® saw chain and 25” 3002 000 9731 Ematic™ guide bar combination. Compatible guide bar ranges: 21" to 41" Warnings and Safety IMPORTANT SAFETY INFORMATION The occurrence called “kickback” can cause serious or fatal injury. Always read the instruction manual carefully before using your saw. STIHL uses a green and yellow color-coding system to help you select a powerhead, bar and chain combination that complies with the kickback requirements of ANSI Standard B175.1 (gasoline-powered saws) and §30 of UL 1662/ ANSI Standard B175.1 (electric chainsaws). Ask your STIHL dealer about safe operating procedures and the advantages of the STIHL Quickstop® chain brake, STIHL Quickstop® Plus additional chain braking feature, STIHL reduced kickback bars and STIHL low-kickback saw chains. STIHL recommends the use of green reduced kickback bars and green low kickback chains on all STIHL chainsaws. Note: STIHL recommends use of fuel with no more than 10% Ethanol content. Using fuel with greater than 10% Ethanol content may cause damage to your equipment and may void your STIHL warranty. * The actual listed guide bar length can vary from the effective cutting length based on which powerhead it is installed on. WARNING! Improper use of any power tool may cause serious or fatal injury. Read, understand and follow carefully the operating and safety instructions in your instruction manual before using such products. STIHL products sold through U.S. STIHL Dealers are for distribution in the United States only.

Description

Features:

• Adjustable Automatic Oiler
• The Adjustable Automatic Oiler allows the user to adjust the lubricant of the guide bar and saw chain for different bar lengths and cutting conditions.
• Anti-Vibration System
• STIHL has developed a system for minimizing the vibration levels of handheld outdoor power equipment. The STIHL anti-vibration system helps reduce operator fatigue and provides a more comfortable working experience.
• STIHL ElastoStart™
• The ElastoStart™ starter handle is an exclusive feature of STIHL. It is a starting grip with a built-in shock absorber that helps reduce the effort when pulling on the starter cord. The ElastoStart™ starter grip noticeably reduces the sudden peak forces (compression) normally felt during cranking. The forces which occur at the grip after the first compression stroke are smoothed out.
• Fuel and oil caps with retainers
• The fuel and oil cap retainers keep the caps attached to the unit for added convenience.
• Side-Access Chain Tensioner
• The side-access chain tensioner makes it much more convenient for the user to adjust the saw chain with a bar wrench as opposed to the typical location of the guide bar adjustment screw.
• STIHL Quickstop®
• STIHL chainsaws are equipped with a chain stopping system designed to reduce the risk of injury in certain kickback situations. It is called a STIHL Quickstop® chain brake. The STIHL Quickstop® chain brake is designed to stop the rotation of the chain if activated by the operator’s hand or by inertia if the saw kicks back with sufficient force. In some working positions, the STIHL Quickstop® chain brake can be activated by inertia, stopping the chain within fractions of a second.
• Ematic™ Lubrication System
• The Ematic™ guide bar, when used with STIHL OILOMATIC® saw chain, will provide proper lubrication and less oil consumption than conventional methods. The system works because two ramps, strategically placed in the guide bar rail, help contain the flow of oil and direct all lubrication to the sliding faces of the bar and chain links as well as the rivets and driver holes, which in turn can reduce bar oil consumption up to 50%.
• Decompression Valve
• The decompression valve, also referred to as 'deco' or 'deco valve', vents compression in the cylinder for easier starting. The decompression valve temporarily reduces the compression in the combustion chamber during cranking and helps reduce the effort needed to pull the starter rope. It is opened manually and closes automatically as soon as the engine fires.
• HD2 Air Filter
• The new HD2 air filter on this unit is washable, providing extremely long filter life and lowering maintenance costs. The large surface area allows for longer run times between cleanings and high performance even while operating in dusty and dry conditions. Overall, the HD2 air filter provides better protection of the engine compared to standard air filters.
• The largest most powerful saw in the STIHL lineup
• With its updated engine design and up to 41” guide bar length, the MS 881 is the largest, most powerful chain saw in the STIHL lineup.
• Greater fuel efficiency and reduced exhaust emissions as compared to the previous model
• The MS 881 has the same power as the MS 880 while using less fuel and reducing exhaust emissions, saving time and money while also being better for the environment.
• Efficient stop switch technology
• Efficient stop switch technology saves users time and reduces the chance of flooding the engine when starting.
• Easy manual adjustment of the carburetor settings
• The simplified design of the carburetor allows for easy manual adjustment.

 Specifications:

Engine and Power:

• Power Source: Gasoline
• Engine Power: 8.6 bhp
• Displacement: 7.42 cu. in. (121.6 cc)

Weight and Size:

• Powerhead Weight: 21.8 lbs. (without fuel, bar, or chain)
• Recommended Guide Bar Length: 25 in. (other bar sizes available)

Chain and Bar:

• Chain Type: 3/8" RS3 (Oilomatic® Chain)
• Guide Bar Length (Recommended): 25 in.

Fuel and Oil:

• Fuel Capacity: 44 oz.
• Chain Oil Capacity: 23.7 oz.

Description:

You aren't afraid to take on the largest, toughest, and most demanding jobs, and you need a powerful professional chainsaw you can rely on. For the toughest jobs, you can find the performance you need in the MS 881 MAGNUM® chainsaw. With reduced exhaust emission engine technology, an IntelliCarb™ compensating carburetor, and up to a 41-inch guide bar length, the MS 881 MAGNUM® is the largest, most powerful chainsaw in the STIHL lineup. Great fuel efficiency means you save both time and money. Another time-saving features is the stop switch, which automatically returns to the run position after the engine is stopped, reducing the chance of flooding the engine when starting. There is no substitute for the most powerful production chainsaw currently on the market—the STIHL MS 881 MAGNUM®.

Features:

• Largest, Most Powerful Saw - With its updated engine design and up to 41” guide bar length, the MS 881 is the largest, most powerful chainsaw in the STIHL lineup.
• Greater Fuel Efficiency & Reduced Exhaust Emissions - The MS 881 MAGNUM® has the same power as the previous model while using less fuel and reducing exhaust emissions, saving time and money while also being better for the environment.
• Ematic™ Lubrication System - The Ematic™ guide bar, when used with STIHL OILOMATIC® saw chain, will provide proper lubrication and less oil consumption than conventional methods. The system works because two ramps, strategically placed in the guide bar rail, help contain the flow of oil and direct all lubrication to the sliding faces of the bar and chain links as well as the rivets and driver holes, which in turn can reduce bar oil consumption up to 50%.
• STIHL ElastoStart™ - The ElastoStart™ starter handle is an exclusive feature of STIHL. It is a starting grip with a built-in shock absorber that helps reduce the effort when pulling on the starter cord. The ElastoStart™ starter grip noticeably reduces the sudden peak forces (compression) normally felt during cranking. The forces which occur at the grip after the first compression stroke are smoothed out.
• HD2 Air Filter - The HD2 air filter on this unit is washable, providing extremely long filter life and lowering maintenance costs. The large surface area allows for longer run times between cleanings and high performance even while operating in dusty and dry conditions. Overall, the HD2 air filter provides better protection of the engine compared to standard air filters.
• IntelliCarb™ Compensating Carburetor - The IntelliCarb™ Compensating Carburetor is designed to automatically adjust the air/fuel ratio when the air filter becomes restricted or partially clogged and maintains the engine’s correct RPM. IntelliCarb™ uses air from the clean side of the air filter to control the diaphragm and flow of fuel. As the air filter becomes dirty and less air is available for the carburetor, the IntelliCarb™ system adjusts the fuel flow to compensate for the decrease in air flow. This is in contrast to typical carburetors that utilize this air from the “dirty” side of the air box.
• STIHL Quickstop® - STIHL chainsaws are equipped with a chain stopping system designed to reduce the risk of injury in certain kickback situations. It is called a STIHL Quickstop® chain brake. The STIHL Quickstop® chain brake is designed to stop the rotation of the chain if activated by the operator’s hand or by inertia if the saw kicks back with sufficient force. In some working positions, the STIHL Quickstop® chain brake can be activated by inertia, stopping the chain within fractions of a second.
• Efficient Stop Switch Technology - Efficient stop switch technology saves users time and reduces the chance of flooding the engine when starting.
• Easy Manual Adjustment of the Carburetor Settings - The simplified design of the carburetor allows for easy manual adjustment.
• Bumper Spikes - These spikes prevent pull-in and provide better control, making cutting easier.
• Lightweight Sprocket Cover with Captive Bar Nuts - The sprocket cover is lightweight and the captive bar nuts are held securely in place for efficient saw chain maintenance.
• Adjustable Automatic Oiler - The Adjustable Automatic Oiler allows the user to adjust the lubricant of the guide bar and saw chain for different bar lengths and cutting conditions.
• Decompression Valve - The decompression valve, also referred to as 'deco' or 'deco valve', vents compression in the cylinder for easier starting. The decompression valve temporarily reduces the compression in the combustion chamber during cranking and helps reduce the effort needed to pull the starter rope. It is opened manually and closes automatically as soon as the engine fires.
• Side-Access Chain Tensioner - The side-access chain tensioner makes it much more convenient for the user to adjust the saw chain with a bar wrench as opposed to the typical location of the guide bar adjustment screw.
• Master Control Lever™ - The Master Control Lever™ is an easy to use single lever, operating the choke, starting throttle lock, and on-off switch. The operator must pull the throttle trigger before moving the Master Control Lever™ to the choke position.
• Anti-Vibration System - STIHL has developed a system for minimizing the vibration levels of handheld outdoor power equipment. The STIHL anti-vibration system helps reduce operator fatigue and provides a more comfortable working experience.
• Toolless Fuel and Oil Caps with Retainers - Simply lift the lever and twist the caps to remove or tighten. There’s no need to use a tool to tighten or loosen.
• Throttle Trigger Lockout - This safety feature must be depressed before the trigger can be activated.
• Reduced-Emission Engine Technology—Caring for Nature - The STIHL Inc. “Caring for Nature” seal identifies its powered products that are more environmentally conscious, producing zero or low exhaust emissions. STIHL Inc. defines “low exhaust emissions” as being cleaner than EPA and/or CARB exhaust emission standards.

Specifications:

• Power Source: Gas
• Powerhead Weight: 21.8 lbs
• Guide Bar Length (Recommended): 25 in
• OILOMATIC® Chain: 3/8" RS3
• Chain Oil Capacity: 23.7 oz
• Engine Power: 8.6 bhp
• Fuel Capacity: 44 oz
• Displacement: 121.6 cc
• Intended Use: Professional

Description:

The TS 800 STIHL Cutquik® cut-off machine features a magnesium guard making the machine a full 0.7 pounds lighter than the previous model. The TS 800 features a 16” cutting wheel, the largest size we offer in a handheld design. When used with the optional STIHL Cutquik® Cart, the TS 800 is an excellent alternative to conventional walk behinds because it can be used as a handheld or quickly snapped into our cart for long, straight, controlled cuts. It’s also fuel efficient, with enough power to cut through asphalt, concrete, rebar, iron, and steel with ease.

The TS 800 also features an ergonomic design and five-point advanced vibration control system built right into the handle, maximizing comfort so you can power through your day with less fatigue. When long, straight expansion joint cuts are needed, the optional cart, mounted water tank, guide wheel, and depth gauge wheel make it easy to help keep the cut straight. With a cutting depth of up to 5.6”, the TS 800 is a real pro performer whether in your hands or on the cart.

Features:

• Ergonomic Grip - The ergonomic top-handle bar design provides an optimal comfortable grip in any working position.
• Semi-Automatic Belt Tensioning - With consistent semi-automatic re-tensioning, this feature increases the service life of the belts and shaft bearings
• Anti-Vibration System - STIHL has developed a system for minimizing the vibration levels of handheld outdoor power equipment. The STIHL anti-vibration system helps reduce operator fatigue and provides a more comfortable working experience.
• Bayonet-Style Filler Cap - Includes retainer for easy use, even with gloves on.
• STIHL ElastoStart™ - The ElastoStart™ starter handle is a feature of STIHL. It is a starting grip with a built-in shock absorber that helps reduce the effort when pulling on the starter cord. The ElastoStart™ starter grip noticeably reduces the sudden peak forces (compression) normally felt during cranking. The forces which occur at the grip after the first compression stroke are smoothed out.

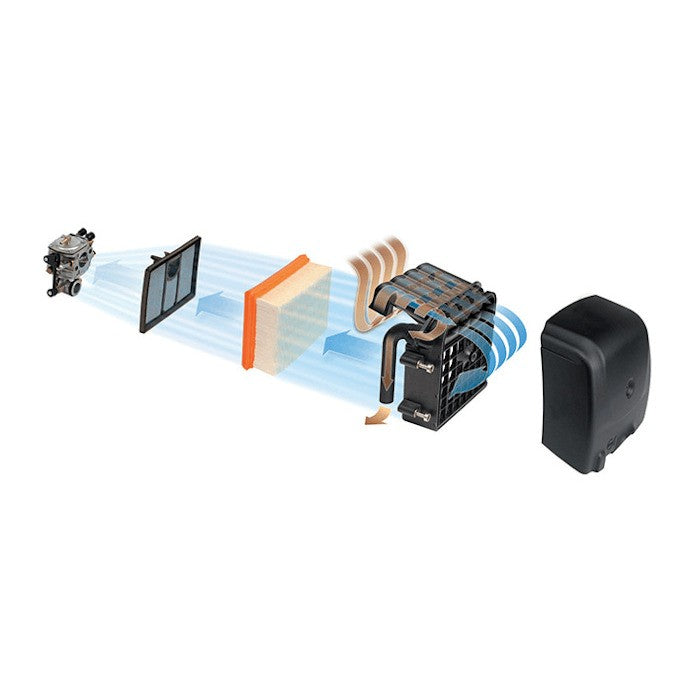

• X2 Air Filtration System - The X2 Air Filtration System revolutionizes the cut-off machine industry by allowing air filters to last up to a year, based on cutting conditions. Outside air enters the system in a swirling motion, removing 80% of dust particles. This pre-cleaned air is then routed through the primary and secondary air filters before being sent into the engine. The X2 Air Filtration System is virtually maintenance free and maintains an incredible 99.96% cleaning efficiency.
• IntelliCarb™ Compensating Carburetor - The IntelliCarb™ Compensating Carburetor is designed to automatically adjust the air/fuel ratio when the air filter becomes restricted or partially clogged and maintains the engine’s correct RPM. IntelliCarb™ uses air from the clean side of the air filter to control the diaphragm and flow of fuel. As the air filter becomes dirty and less air is available for the carburetor, the IntelliCarb™ system adjusts the fuel flow to compensate for the decrease in air flow. This is in contrast to typical carburetors that utilize this air from the “dirty” side of the air box.
• Reduced-Emission Engine Technology—Caring for Nature - The STIHL Inc. “Caring for Nature” seal identifies its powered products that are more environmentally conscious, producing zero or low exhaust emissions. STIHL Inc. defines “low exhaust emissions” as being cleaner than EPA and/or CARB exhaust emission standards.
• Decompression Valve - The decompression valve reduces the compression in the combustion chamber during cranking and helps reduce the effort needed to pull the starter rope.

Specifications:

• Power Source: Gas
• Weight: 28.0 lbs.
• Cutting/Cutting Depth:
• Maximum Cutting Depth: 5.6 inches
• Wheel Size: Maximum 16 inches
• Spindle Speed: Maximum 4,600 rpm
• Arbor Size: 0.79 inches
• Engine:
• Speed: 9,300 rpm
• Power: 6.7 bhp
• Fuel Capacity: 40.6 oz.
• Displacement: 98.5 cc

Description:

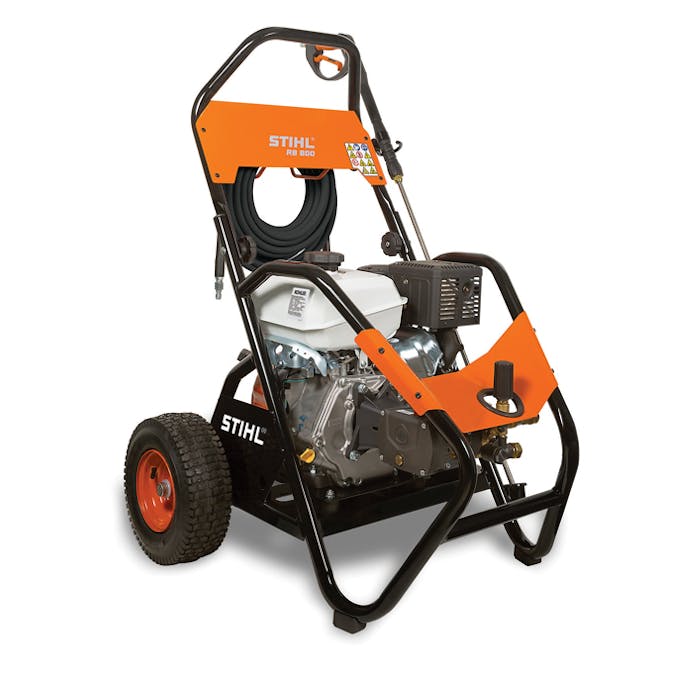

The STIHL® RB 800 is the pressure washer you need if you are looking for professional power and performance. This power washer is the most impressive one in the STIHL® lineup. It is designed for heavy-duty commercial use and can get through tough cleaning jobs. With 4,200 psi of water pressure and a 429 cc engine, the RB 800 cleans up the dirtiest jobs with ease. Its industrial design is made to withstand heavy daily use. Plus, with the Easy2Start™ pump system, you can start the washer without difficulty or back pressure from the pump. This professional pressure washer is designed for convenience and durability, and it can be customized with a full range of optional accessories.

Features:

• Easy2Start™ Pump System - The Easy2Start™ pump system features a pressure relief valve, allowing users to start the unit without any back pressure from the pump. It enables quick, easy starting with no hard cord pulls.
• Cast-Iron Liner - The high-quality cast-iron liner enhances durability and prolongs longevity, making sure the product is built to last.
• Steel-Braided Hose - The steel-braided hose is designed to prevent kinks and bursts.
• Anti-Vibration System - This pressure washer features a STIHL®-engineered four-point vibration isolation system. This reduces pump vibration during use for increased unit longevity.
• Automatic Fuel Shut-Off Valve - This pressure washer features a combined on/off and fuel valve control. This allows the user to shut the unit off and close the fuel valve automatically for easy, no-mess transport.
• Stainless Steel High Pressure & Brass Detergent Nozzles - This pressure washer includes stainless steel nozzles for use with high-pressure water and a brass nozzle for use with detergent. These premium nozzles are designed to resist corrosion and wear.
• Two-Piece Lance & Gun Assembly - This pressure washer features an easy, convenient two-piece lance and gun assembly. The lance design is also extended for better accuracy in tall applications.
• Easy-Access Inlet & Outlet Water Connections - Both inlet (water coming into the pump) and outlet (water going from the pump to the gun) connections are easy to access for faster setup.
• Durable Design - Durable design built with high-quality components.
• Pressure Washer Accessories Ready - From rotating nozzles to water broom and hose extensions, STIHL® has all the pressure washer accessories you might need to make the best out of your power washer.

Specifications:

• Power Source: Gas
• Weight: 168 lbs.
• Water Pressure: 4,200 psi
• Water Flow: 4 gpm
• Cleaning Units: 16,800
• Hose Length: 50 ft.
• Engine Power: 14.0 bhp
• Fuel Capacity: 236.8 oz.
• Displacement: 429.0 cc

Description:

Abrasive cutting just got more cutting edge. STIHL introduces another industry first with the TS 500i STIHL Cutquik® cut-off machine—the first handheld outdoor power tool to offer an electronically controlled fuel-injection system. This system increases power and performance over 15% while remaining lightweight and well-balanced. The fuel injection system makes starting easier and more reliable by eliminating the choke. Just set the switch to on, prime, and pull.

Lightweight, powerful, and fuel-injected, this 14” cut-off machine is designed for superior balance and handling during your toughest jobs. Just like a powerful sports car, you will be impressed with the amazing acceleration of this machine, getting you back to speed faster than you thought possible. The STIHL TS 500i also features a highly-efficient, low exhaust emission engine and optimal torque throughout its RPM range. Its Electronic Water Control (EWC) allows for easy water flow adjustment while cutting, and its X2 air filtration system maintains an incredible 99.96% cleaning efficiency. This machine has it all, so very little can stand in your way.

Features:

• Reduced-Emission Engine Technology—Caring for Nature - The STIHL Inc. “Caring for Nature” seal identifies its powered products that are more environmentally conscious, producing zero or low exhaust emissions. STIHL Inc. defines “low exhaust emissions” as being cleaner than EPA and/or CARB exhaust emission standards.
• Electronic Water Control (EWC) - Electronic Water Control allows the operator to easily adjust the flow of water while cutting and stops the water flow when the machine is at idle.

Specifications:

• Power Source: Gas
• Weight: 22.5 lbs
• Max Cutting Depth: 4.9 inches
• Max Wheel Size: 14 inches
• Max Spindle Speed: 5,350 rpm
• Arbor Size: 0.787 inches
• Engine Speed: 9,000 rpm
• Engine Power: 5.2 bhp
• Fuel Capacity: 24.5 oz
• Displacement: 72.2 cc

Description:

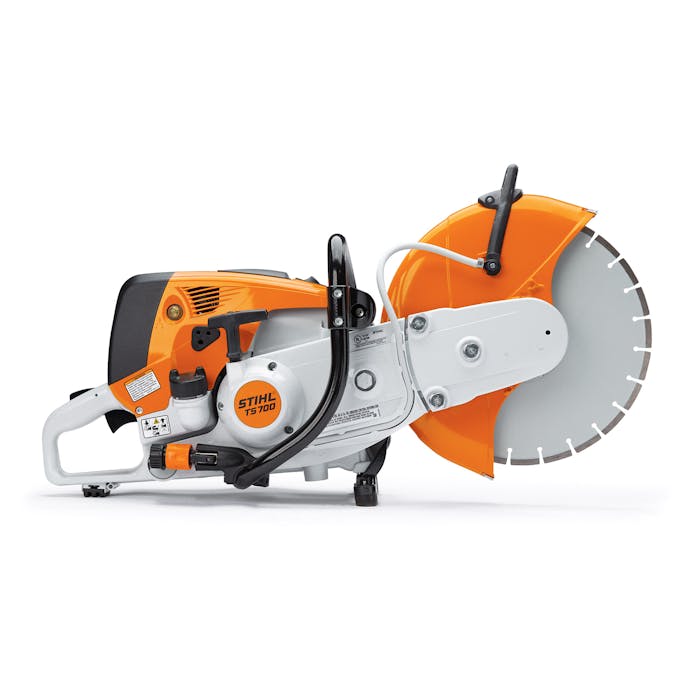

The 14” STIHL TS 700 cut-off machine is the powerhouse of the STIHL line. Designed for superior handling during the toughest jobs, this machine features a powerful, high-speed engine, large fuel capacity, five-point dual element vibration control system built right into the handle and a semi-automatic belt tensioner with an innovative ribbed belt. Its X2 filtration system is low maintenance and cleans airflow with nearly 100 percent efficiency, reducing downtime for filter maintenance. Each component on this machine was meticulously engineered with demanding professionals in mind.

Features:

• Decompression Valve - The decompression valve reduces the compression in the combustion chamber during cranking and helps reduce the effort needed to pull the starter rope.
• Reduced-Emission Engine Technology—Caring for Nature - The STIHL Inc. “Caring for Nature” seal identifies its powered products that are more environmentally conscious, producing zero or low exhaust emissions. STIHL Inc. defines “low exhaust emissions” as being cleaner than EPA and/or CARB exhaust emission standards.
• IntelliCarb™ Compensating Carburetor - The IntelliCarb™ Compensating Carburetor is designed to automatically adjust the air/fuel ratio when the air filter becomes restricted or partially clogged and maintains the engine’s correct RPM. IntelliCarb™ uses air from the clean side of the air filter to control the diaphragm and flow of fuel. As the air filter becomes dirty and less air is available for the carburetor, the IntelliCarb™ system adjusts the fuel flow to compensate for the decrease in air flow. This is in contrast to typical carburetors that utilize this air from the “dirty” side of the air box.
• X2 Air Filtration System - The X2 Air Filtration System revolutionizes the cut-off machine industry by allowing air filters to last up to a year, based on cutting conditions. Outside air enters the system in a swirling motion, removing 80% of dust particles. This pre-cleaned air is then routed through the primary and secondary air filters before being sent into the engine. The X2 Air Filtration System is virtually maintenance free and maintains an incredible 99.96% cleaning efficiency.
• STIHL ElastoStart™ - The ElastoStart™ starter handle is a feature of STIHL. It is a starting grip with a built-in shock absorber that helps reduce the effort when pulling on the starter cord. The ElastoStart™ starter grip noticeably reduces the sudden peak forces (compression) normally felt during cranking. The forces which occur at the grip after the first compression stroke are smoothed out.
• Bayonet-Style Filler Cap - Includes retainer for easy use, even with gloves on.
• Anti-Vibration System - STIHL has developed a system for minimizing the vibration levels of handheld outdoor power equipment. The STIHL anti-vibration system helps reduce operator fatigue and provides a more comfortable working experience.
• Semi-Automatic Belt Tensioning - With consistent semi-automatic re-tensioning, this feature increases the service life of the belts and shaft bearings
• Ergonomic Grip - The ergonomic top-handle bar design provides an optimal comfortable grip in any working position.

Specifications:

• Power Source: Gas
• Weight: 25.6 lbs.
• Maximum Cutting Depth: 4.9 in.
• Maximum Wheel Size: 14 in.
• Maximum Spindle Speed: 5,350 rpm
• Arbor Size: 0.787 in.
• Engine Speed: 9,300 rpm
• Engine Power: 6.7 bhp
• Fuel Capacity: 40.6 oz.
• Displacement: 98.5 cc

Description:

The STIHL MS 500i is a groundbreaking chainsaw designed exclusively for forestry personnel and tree service professionals. It is the world's first chainsaw with electronically controlled fuel injection, delivering precise fuel metering for optimal performance. With its exceptional power-to-weight ratio, the MS 500i is ideal for tree felling, bucking, and delimbing operations. Equipped with innovative technology and durable construction, this chainsaw is a testament to STIHL's commitment to excellence in engineering and design.

Features:

• Sensor-Controlled Fuel Metering: Delivers precise fuel amount for efficient operation.
• Quick Acceleration: Rapid acceleration ensures excellent cutting performance.
• New Generation MDG 1 Diagnostic Software: Allows quick identification of service needs.
• Quarter Turn Lock on the Air Filter Shroud: Provides easy access for quick maintenance.
• Simplified Starting Procedure: Reduces starting time and minimizes engine flooding.
• HD2 Air Filter: Washable filter with extended lifespan and superior protection.
• High Power-to-Weight Ratio: Minimizes fatigue while maximizing productivity.
• STIHL ElastoStart™: Reduces starting effort with built-in shock absorber.
• Ematic™ Lubrication System: Ensures proper lubrication with reduced oil consumption.
• STIHL Quickstop®: Stops chain rotation to enhance safety in kickback situations.
• Lightweight Sprocket Cover with Captive Bar Nuts: Facilitates efficient maintenance.
• High Output Adjustable Oiler: Provides additional lubrication for longer guide bars and challenging conditions.
• Purge Pump Primer: Enables easy carburetor priming for effortless starting.
• Unique Bumper Spike Design: Ensures optimal performance across tree species.
• Decompression Valve: Reduces starting effort by lowering compression during cranking.
• Translucent Fuel Tank: Allows easy monitoring of fuel level.
• Side-Access Chain Tensioner: Convenient tension adjustment without disassembly.
• Master Control Lever™: Single lever operation for choke, throttle lock, and on-off switch.
• Anti-Vibration System: Minimizes operator fatigue for comfortable extended use.
• Toolless Fuel and Oil Caps with Retainers: Quick and easy cap operation without tools.
• Throttle Trigger Lock: Enhances safety by preventing accidental trigger activation.

Specifications:

• Power Source: Gas
• Powerhead Weight: 13.9 lbs.
• Guide Bar Length (Recommended): 25 inches
• OILOMATIC® Chain: 3/8" RS3
• Chain Oil Capacity: 11 oz.
• Engine Power: 6.7 bhp
• Displacement: 79.2 cc
• Fuel Capacity: 26.5 oz.

Description:

Designed and built exclusively for forestry personnel and tree service professionals, the MS 500i is the first ever chainsaw on the worldwide market with electronically controlled fuel injection. With its excellent power-to-weight ratio, this saw is an impressive piece of equipment for pros looking to take on tree felling, bucking, or delimbing operations. Thanks to its unique fuel injection system, the MS 500i delivers rapid acceleration. Combining innovative technology with world-class engineering and durable construction, the MS 500i is another great addition to the long line of legendary STIHL chainsaws.

Features:

• Sensor-Controlled Fuel Metering - Sensor-controlled fuel metering delivers the right amount of fuel.
• Quick Acceleration - Quick acceleration helps deliver excellent cutting performance.
• New Generation MDG 1 Diagnostic Software - This product's diagnostic software allows dealers to quickly identify what service might be needed.
• Quarter Turn Lock on the Air Filter Shroud - The quarter-turn shroud lock provides quick access, so users can quickly and efficiently service the chain saw with minimal down time on the job.
• Simplified Starting Procedure - Saves the user time and reduces the chance of flooding the engine when starting.
• HD2 Air Filter - The HD2 air filter on this unit is washable, providing extremely long filter life and lowering maintenance costs. The large surface area allows for longer run times between cleanings and high performance even while operating in dusty and dry conditions. Overall, the HD2 air filter provides better protection of the engine compared to standard air filters.
• High Power-to-Weight Ratio - This feature allows users to get more done by minimizing fatigue.
• STIHL ElastoStart™ - The ElastoStart™ starter handle is an exclusive feature of STIHL. It is a starting grip with a built-in shock absorber that helps reduce the effort when pulling on the starter cord. The ElastoStart™ starter grip noticeably reduces the sudden peak forces (compression) normally felt during cranking. The forces which occur at the grip after the first compression stroke are smoothed out.
• Ematic™ Lubrication System - The Ematic™ guide bar, when used with STIHL OILOMATIC® saw chain, will provide proper lubrication and less oil consumption than conventional methods. The system works because two ramps, strategically placed in the guide bar rail, help contain the flow of oil and direct all lubrication to the sliding faces of the bar and chain links as well as the rivets and driver holes, which in turn can reduce bar oil consumption up to 50%.
• STIHL Quickstop® - STIHL chainsaws are equipped with a chain stopping system designed to reduce the risk of injury in certain kickback situations. It is called a STIHL Quickstop® chain brake. The STIHL Quickstop® chain brake is designed to stop the rotation of the chain if activated by the operator’s hand or by inertia if the saw kicks back with sufficient force. In some working positions, the STIHL Quickstop® chain brake can be activated by inertia, stopping the chain within fractions of a second.
• Lightweight Sprocket Cover with Captive Bar Nuts - The sprocket cover is lightweight and the captive bar nuts are held securely in place for efficient saw chain maintenance.
• High Output Adjustable Oiler - When used with STIHL OILOMATIC ® saw chain and STIHL Ematic ™ guide bars, the high output oiler can supply additional lubrication if needed for longer guide bars and/or dry/dusty cutting conditions.
• Purge Pump Primer - The purge pump primer feature enables the user to prime the carburetor with fuel, enabling easier starting. The purge pump primer is designed in a way that the operator cannot flood the machine by priming the carburetor too many times. Flooding the engine is still possible if the choke is not removed after the engine turns over.
• Unique Bumper Spike Design - Unique bumper spike design ensures pros can expect optimal performance regardless of what species of tree they're cutting.
• Decompression Valve - The decompression valve reduces the compression in the combustion chamber during cranking and helps reduce the effort needed to pull the starter rope.
• Translucent Fuel Tank - The semi-transparency allows operators to easily check the fuel level before starting work.
• Side-Access Chain Tensioner - The side-access chain tensioner makes it much more convenient for the user to adjust the saw chain with a bar wrench as opposed to the typical location of the guide bar adjustment screw.
• Master Control Lever™ - The Master Control Lever™ is an easy to use single lever, operating the choke, starting throttle lock, and on-off switch. The operator must pull the throttle trigger before moving the Master Control Lever™ to the choke position.
• Anti-Vibration System - STIHL has developed a system for minimizing the vibration levels of handheld outdoor power equipment. The STIHL anti-vibration system helps reduce operator fatigue and provides a more comfortable working experience.
• Toolless Fuel and Oil Caps with Retainers - Simply lift the lever and twist the caps to remove or tighten. There’s no need to use a tool to tighten or loosen.
• Throttle Trigger Lock - See it in action!

Specification:

• Power Source:
• Power Source: Gas
• Powerhead:
• Powerhead Weight: 13.9 lbs.
• Cutting:
• Guide Bar Length (Recommended): 25 in.
• OILOMATIC® Chain: 3/8" RS3
• Chain Oil Capacity: 11 oz.
• Engine:
• Engine Power: 6.7 bhp
• Displacement: 79.2 cc
• Fuel:
• Fuel Capacity: 26.5 oz.

Description:

• High-performance petrol saw for even the toughest jobs
• For professional hardwood forestry
• Easy starting and optimised engine performance with STIHL M-Tronic
• Technical data'

Specification:

Bar Length:

• Bar Length: 71-90 cm
• Bar Length: 28-36 "

Displacement:

• Displacement: 91 cm³
• Displacement: 6 cu-in

Power Output:

• Power Output: 5.4/7.3 kW/HP

Description:

The STIHL RM 655 YS offers dependable performance with infinite speed adjustment. The hydrostatic gearbox provides a wider range of ground speeds to reduce operator fatigue and increase productivity. Featuring a polymer grass bag, mulching functionality, and easy height adjustment, this mower is ideal for the homeowner who wants to get the job done quickly.

Features

Hydrostatic Gearbox (Y)

• The hydrostatic gearbox provides a wider range of ground speeds to reduce operator fatigue and increase productivity.

Aluminum Mowing Deck

• The corrosion-resistant aluminum mowing deck is optimized for airflow without the added weight.

Spring-Assisted Single Point Height Adjustment

• Each mower features seven cutting heights adjusted from a single location.

Rubberized Soft Touch Handle

• Soft rubber texture is both easy to grip and makes the product comfortable to hold for extended periods.

Ball Bearing Wheels

• The sealed ball bearing wheels are designed for long life.

Blade Brake Clutch (BBC)

• Allows the user to leave the engine running and disengage the multiblade to remove objects in the mowing path without having to stop and restart the engine during brief stops.

Specifications

• Drive Type: Hydrostatic
• Deck Material: Aluminum
• Mulch Function: Plug
• Cutting Height: 0.98 – 3.35 in.
• Cutting Height Options: Seven-level central cut-height
• Power Source: Gas
• Weight: 123.5 lbs
• Deck Width: 21 in.
• Cutting Width: 20.87 in.
• Number of Blades: 1 — Multiblade
• Mowing Blade Speed: 2,800 rpm
• Self-Propelled: Yes
• Engine Brand: Kohler HD Series™
• Engine Model: HD775 OHV
• Displacement: 173 cc
• Rated Power: 7.46 lbs. ft. torque
• Speeds: 0 – 3.91 mph
• Grass Catcher Capacity: 18.5 gal.
• Blade Brake Clutch: Yes

Description:

Offers reliable power and is designed exclusively for fire, rescue, and emergency service personnel.

Designed exclusively for specially trained fire, rescue, and emergency personnel, the STIHL MS 462 R C-M Rescue features the remarkable OILOMATIC® STIHL RAPID™ Duro Rescue Chain (RDR) capable of cutting through glass, sheet metal, roofing, wood, and a wide variety of other materials encountered during rescue operations. The STIHL 462 R C-M Rescue is lighter, has significantly less vibration, and features improved chain oil capacity. A depth limiter allows for rapid depth-controlled cutting for the toughest of applications such as roof venting and technical entry, while a muffler guard plate limits the amount of debris on the muffler. The extra-large starter handle enables easier starting while wearing large protective gloves. When seconds count, professional emergency personnel count on STIHL.

FEATURES

• MASTER CONTROL LEVER™: The Master Control Lever™ is an easy to use single lever, operating the choke, starting throttle lock and on-off switch. The operator must pull the throttle trigger before moving the Master Control Lever™ to the choke position.
• EMATIC™ LUBRICATION SYSTEM: The Ematic™ guide bar, when used with STIHL OILOMATIC® saw chain, will provide proper lubrication and less oil consumption than conventional methods. The system works because two ramps, strategically placed in the guide bar rail, help contain the flow of oil and direct all lubrication to the sliding faces of the bar and chain links as well as the rivets and driver holes, which in turn can reduce bar oil consumption up to 50%.
• WRAP HANDLE (R): Saw can be used in multiple positions for felling or limbing with hands in the proper positions.
• SIDE-ACCESS CHAIN TENSIONER: The side-access chain tensioner makes it much more convenient for the user to adjust the saw chain with a bar wrench as opposed to the typical location of the guide bar adjustment screw.
• STIHL ELASTOSTART™: The ElastoStart™ starter handle is an exclusive feature of STIHL. It is a starting grip with a built-in shock absorber that helps reduce the effort when pulling on the starter cord. The ElastoStart™ starter grip noticeably reduces the sudden peak forces (compression) normally felt during cranking. The forces which occur at the grip after the first compression stroke are smoothed out.
• REDUCED-EMISSION ENGINE TECHNOLOGY - CARING FOR NATURE: The STIHL Inc. “Caring for Nature” seal identifies its powered products that are more environmentally conscious, producing zero or low exhaust emissions. STIHL Inc. defines “low exhaust emissions” as being cleaner than EPA and/or CARB exhaust emission standards.
• ANTI-VIBRATION SYSTEM: STIHL has developed a system for minimizing the vibration levels of handheld outdoor power equipment. The STIHL anti-vibration system helps reduce operator fatigue and provides a more comfortable working experience.
• ADJUSTABLE AUTOMATIC OILER: The Adjustable Automatic Oiler allows the user to adjust the lubricant of the guide bar and saw chain for different bar lengths and cutting conditions.
• DECOMPRESSION VALVE: The decompression valve, also referred to as 'deco' or 'deco valve', vents compression in the cylinder for easier starting. The decompression valve temporarily reduces the compression in the combustion chamber during cranking and helps reduce the effort needed to pull the starter rope. It is opened manually and closes automatically as soon as the engine fires.

Specifications:

Dimensions

• Weight (Powerhead): 14.3 lb (6.5 kg)

Engine

• Power Source: Gasoline
• Horsepower: 5.9 bhp
• Displacement: 72.2 cc
• Fuel Tank Capacity: 24.3 oz
• Oil Capacity (Chain): 11.5 oz

Operational

• Chain: OILOMATIC® 3/8 in. 36RDR Rescue Chain
• Pitch: 3/8 in.
• Gauge: 0.063 in.
• Guide Bar Length (Recommended): 20 in. (50 cm) 9421

Description;

When professionals need to fell large trees, in large quantities, they reach for the saw they know has the power to get the job done —the MS 661 C-M. Featuring an impressive power-to-weight ratio and STIHL M-Tronic™ engine management technology, the MS 661 C-M chainsaw also delivers less vibration and 20% greater fuel efficiency than the previous model. Other features include a long-life filter system using HD-2 filter elements to provide longer run times between maintenance, an ElastoStart™ handle, and a high output adjustable oiler.

Features:

• STIHL M-Tronic™ - This product features M-Tronic™ (M) - a new generation of Intelligent Engine Management that eliminates the low and high speed carburetor adjustment screws, compensates for dirty air filter and changes in elevation and fuel quality for optimum engine power at all times.
• Ematic™ Lubrication System - The Ematic™ guide bar, when used with STIHL OILOMATIC® saw chain, will provide proper lubrication and less oil consumption than conventional methods. The system works because two ramps, strategically placed in the guide bar rail, help contain the flow of oil and direct all lubrication to the sliding faces of the bar and chain links as well as the rivets and driver holes, which in turn can reduce bar oil consumption up to 50%.
• STIHL ElastoStart™ - The ElastoStart™ starter handle is an exclusive feature of STIHL. It is a starting grip with a built-in shock absorber that helps reduce the effort when pulling on the starter cord. The ElastoStart™ starter grip noticeably reduces the sudden peak forces (compression) normally felt during cranking. The forces which occur at the grip after the first compression stroke are smoothed out.
• IntelliCarb™ Compensating Carburetor - The IntelliCarb™ Compensating Carburetor is designed to automatically adjust the air/fuel ratio when the air filter becomes restricted or partially clogged and maintains the engine’s correct RPM. IntelliCarb™ uses air from the clean side of the air filter to control the diaphragm and flow of fuel. As the air filter becomes dirty and less air is available for the carburetor, the IntelliCarb™ system adjusts the fuel flow to compensate for the decrease in air flow. This is in contrast to typical carburetors that utilize this air from the “dirty” side of the air box.
• STIHL Quickstop® - STIHL chainsaws are equipped with a chain stopping system designed to reduce the risk of injury in certain kickback situations. It is called a STIHL Quickstop® chain brake. The STIHL Quickstop® chain brake is designed to stop the rotation of the chain if activated by the operator’s hand or by inertia if the saw kicks back with sufficient force. In some working positions, the STIHL Quickstop® chain brake can be activated by inertia, stopping the chain within fractions of a second.
• HD2 Air Filter - The HD2 air filter on this unit is washable, providing extremely long filter life and lowering maintenance costs. The large surface area allows for longer run times between cleanings and high performance even while operating in dusty and dry conditions. Overall, the HD2 air filter provides better protection of the engine compared to standard air filters.
• Bumper Spikes - These spikes prevent pull-in and provide better control, making cutting easier.
• Adjustable Automatic Oiler - The Adjustable Automatic Oiler allows the user to adjust the lubricant of the guide bar and saw chain for different bar lengths and cutting conditions.
• Decompression Valve - The decompression valve, also referred to as 'deco' or 'deco valve', vents compression in the cylinder for easier starting. The decompression valve temporarily reduces the compression in the combustion chamber during cranking and helps reduce the effort needed to pull the starter rope. It is opened manually and closes automatically as soon as the engine fires.
• Lightweight Sprocket Cover with Captive Bar Nuts - The sprocket cover is lightweight and the captive bar nuts are held securely in place for efficient saw chain maintenance.
• Side-Access Chain Tensioner - The side-access chain tensioner makes it much more convenient for the user to adjust the saw chain with a bar wrench as opposed to the typical location of the guide bar adjustment screw.
• Master Control Lever™ - The Master Control Lever™ is an easy to use single lever, operating the choke, starting throttle lock, and on-off switch. The operator must pull the throttle trigger before moving the Master Control Lever™ to the choke position.
• Anti-Vibration System - STIHL has developed a system for minimizing the vibration levels of handheld outdoor power equipment. The STIHL anti-vibration system helps reduce operator fatigue and provides a more comfortable working experience.
• Toolless Fuel and Oil Caps with Retainers - Simply lift the lever and twist the caps to remove or tighten. There’s no need to use a tool to tighten or loosen.
• Throttle Trigger Lockout - This safety feature must be depressed before the trigger can be activated.
• Reduced-Emission Engine Technology—Caring for Nature - The STIHL Inc. “Caring for Nature” seal identifies its powered products that are more environmentally conscious, producing zero or low exhaust emissions. STIHL Inc. defines “low exhaust emissions” as being cleaner than EPA and/or CARB exhaust emission standards.

Specification:

• Power Source: Gas
• Powerhead Weight: 16.5 lbs
• Guide Bar Length (Recommended): 25 in
• OILOMATIC® Chain: 3/8" RS3
• Chain Oil Capacity: 13.5 oz
• Engine Power: 7.2 bhp
• Fuel Capacity: 28.7 oz
• Displacement: 91.1 cc
• Intended Use: Professional

Description:

Versatile enough for general construction applications, but well suited for limited access cuts, the TS 440 represents the latest in professional cutting solutions from STIHL. The extended guard adjustment range of the TS 440 allows greater access in challenging cuts such as the bottom portions of walls, cutting in corners, and cutting the underside of in-ground pipes. This expanded guard adjustability is made possible due to the sensor-activated STIHL Quickstop® wheel brake technology. The TS 440 is the first cut-off machine in the world equipped with the technology capable of stopping the rotation of the cutting wheel in fractions of a second if kickback occurs.

Features:

• Reduced-Emission Engine Technology—Caring for Nature - The STIHL Inc. “Caring for Nature” seal identifies its powered products that are more environmentally conscious, producing zero or low exhaust emissions. STIHL Inc. defines “low exhaust emissions” as being cleaner than EPA and/or CARB exhaust emission standards.
• Bayonet-Style Filler Cap - Includes retainer for easy use, even with gloves on.
• Anti-Vibration System - STIHL has developed a system for minimizing the vibration levels of handheld outdoor power equipment. The STIHL anti-vibration system helps reduce operator fatigue and provides a more comfortable working experience.
• STIHL ElastoStart™ - The ElastoStart™ starter handle is a feature of STIHL. It is a starting grip with a built-in shock absorber that helps reduce the effort when pulling on the starter cord. The ElastoStart™ starter grip noticeably reduces the sudden peak forces (compression) normally felt during cranking. The forces which occur at the grip after the first compression stroke are smoothed out.
• Water Connection - Water connection with shut-off valve and quick connector.
• STIHL QuickStop™ Wheel Brake - Allows extended guard adjustability by reducing the risk of injury from kickback when the guard has been adjusted to expose the top portion of the wheel
• Wheel Guard - Extended wheel guard adjustability range increases utility of machine for certain cutting circumstance
• Choke Lever and Purge Pump Primer - Conveniently located together for easier starting.
• Ergonomic Grip - The ergonomic top-handle bar design provides an optimal comfortable grip in any working position.
• Electronic Water Control (EWC) - Electronic Water Control allows the operator to easily adjust the flow of water while cutting and stops the water flow when the machine is at idle.
• IntelliCarb™ Compensating Carburetor - The IntelliCarb™ Compensating Carburetor is designed to automatically adjust the air/fuel ratio when the air filter becomes restricted or partially clogged and maintains the engine’s correct RPM. IntelliCarb™ uses air from the clean side of the air filter to control the diaphragm and flow of fuel. As the air filter becomes dirty and less air is available for the carburetor, the IntelliCarb™ system adjusts the fuel flow to compensate for the decrease in air flow. This is in contrast to typical carburetors that utilize this air from the “dirty” side of the air box.
• X2 Air Filtration System - The X2 Air Filtration System revolutionizes the cut-off machine industry by allowing air filters to last up to a year, based on cutting conditions. Outside air enters the system in a swirling motion, removing 80% of dust particles. This pre-cleaned air is then routed through the primary and secondary air filters before being sent into the engine. The X2 Air Filtration System is virtually maintenance free and maintains an incredible 99.96% cleaning efficiency.

Specifications:

• Power Source: Gas
• Weight: 24.7 lbs.
• Maximum Cutting Depth: 4.9 in.
• Maximum Wheel Size: 14 in.
• Maximum Spindle Speed: 2,525 rpm
• Arbor Size: 0.79 in.
• Engine Speed: 9,000 rpm
• Engine Power: 4.4 bhp
• Fuel Capacity: 24 oz.
• Displacement: 66.7 cc

Product Overview

Meet your ideal business partner, the STIHL MS 462 C-M chainsaw. The STIHL MS 462 C-M was specially engineered for the pro user who desires more power with less weight and thus less user fatigue from their chainsaw in daily forestry work. At just 13 pounds, the MS 462 C-M is the lightest-ever STIHL chainsaw produced in its fuel-powered class. It features an excellent power-to-weight ratio for added maneuverability tested by professionals in the field. The next generation STIHL M-Tronic engine management system electronically controls ignition timing and fuel metering. Conveniently, the saw auto-adjusts for changes in its operating environment, such as changes in altitude and fuel quality for optimal performance.

The ElastoStart starter grip noticeably reduces the sudden peak forces (compression) normally felt during cranking

The forces which occur at the grip after the first compression stroke are smoothed out

A new generation of intelligent engine management that eliminates the low and high speed carburetor adjustment screws

The STIHL anti-vibration system helps reduce operator fatigue and provides a more comfortable working experience

The adjustable automatic oiler allows the user to adjust the lubricant of the guide bar and saw chain for different bar lengths and cutting conditions

Zero or low exhaust emissions

The STIHL Quickstop chain brake is designed to stop the rotation of the chain if activated by the operators hand or by inertia if the saw kicks back with sufficient force

The side-access chain tensioner makes it much more convenient for the user to adjust the saw chain with a bar wrench as opposed to the typical location of the guide bar adjustment screw

Specifications

• Brand Name:STIHL
• Product Type: Chainsaw
• Bar Length: 25 inch
• Brand Name: STIHL
• CARB Compliant: Yes
• CSA LIsted: No
• Case Included: No
• Chain Brake: Yes
• Chainsaw Type: Chainsaw
• Engine Displacement: 72.2 cubic centimetre
• Engine Type: 2-Cycle
• Model Number: MS 462 C-M
• Start Type: Pull Start
• Tension Adjustment Type: Manual
• Warranty: 1 Year
• Powered By: Gas
• Product Grade: Professional

Description:

Meet your ideal business partner—the STIHL MS 462 C-M chainsaw—specially engineered for the professional who desires more power with less weight. At just over 13 pounds, the MS 462 C-M is the lightest-ever STIHL chainsaw produced in its fuel-powered class and thus reduces the fatigue you experience in daily forestry work. It features an excellent power-to-weight ratio for added maneuverability tested by professionals in the field. The next generation STIHL M-Tronic™ engine management system electronically controls ignition timing and fuel metering. Conveniently, the saw auto-adjusts for changes in its operating environment, such as changes in altitude and fuel quality, for optimal performance. As an added measure to reduce vibration and user fatigue, the anti-vibration system is designed for good handling when the MS 462 C-M is equipped with longer guide bars.

Features:

• STIHL M-Tronic™ - This product features M-Tronic™ (M) - a new generation of Intelligent Engine Management that eliminates the low and high speed carburetor adjustment screws, compensates for dirty air filter and changes in elevation and fuel quality for optimum engine power at all times.
• STIHL ElastoStart™ - The ElastoStart™ starter handle is an exclusive feature of STIHL. It is a starting grip with a built-in shock absorber that helps reduce the effort when pulling on the starter cord. The ElastoStart™ starter grip noticeably reduces the sudden peak forces (compression) normally felt during cranking. The forces which occur at the grip after the first compression stroke are smoothed out.
• Ematic™ Lubrication System - The Ematic™ guide bar, when used with STIHL OILOMATIC® saw chain, will provide proper lubrication and less oil consumption than conventional methods. The system works because two ramps, strategically placed in the guide bar rail, help contain the flow of oil and direct all lubrication to the sliding faces of the bar and chain links as well as the rivets and driver holes, which in turn can reduce bar oil consumption up to 50%.
• STIHL Quickstop® - STIHL chainsaws are equipped with a chain stopping system designed to reduce the risk of injury in certain kickback situations. It is called a STIHL Quickstop® chain brake. The STIHL Quickstop® chain brake is designed to stop the rotation of the chain if activated by the operator’s hand or by inertia if the saw kicks back with sufficient force. In some working positions, the STIHL Quickstop® chain brake can be activated by inertia, stopping the chain within fractions of a second.
• Lightweight Portability - This product is lightweight for easy portability, great maneuverability, and extended use.
• Adjustable Automatic Oiler - The Adjustable Automatic Oiler allows the user to adjust the lubricant of the guide bar and saw chain for different bar lengths and cutting conditions.
• Winter/Summer Shutter - The Winter/Summer Shutter allows the carburetor to operate at optimum temperature year-round and helps to prevent carburetor icing when working below 50°F (10°C).
• Bumper Spikes - These spikes prevent pull-in and provide better control, making cutting easier.
• Decompression Valve - The decompression valve, also referred to as 'deco' or 'deco valve', vents compression in the cylinder for easier starting. The decompression valve temporarily reduces the compression in the combustion chamber during cranking and helps reduce the effort needed to pull the starter rope. It is opened manually and closes automatically as soon as the engine fires.
• Pre-Separation Air Filtration System - This time-saving technology boosts the efficiency of the engine’s filter system, doubling the time between air filter cleanings. Air drawn into the engine is first separated via centrifugal force, ejecting the heavier dirt particles before being routed to the air filter. This pre-separation means less dirt to be captured by the air filter, resulting in less frequent cleaning and maintenance.
• Side-Access Chain Tensioner - The side-access chain tensioner makes it much more convenient for the user to adjust the saw chain with a bar wrench as opposed to the typical location of the guide bar adjustment screw.
• Master Control Lever™ - The Master Control Lever™ is an easy to use single lever, operating the choke, starting throttle lock, and on-off switch. The operator must pull the throttle trigger before moving the Master Control Lever™ to the choke position.
• Anti-Vibration System - STIHL has developed a system for minimizing the vibration levels of handheld outdoor power equipment. The STIHL anti-vibration system helps reduce operator fatigue and provides a more comfortable working experience.
• Toolless Fuel and Oil Caps with Retainers - Simply lift the lever and twist the caps to remove or tighten. There’s no need to use a tool to tighten or loosen.
• Throttle Trigger Lock - See it in action!
• Reduced-Emission Engine Technology—Caring for Nature - The STIHL Inc. “Caring for Nature” seal identifies its powered products that are more environmentally conscious, producing zero or low exhaust emissions. STIHL Inc. defines “low exhaust emissions” as being cleaner than EPA and/or CARB exhaust emission standards.

Specifications:

Dimensions

• Weight (Powerhead): 13.2 lb

Engine

• Power Source: Gasoline
• Horsepower: 5.9 bhp
• Displacement: 72.2 cc
• Fuel Tank Capacity: 24.3 oz
• Oil Capacity (Chain): 11.5 oz

Operational

• Chain: OILOMATIC® 3/8 in. 33 RS
• Pitch: 3/8 in.
• Gauge: 0.050 in.
• Guide Bar Length: 20 in. (8822)
