Description:

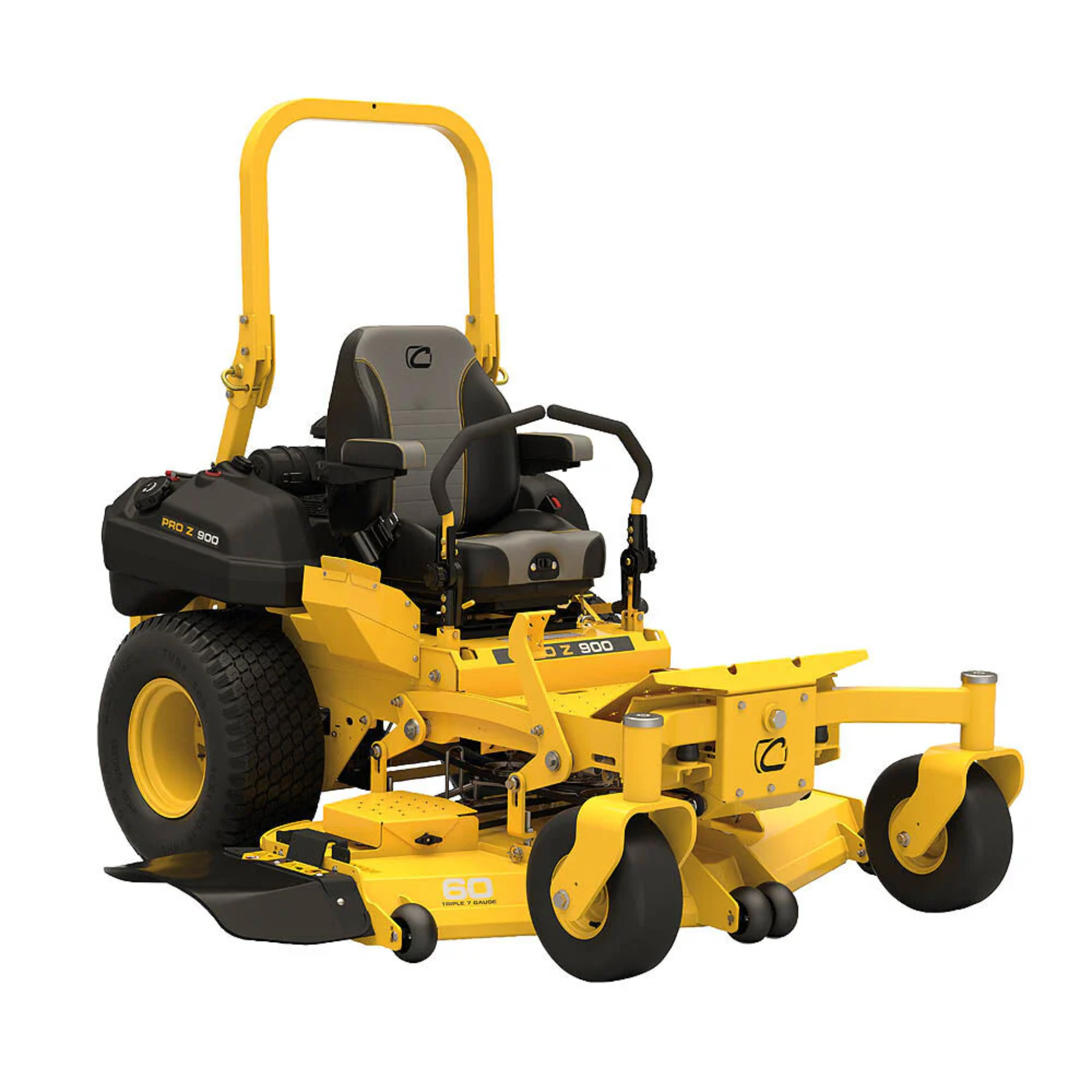

The Cub Cadet Pro Z 960L KW features a 60-inch, fabricated deck with a Kawasaki FX Series V-Twin engine. This model features a pedal-assisted lift for the cutting deck, allowing the operator to quickly and easily adjust the deck height between sixteen different heights. Dual 7.5 gallon fuel tanks provide all-day mowing capabilities without the need to refuel often.

Features:

• 35HP/999cc Kawasaki FX1000V Series V-Twin Engine
• 60-inch, 3-blade fabricated deck
• 16cc Parker HTG series pump with 310cc wheel motor
• Dual 7.5 gallon fuel capacity
• Ground speed: 14 mph forward/6 mph reverse
• Front wheels: 15 x 6 in - 6 in
• Rear wheels: 26 x 12 in - 12 in
• 3-year no-hour-limit warranty
• Model: 53TIHMTV050

Specification:

ENGINE

• Engine Brand: Kawasaki®
• Engine Model: FX Series
• Engine Model Number: 1000V
• Engine Displacement: 999cc
• Engine Output: 35HP
• Fuel Tank Capacity: Dual 7.45 gal. US (28.2 L)
• Cylinders: Twin
• Engine Start: Ignition Key
• Engine Oil Capacity: 2.0 qt. US (1.89 L)
• Lubrication: Fully pressurized
• Charging System: 15 amp regulated
• Fuel Gauge: Electronic
• Choke: Separate Choke
• Air Filter: High Density
• Oil Filter: Yes
• Fuel Delivery: Carburetor

DRIVE SYSTEM

• Transmission: Parker HTG 16cc pump / 310cc wheel motor
• Forward Speed: 14 mph / 22.5 km/h
• Reverse Speed: 6 mph / 9.5 km/h

CUTTING DECK

• Deck Cutting Width: 60 in
• Deck Material: fabricated 7ga. (.187") steel shell
• Deck Engagement (PTO): electronic fingertip engagement pto
• Deck Construction: 7ga. top plate 7ga. bottom reinforcement 1/4" rolled leading edge
• Spindle Construction: 8" sealed cast aluminum housing (maintenance-free)
• Blade(s): Triple-blade / High-lift blade (standard) Marbain Blade
• Cutting Height Range: 1" to 5" in 1/4" increments
• Anti-Scalping: 2 front deck gauge wheels
• Deck Positions: Foot pedal with spring assist, 16 Positions

WARRANTY

• Warranty: 3 year / no hour limit commercial warranty and 5 year / 1,750 hour limited deck construction warranty
• Deck Shell Warranty: 5 year / 1,750 hour limited deck construction warranty
• Commercial Warranty: 3 year / no hour limit commercial warranty

CHASSIS

• Frame: Fully welded, full-length 3/8 x 5" laser cut steel / integrated tie-down slots
• Front Axle: 2" x 3" solid axle tube with ISO dampening suspension
• ROPS: 2" x 2" spring-latch tool-less foldable 3 position
• Bumper: 5/16" Thick Steel rear engine guard/pre-drilled mounting points for attachments with integrated rear hitch
• Yokes: 1/2" thick steel front yokes

CONTROLS

• Cruise Control: NA
• Brakes: Hand-operated lever with integrated hydro pump release lever
• Steering Control: High Performance & Speed Control

COMFORT

• Seat Type: Cushion with seat belts
• Armrests: Padded arm rests
• Seat Suspension: High-back Air-Ride suspension with EVC cushion, ISO mounted base (lateral suspension)
• Seat Adjustment: Angle back adjust and lumbar support

WHEELS

• Rear Tires: 26"x12"-12"
• Front Tires: 15"x6"-6"Reliance Carlisle run flat
• Tire Tread: Turf Tread

DIMENSIONS

• Dimensions L/W/H: 86" L x 74" W x 52" H
• Weight (approx.): 1591 lb.

ADDITIONAL SPECIFICATIONS

• Hour Meter: Crew Boss
• Discharge Chute: High-density, impact-resistant rubber
• Cup Holder: Intergrated into Side Pod
• Model Number: 53TIHMTV050

DISCLAIMER

• Specifications Disclaimer: Specifications subject to change without notice and without incurring obligation. Products depicted on website and other advertisements are for demonstration purposes only. Actual products offered for sale may vary in design, required attachments, safety features and non-functional appearance from. See other general disclaimers at the bottom of our website.

NOTES:

Engine Disclaimer: The engine horsepower information is provided by the engine manufacturer to be used for comparison purposes only. See your local Cub Cadet Independent Dealer for warranty details.Pricing Disclaimer: Posted price is manufacturer's suggested sale price. Models and pricing may vary by location. Taxes and delivery not included. Image Disclaimer: Image may not reflect dealer inventory or unit specifications. Specifications Disclaimer: Specifications subject to change without notice. Images may not reflect retailer inventory and/or unit specifications.
