Description:

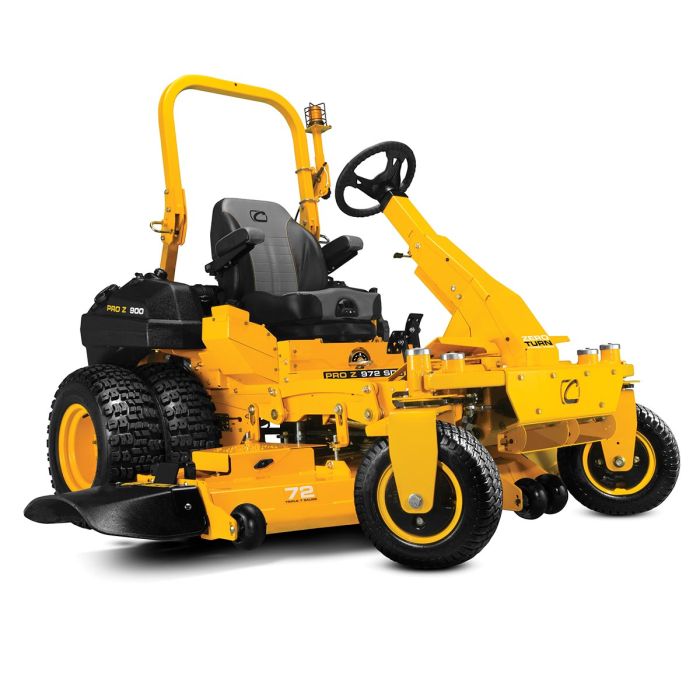

The Pro-Z 972 SDL Zero Turn is simply the strongest and best commercial grade mower you can buy.

With dual rear wheels, weighted front wheels and four wheel steering the Pro-Z 972 SDL will safely mow on slopes up to 25 degrees.

Lock-in or out self-leveling air-ride seat with 30 degrees of side-to-side swivel ensures you are sitting upright and comfortable on even the steepest of slopes.

A huge 72 Inch fabricated steel cutting deck and strong 35HP Kawasaki V-Twin adds unmatched speed and productivity to the package.

The Pro-Z 972 SDL is the only choice for professional contractors who demand strength, reliability, productivity and extreme hillside mowing capability.

Features

 A powerful slope mower with 35 HP Kawasaki FX1000v (999cc) engine and 16cc Parker HTG transmission

 72” triple-7-gauge fabricated steel cutting deck with top, bottom and side reinforcements

 Lock-in or out self-leveling air-ride seat with 30 degrees of side-to-side swivel/15 degrees of travel left or right.

 Dual rear wheels and weighted front rims give this steep slope mower traction on up to a 46% grade. 12-volt outlet kit and electronic power deck lift included

 3-year limited commercial warranty (no hour limitations) and 5 year / 1,750 hour limited deck construction warranty

Specifications For Model # PRO Z 972 SDL

Engine

• Engine Brand Kawasaki®
• Engine Model FX Series
• Engine Model Number 1000V
• Engine Displacement 999cc
• Engine Output 35HP
• Starter Type Electronic
• Fuel Tank Capacity Dual 7.45 gal. US (28.2 L)
• Cylinders Twin
• Engine Start Ignition Key
• Engine Oil Capacity 2.0 qt. US (1.89 L)
• Lubrication Fully pressurized
• Charging System 15 amp regulated
• Fuel Gauge Electronic
• Choke Separate Choke
• Air Filter High Density
• Oil Filter Yes
• Fuel Delivery Carburetor

Battery

• Battery 310CCA AGM battery; Relay/Fuse terminal block; 30 AMP voltage regulator

Drive System

• Transmission Parker® heavy duty HTG 16cc pump / 310cc wheel motor with oversized wheel bearings
• Forward Speed 14 mph / 22.5 km/h
• Reverse Speed 6 mph / 9.5 km/h

Cutting Deck

• Deck Cutting Width 72 in
• Deck Material triple-7-gauge fabricated steel
• Deck Engagement (PTO) Electronic with quick reset
• Deck Construction Floating, fabricated 7 ga (0.187") steel and adjustable rear striping rollers
• Spindle Construction Maintenance-free cast aluminum housing
• Blade(s) 3 high-lift Marbain® blades / 18,500 fpm (approx.)
• Deck Lift Electro-hydraulic assist quick-lift design
• Cutting Height Range 1” to 5” in 1/4” increments
• Anti-Scalping 4 front deck gauge wheels
• Deck Positions 16

Warranty

• Deck Shell Warranty 5 year / 1,750 hour limited deck construction warranty
• Commercial Warranty 3 year / no hour limit commercial warranty

Chassis

• Frame Fully welded, 3/8" x 5" laser-cut steel
• Front Axle 2" x 3" solid with Isolation dampening system, 1/2" thick steel
• ROPS 2" x 2" foldable 3-position with low profile
• Bumper 5/16" Thick Steel rear engine guard/pre-drilled mounting points for attachments with integrated rear hitch
• Rear Tow Hitch Bolt-On hitch std.

Controls

• Cruise Control NA
• Brakes Hand-operated lever with integrated hydro pump release lever
• Steering Control Quick-adjust steering column w/ power steering
• Operator Control Low-profile throttle lever

Comfort

• Seat Type High-back air-ride suspension, EVC cushion, seat belt, angle-back adjust, lumbar support, padded armrests, isolation dampening system mounted base (lateral suspension)
• Seat Suspension side-to-side swivel/15 degrees of travel left or right
• Seat Control Swivel User-controlled lock/unlock swivel seat for operator leveling up to 30-degrees total/15-degrees left or right travel

Wheels

• Rear Tires 25"x9"-12" HD Traction Tread
• Front Tires 16"x6.5"-8" Kenda K505
• Tire Tread Heavy-Duty traction tread

Dimensions

• Dimensions L/W/H 88" / 74" / 85"
• Weight (approx.) 1,885 lbs

Additional Specifications

• Hour Meter Crew Boss
• Headlight(s) 6 LED Lights for 360 degrees of lighted visibility; Amber Beacon with three position adjustments
• Cup Holder Intergrated into Side Pod
• Model Number 53TILMUY050

Specifications

• Engine Starter Type Electric
