Description:

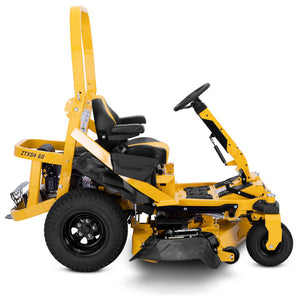

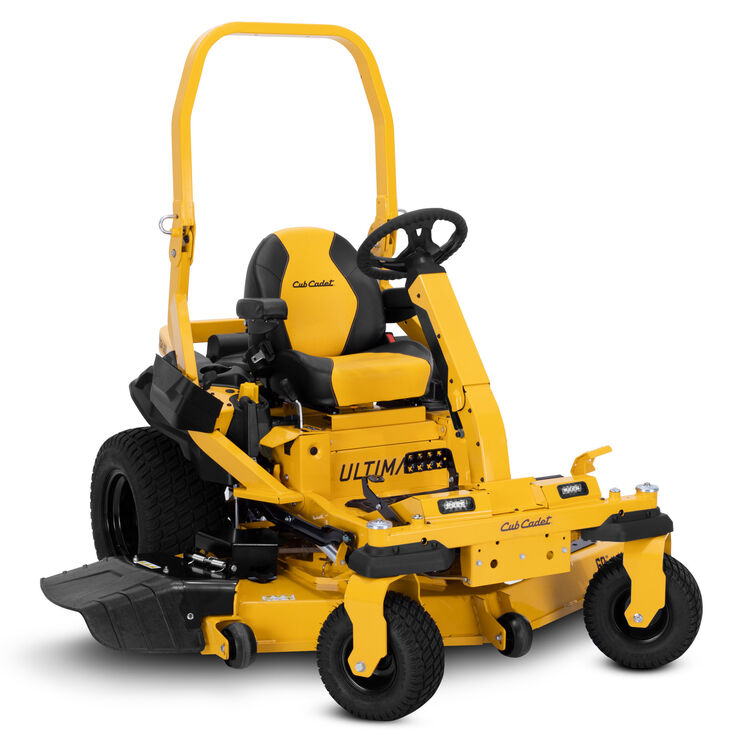

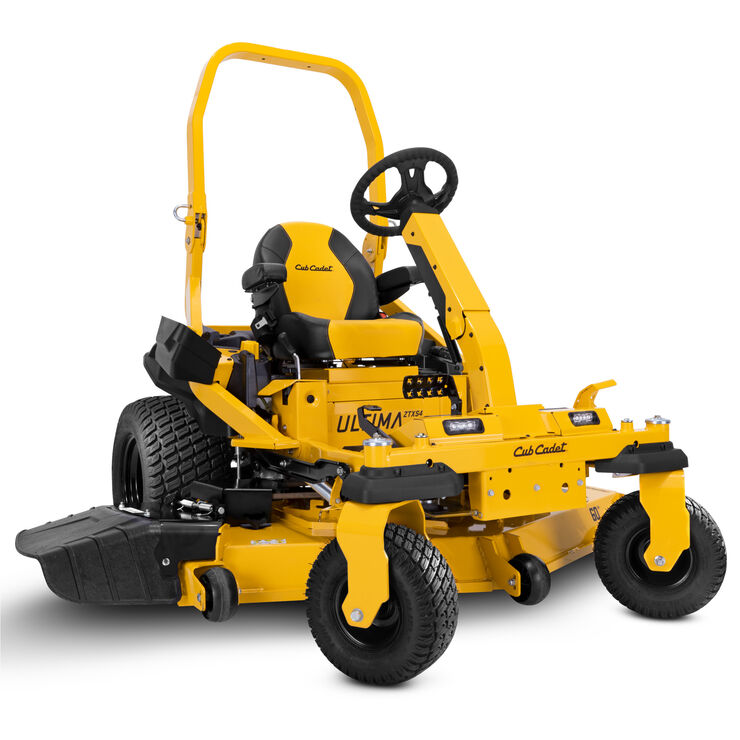

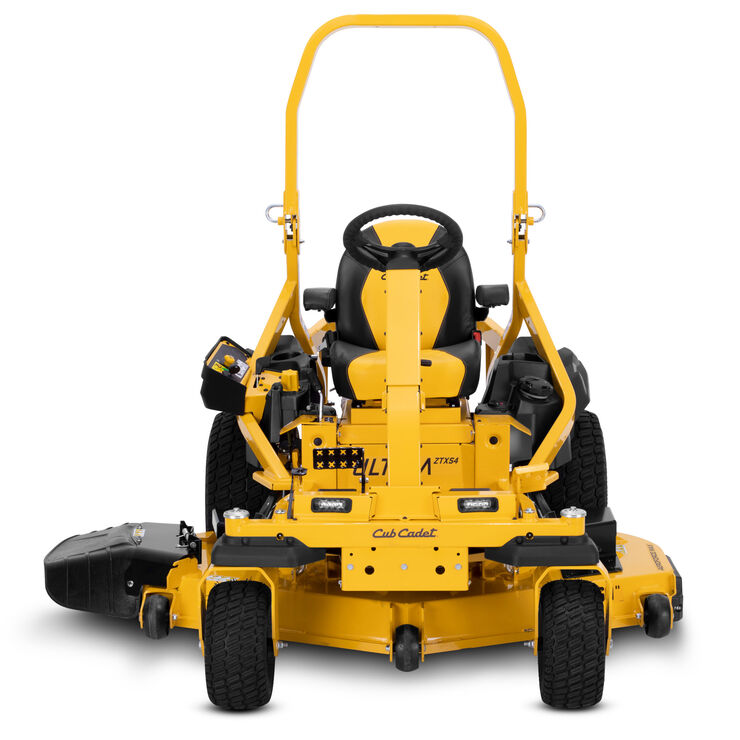

The Cub Cadet® Ultima Series ZTXS4 60 is a 60-inch zero-turn lawn mower with a 26 HP engine. It features an AeroForce™ Max reinforced fabricated deck, designed to provide a high-quality cut with few clumps and an even finish. The mower is made from 10-gauge reinforced steel and has low-maintenance spindles. Its smooth arc triple blades and deep dome deck design allow you to mow a wide area of grass. The Synchro-Steer™ technology offers 4-wheel control for better stability when mowing on hills and slopes up to 20 degrees.

Features:

• Synchro-Steer™ technology offers 4-wheel control helps and provides stability for straight-line mowing on hillsides and slopes up to 20°
• A 26 HP* Kohler KT-Pro 7000 Series V-twin OHV engine delivers high-performance power and exceptionally smooth, quiet operation
• Commercial grade dual hydrostatic rear-wheel transmissions for quick and easy mowing up to 8 MPH forward (3.5 MPH reverse) zero-turn controlled ground speeds, that quickly leaves your lawn with a professional-quality finish
• A strong, continuous 1.5 in. x 3 in. tubular steel frame with a triple guard corrosion defense system, a multi-step process that electronically applies a corrosion resistance e-coat with meticulous care to help protect against wear and tear

Specification:

Engine

• Engine Brand: Kohler®
• Model: Pro 7000 Series
• Model Number: KT745
• Displacement: 747cc
• Horsepower: 26 HP
• Cylinders: Twin
• Starter Type: Electric
• Start Method: Ignition Key
• Oil Capacity: 2.0 qt. US (1.89 L)
• Lubrication: Fully pressurized
• Charging System: 12 amp regulated
• Fuel Delivery: Carburetor
• Fuel Tank Capacity: 5.5 gal. US (20.82 L)
• Fuel Gauge: Yes
• Governor: Mechanical
• Choke: Choke-a-matic

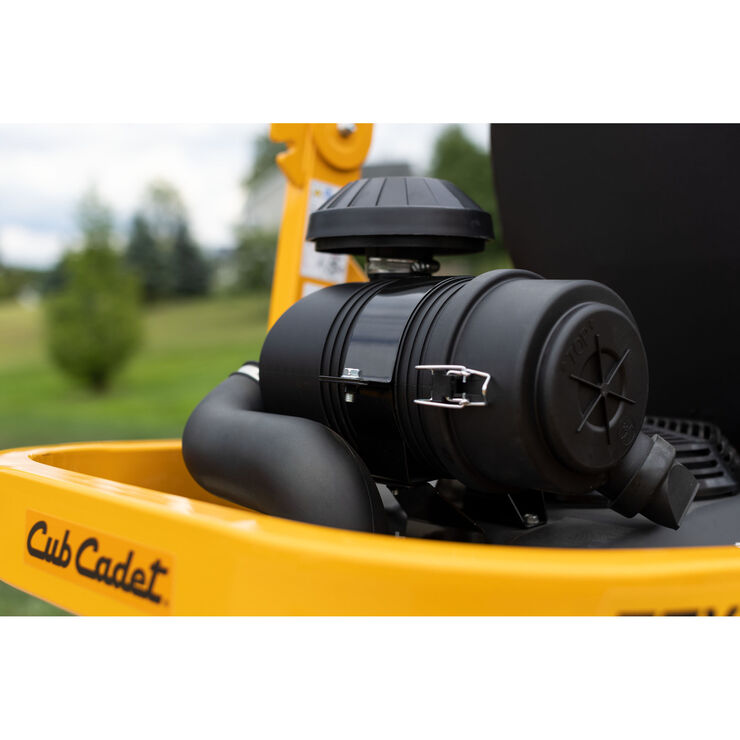

• Air Filter: Dual element
• Oil Filter: Yes

Battery

• Battery: 210 CCA
• Type: AGM (Absorbent Glass Mat)
• Voltage: 12V

Drive System

• Transmission: Hydro-Gear ZT 3100
• Drive Type: Hydrostatic
• Forward Speed: 8 MPH / 12.9 km/h
• Reverse Speed: 3.5 MPH / 5.6 km/h

Cutting Deck

• Deck Width: 60 in
• Deck Type: Reinforced Fabricated
• Deck Material: 10-gauge steel with 2-gauge reinforcements
• Blades: 3
• Deck Lift: Foot pedal with dial adjust
• Cutting Height Range: 1" - 4.75"
• Deck Positions: 17
• Deck Engagement (PTO): Electric
• Deck Wash Port: No
• Anti-Scalping Wheels: 3

Chassis

• Frame: 1.5" x 3" tubular steel
• Turning Radius: 0° (True Zero-Turn)
• ROPS (Roll Over Protection System): Yes
• Rear Tow Hitch: Yes
• Corrosion Protection: Yes

Controls & Comfort

• Steering: Steering Wheel
• Cruise Control: No
• Brakes: Disc
• Parking Brake: Foot-Controlled
• Seat Type: 20" high-back
• Armrests: Yes
• Seat Adjustment: Lever
• Front Caster Suspension: No

Wheels

• Rear Tires: 22" x 12" -12"
• Front Tires: 13" x 6.5" -6"
• Tread Type: Turf Master / Multi Trac

Additional Features

• Series: Ultima Series™ ZTXS
• Hour Meter: Yes
• Mulch Kit: Available separately
• Headlights: Dual-LED
• Cup Holder: Yes
• Operator Presence System: Yes

Model Info

• Model Number: 47TSCAB8A10

Warranty

• Residential Warranty: 4-year / 800 hours
• Commercial Warranty: 4-year / 800 hours
• Frame Warranty: Lifetime Limited
• Deck Shell Warranty: Lifetime Limited
