Description:

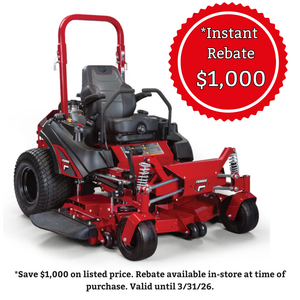

Introducing the latest innovation in lawn maintenance technology, the Ferris ISX™ Series sets the standard for performance and reliability. Featuring cutting-edge suspension technology with Fore Front™ Suspension, a redesigned 2-belt iCD™+ cutting system, and a heavy-duty dual commercial Hydro-Gear® ZT-5400 drive system, these mowers redefine efficiency and comfort. With travel speeds reaching up to 12 mph and select models equipped with EFI-ETC technology for fuel savings and easy starting, the ISX™ Series ensures smooth, consistent productivity in any mowing environment.

Features:

• iCD™+ Cutting System: Newly redesigned for enhanced performance, durability, and superior results. Available on select models.
• USB Port: Convenient 12V-60V USB Type A & C ports located on the dash panel for easy access and charging.
• ForeFront™ Suspension System: Utilizes four upper and lower control rods and mower-specific shocks to ensure a smooth ride, precise terrain tracing, and improved cutting.
• Vanguard BIG BLOCK™ Engine: EFI-ETC engine with Oil Guard technology offers a 500-hour oil change interval and 28 hp*, enhancing cutting performance in dense, thick, and wet conditions. Available on select models.
• Drive System: Equipped with heavy-duty dual commercial Hydro-Gear® ZT-5400 Powertrain® transaxles with 9" cooling fans for reliable power delivery.
• Hercules™ II Cast-Iron Spindles: Features a robust 10" diameter cast-iron design with industrial double row angular contact ball bearing and a 1 3/16" diameter shaft for durability and performance.
• Vanguard Electronic Throttle Control: Enables the engine to utilize all generated power for consistent blade tip speed, enhancing performance on select models.

Specifications:

• Engine: Vanguard™ BIG BLOCK™, 36 hp, 993cc, Electric start.
• Fuel Tank Capacity: 11 gallons.
• Deck Size: 60 inches, Cutting Height: 1.5 - 5 inches.
• Spindles: Hercules™ II Cast-Iron.
• Suspension: ForeFront™ Suspension System.
• Transmission: Dual commercial Hydro-Gear® ZT-5400 Powertrain® transaxles with 9" cooling fans.
• Drive: Axles: 1.375 inches, Caster Tires: 13 x 6.5-6 inches, Drive Tires: 26 x 12-12 inches, Ground Speed-Fwd: 0-12 mph, Ground Speed-Rev: 0-5 mph.
• Dimensions: Overall Length: 84.5 inches, Overall Width (Deflector Down/Deflector Up): 74/65 inches, Dry Weight: 1496 lbs.
• Seat Package: Premium high-back suspension seat with adjustable armrests, lumbar support, and back recline.
• Safety: Certified 158° foldable Roll-over Protection System (ROPS).
• Controls / Safety Group: Seat activated engine kill, clutch safety switch, neutral and parking brake safety circuit, adjustable twin steering controls.
• Parking Brake / Safety Circuit: Hand operated internal transaxle brake.
• Warranty: Engine: 3-Year limited manufacturer's warranty.
