Description:

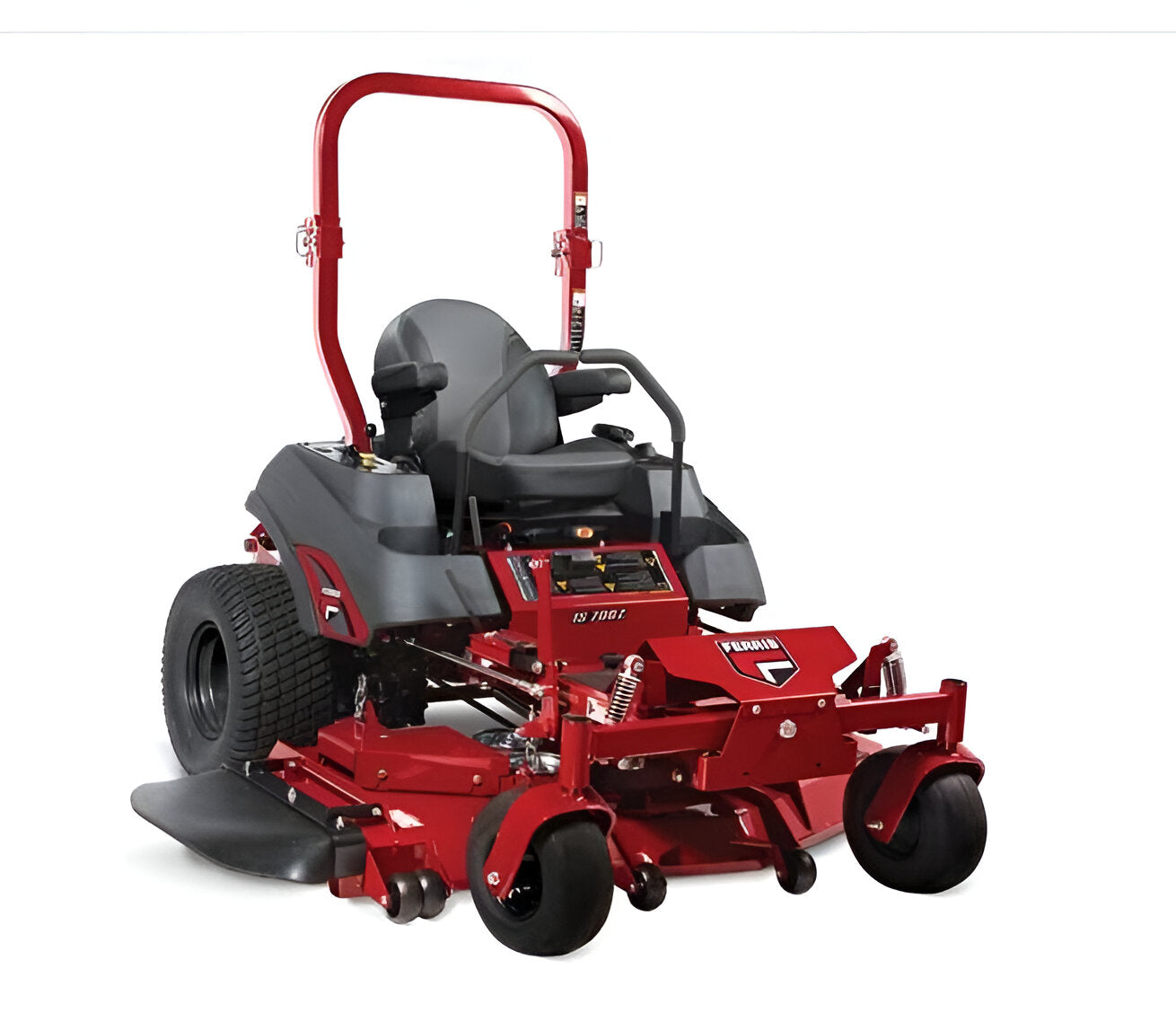

Mow More Lawn in Less Time. the Is® 700 Series, With up to Five Feet of Cutting Width, Features Our Patented Suspension Technology, Icd™ Cutting System, Heavy-Duty Hydro-Gear Zt-3200® Drive System, and a Top Speed of 10 Mph. This Mower Is Full of Features to Improve the Quality of Cut and Increase Productivity and Comfort.

Features

• Patented Suspension: Consists of rear coil-over-shocks (shown) and pivoting front axle with coil-over-shocks.
• Ride-On Mower Warranties†: Coil-Over-Shocks and all suspension-related components are covered for 5 years (60 months), for unlimited hours. We are committed to providing performance, productivity and durability.
• Exceptional Performance: The well-tuned steering system delivers smooth and confident operation for excellent performance time after time.
• Integrated Transmissions: Commercial Hydro-Gear® ZT-3200™ transaxles are designed for high performance and are fully serviceable.
• Easy Access: Quick removal of the floor pan provides convenient access to the top of the deck for easy cleaning and service.
• iCD™ Cutting System: Innovative iCD™ Cutting System was engineered to produce the best possible cut in a multitude of conditions.
• Mower Spindles: Cast-aluminum greaseable spindles feature 1" shaft with 2.5" x 1" dual ball bearings with top access grease fittings and pressure relief valve.
• Heavy-Duty Bumper: Heavy-duty bumper protects the engine while also allowing for easy service access.
• Acres Per Hour: Mows up to 5 acres per hour, based on 80% efficiency.
• Miles Per Hour: Up to 10 MPH ground speed, reverse 5 MPH.

Specifications

• Model Number: 5901797
• Engine Brand: Briggs & Stratton® Commercial Series
• Engine Power Rating *: 27
• Displacement (cc): 810
• PTO: Electric
• Cylinders: 2
• Starter: Electric
• Fuel Type: Gasoline
• Fuel Tank Capacity (gal): 5.5
• Cutting Width (in): 61
• Cutting Height (in): 1.5 - 5
• Spindles: Aluminum Greaseable
• Deck Construction: iCD™ Cutting System
• Suspension: Adjustable front and rear coil-over-shocks with pivoting front axle and a rear swing-arm with large adjustable coil-over-shocks
• Transmission: Dual, commercial Hydro-Gear ZT-3200® Transaxles with 7" cooling fans
• Drive Axles (in): 1.125
• Caster Tires (in): 13 X 6.5-6
• Drive Tires (in): 22 X 11-10
• Ground Speed-Fwd (mph): 0-10
• Ground Speed-Rev (mph): 0-5
• Overall Length (in): 81
• Overall Width (in) Deflector Down/Deflector Up: 75.75/65.5
• Dry Weight (lbs): 1113
• Seat Package: Mid-back suspension seat with arm rests
• Certified Roll-over Protection System: Standard, 180° foldable
• Controls / Safety Group: Seat activated engine kill, clutch safety switch, neutral and parking brake safety circuit/adjustable twin steering controls
• Parking Brake / Safety Circuit: Internal transaxles
• Warranty (Balance of Machine) †: 4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over-shocks and all suspension related components are covered for 5 years (60 months) unlimited hours. Coverage on other components varies, please see operator's manual for complete details.
• Mower Deck Warranty: 3-Year limited manufacturer's warranty
• Engine Configuration: Briggs & Stratton®
