Description:

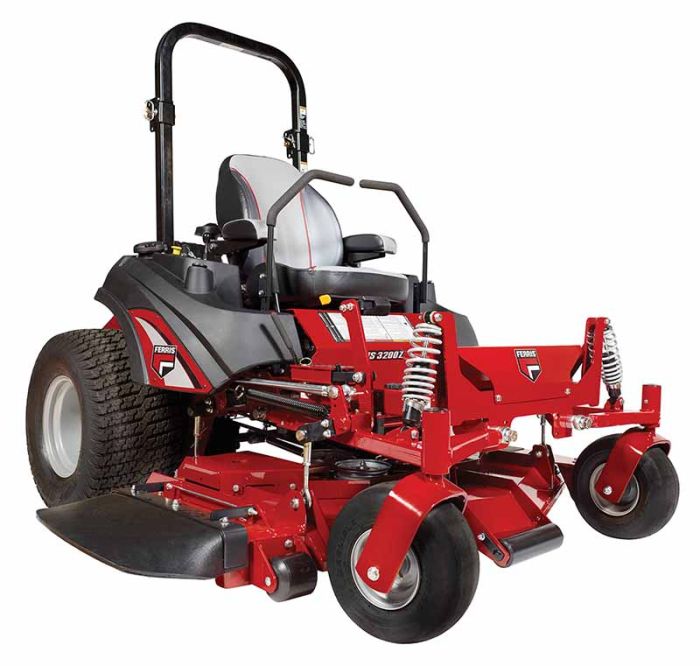

The fully commercial IS3200ZBVE3772 is prepared to tackle all of your lawns demands with a 72 inch cutting deck and a powerful 37 hp 993cc Vanguard BIG BLOCK EFI engine. The 3200Z models are designed to move at higher speeds for longer amounts of time, completing more jobs faster without scalping the turf!

Features:

Engine

• Vanguard BIG BLOCK EFI
• 37 hp; 993 cc
• 2 Cylinders
• 11 Gal Fuel Tank Capacity

Cutting Deck

• 72 inch Deck
• 1.5 inch - 5 inch cutting height
• iCD Cutting System
• Adjustable rear coil-over-shocks and front independent adjustable coil-over-shocks

Transmission

• Dual commercial Hydro-Gear ZT-5400 Powertrain transaxles with 9 inch cooling fans
• 13 x 6.5-6 inch caster tires
• 26 x 12-12 inch drive tires

Operator Controls

• Adjustable rear coil-over-shocks
• Front independent adjustable coil-over-shocks
• ROPS is foldable up to 165 degrees
• Seat activated engine kill
• Neutral and Parking brake safety circuit
• Internal transaxles for parking brake

Specification:

Product Information

• Manufacturer: Ferris
• MPN: 5901459
• Grade: Commercial

Engine Specifications

• Engine Manufacturer: Vanguard
• Engine Size: 37 hp
• Engine Type: 4-Stroke
• Starting System: Electric Start
• Oil Filter: Yes
• Fuel Tank Volume: 11 gal

Drive and Transmission

• Drive System: Dual transaxles with 9" cooling fans
• Transmission Model: Hydro-Gear ZT-5400
• Speed Forward: 12 mph
• Speed Reverse: 6 mph

Productivity

• Productivity: Up to 7.2 acres per hour (based on 80% efficiency)

Tire Specifications

• Tire Size Front: 13 x 6.5-6
• Tire Size Rear: 26 x 12-12

Deck Specifications

• Deck Size: 72 in
• Cutting Deck Type: Fabricated
• Spindle Material: Cast Iron
• Greaseable Spindle: Yes
• Cutting Height: 1.5" - 5.0"
• Blade Engagement: Electric

Comfort and Dimensions

• Seat Type: Suspension
• Arm Rest: Yes
• Length: 84.5"
• Width:
• Deflector Down: 76.75"
• Deflector Up: 66.5"
