Description:

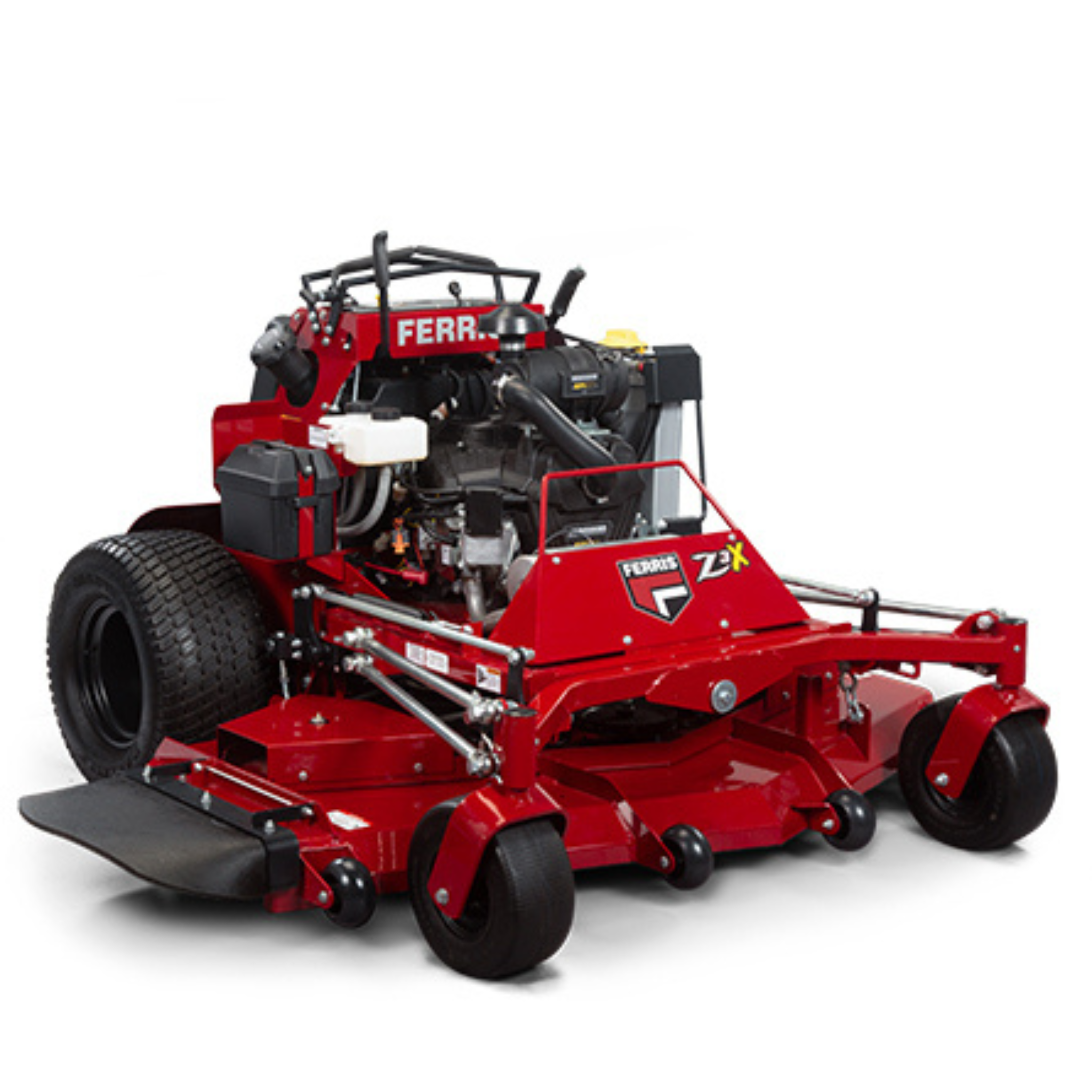

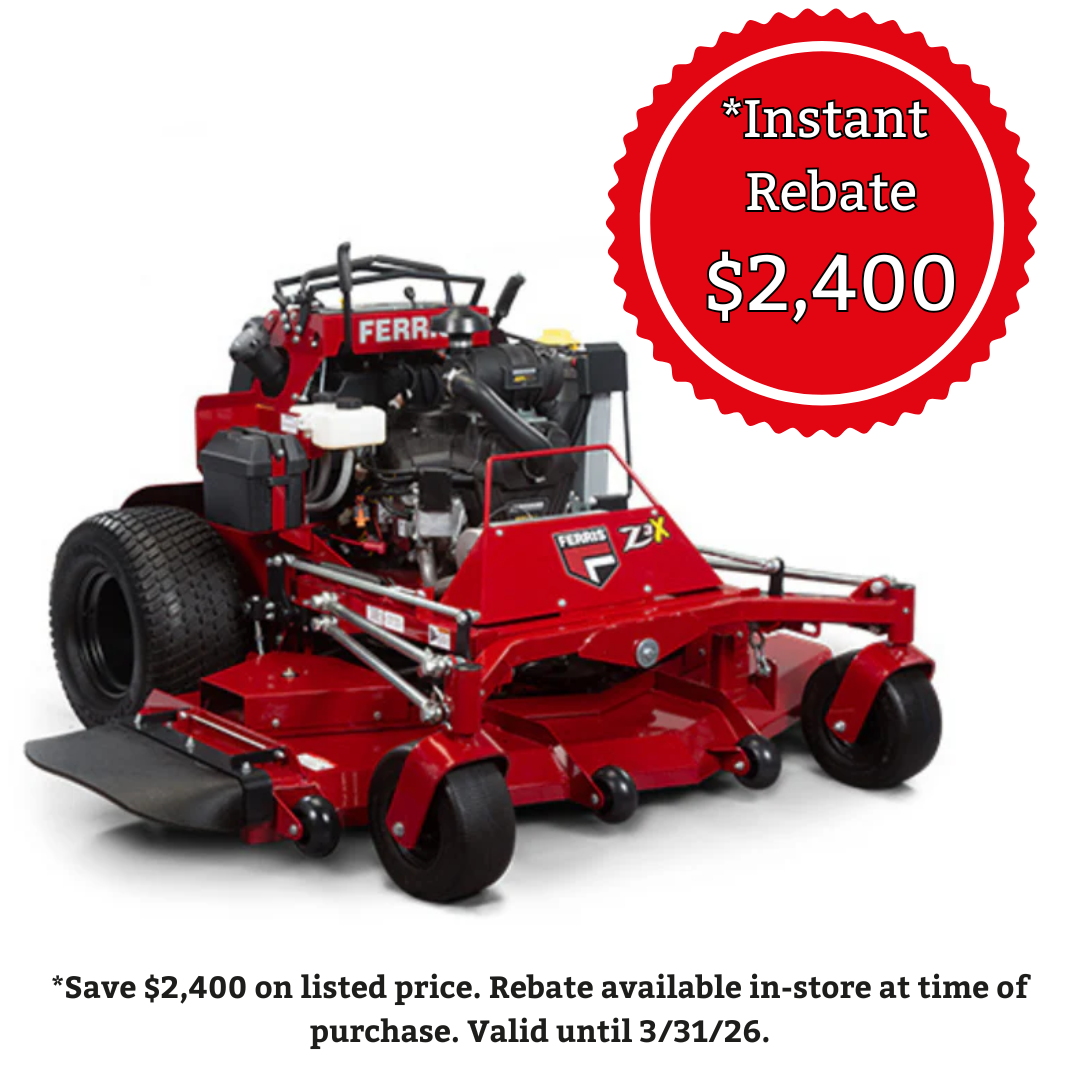

SRS™ Z3X Soft Ride Stand-On Mowers

SUPERIOR TRACTION WITH STAND-OUT PERFORMANCE

Built to deliver superior traction and performance, the SRS™ Z3X raises the bar for stand-on productivity. With various deck options, the Z3X increases productivity without sacrificing the trusted Ferris cut quality. A pivoting front axle allows for steeper inclines, meaning you can mow safer and more efficiently on even the most difficult yards. Featuring our redesigned iCD™+ Cutting System (select models) for maximum vacuum and clipping ejection to deliver only the most premium cut.

Features:

NEW! iCD™+ Cutting System

• Description: Redesigned for enhanced performance, durability, and superior cutting results. Available on select models.

Pivoting Front Axle with Radius Rod

• Description: Ensures all four wheels maintain contact with the ground, improving both comfort and cut quality.

Suspension Platform System

• Description: Features an adjustable suspension platform that accommodates a wide range of weights and operating conditions, optimizing operator comfort and productivity.

500 Hour Oil Change (Select Models)

• Description: Vanguard™ Engines equipped with the Oil Guard System allow for extended maintenance intervals, reducing oil changes to every 500 hours and cutting maintenance time and costs by up to 60%.**

Large Fuel Capacity

• Description: Equipped with a generous 11-gallon fuel tank for consistent balance. The fuel filler neck is conveniently positioned on the side for easy refueling.

Adjustable Speed Control

• Description: Allows tool-free speed adjustments in 1-2 mph increments, with a maximum travel speed of 12 mph, ensuring smooth and controlled operation.

Specifications:

Model Number: 5902123

Engine:

• Brand: Vanguard™ BIG BLOCK™ EFI-ETC with Oil Guard
• Power Rating: 37 hp
• Starter: Electric
• Displacement: 993 cc
• Cylinders: 2
• PTO: Electric

Fuel System:

• Fuel Tank Capacity: 11 gallons

Deck Construction:

• Type: iCD™ Cutting System
• Size: 52 inches
• Cutting Height: 1.75 - 5 inches
• Spindles: Cast-iron

Suspension:

• Type: Operator suspension platform with coil-over shock suspension

Transmission:

• Type: Dual commercial Hydro-Gear® ZT-4400® transaxles with 8" cooling fans

Drive System:

• Drive Axles: 1.375 inches
• Drive Tires: 24 x 9.5-12 inches
• Caster Tires: 13 x 6.5-6 inches, Flat-free

Performance:

• Ground Speed (Forward): 0-12 mph
• Ground Speed (Reverse): 0-5 mph

Dimensions:

• Overall Length: 69 inches
• Overall Width:
• Deflector Down: 65 inches
• Deflector Up: 54.5 inches

Weight:

• Dry Weight: 1184 lbs

Features:

• Seat Package: N/A
• Certified Roll-over Protection System: N/A
• Instrumentation: Dual-function hour meter, fuel level gauge
• Safety/Controls: Operator presence in platform, Parking brake safety circuit for starting engine, Automatic PTO restart

Warranty:

• Balance of Machine: 4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over-shocks and all suspension-related components are covered for 5 years (60 months) unlimited hours. Transaxle components are covered for 3 years (36 months). Coverage on other components varies; see operator's manual for complete details.
• Engine: 3-Year Limited Manufacturer's Warranty
