Description:

Features:

• Commercial-grade 22 hp Kawasaki® FX691V (726cc) engine
• A fully fabricated 48-inch 10-gauge steel commercial deck shell with top bottom and side reinforcements plus standard 24" tires give you more ground clearance to easily hop on curbs.
• A large, fully adjustable suspension platform allows you to adjust tension and glide comfortably through tough terrains.
• High-performance commercial Hydro-Gear® PK 12cc pumps & Parker® TL 240cc wheel motors deliver quick response to the drive wheels and smooth control for cutting speeds up to 10 mph.
• 3-year limited commercial warranty (no hour limitations) and 5-year/1,750-hour limited deck assembly warranty.

Specifications:

Engine

• Brand: Kawasaki®
• Series: FX Series
• Model Number: 691V
• Displacement: 726 cc
• Output: 22 HP
• Start Type: Electric with Quick Reset
• Fuel Capacity: 7.5 gal (28.4 L)
• Cylinders: Twin
• Oil Capacity: 2.0 qt (1.89 L)
• Lubrication: Fully pressurized
• Charging System: 15 amp regulated
• Fuel Delivery: Carburetor
• Air Filter: High Density
• Oil Filter: Yes
• Choke: Separate
• Fuel Gauge: No

Drive System

• Transmission: 12cc Hydro-Gear® Pumps / 240cc Parker® Wheel Motors
• Forward Speed: Up to 10 mph (16 km/h)
• Reverse Speed: Up to 5 mph (8 km/h)
• Brakes: Hand lever / external band
• Steering Control: Lap Bar Steering Wheel Control

Chassis / Suspension

• Frame: 2" x 3" full-length tube frame
• Front Axle: 2" x 3" tube construction
• Front Caster Mount: 3/8" thick steel
• Suspension: Spring platform, 3-position, adjustable by hand lever
• Rear Tires: 24"x 9.5" - 12"
• Front Tires: 13 x 5 - 6" Reliance Run-Flat (Carlisle)

Cutting Deck

• Deck Width: 48 in.
• Construction: 10-gauge shell reinforced with 7-gauge top & bottom
• Spindle Housing: 8" aluminum housing, 35mm sealed ball bearings, 1-3/8" shaft, maintenance-free
• Blade Setup: 3 x 17" high-lift Marbain® blades with 1.5" overlap
• Engagement (PTO): Electric
• Deck Lift: Manual lever with spring assist & pin-selector
• Cutting Height Range: 1.5” – 4.5”
• Anti-Scalp Wheels: 2 front gauge wheels

Dimensions

• Weight (Approx.): 1,015 lbs
• Hour Meter: Yes (Crew Boss interface)

Warranty

• Residential: 3-year, no-hour-limit
• Deck Shell: 5-year / 1,750-hour limited

Description:

Features:

• Commercial-grade 25.5 hp Kawasaki® FX801V (852cc) engine
• A fully fabricated 54-inch 10-gauge steel commercial deck shell with top bottom and side reinforcements plus standard 24" tires give you more ground clearance to easily hop on curbs.
• A large, fully adjustable suspension platform allows you to adjust tension and glide comfortably through tough terrains.
• High-performance commercial Hydro-Gear® PK 12cc pumps & Parker® TL 240cc wheel motors deliver quick response to the drive wheels and smooth control for cutting speeds up to 10 mph.
• 3-year limited commercial warranty (no hour limitations) and 5-year/1,750-hour limited deck assembly warranty.

Specifications:

Engine

• Brand: Kawasaki®
• Model: FX Series – 801V
• Displacement: 852 cc
• Output: 25.5 HP
• Start Type: Electronic (Ignition Key)
• Fuel Type: Gasoline
• Fuel Capacity: 7.5 gal. (28.4 L)
• Oil Capacity: 2.0 qt. (1.89 L)
• Lubrication: Fully Pressurized
• Fuel Delivery: Carburetor
• Charging System: 15 amp regulated
• Air Filter: High-Density
• Oil Filter: Yes
• Choke: Separate Choke
• Cylinders: Twin

Drive System

• Transmission: Dual Hydro – 12cc Hydro-Gear® Pumps / 240cc Parker® Wheel Motors
• Forward Speed: Up to 10 mph / 16 km/h
• Reverse Speed: Up to 5 mph / 8 km/h
• Brakes: Hand Lever-Controlled External Band
• Steering: Lap Bar Steering Wheel Control

Cutting Deck

• Width: 54 in
• Material: 10-gauge steel deck shell with 7-gauge reinforced top & bottom
• Construction: Fabricated
• Spindles: HD 8" Cast Aluminum Housing
• Bearings: 35mm Double-Row Sealed
• Shaft: 1-3/8" Through-Shaft
• Maintenance-Free: Yes
• Blades: Three (3) 19" High-Lift Marbain® Blades
• Blade Overlap: 1.5 in
• Engagement (PTO): Electronic with Quick Reset
• Deck Lift: Hand Lever with Spring Assist and Pin Selector
• Height Range: 1.5 in – 4.5 in
• Anti-Scalp Wheels: 2 Front Gauge Wheels

Chassis & Suspension

• Frame: 2" x 3" Full-Length Tubular Steel
• Front Axle: 2" x 3" Steel Tube
• Caster Mounts: 3/8" Thick Steel
• Suspension: Hand Lever Adjustable
• Platform: 3-Position Spring Suspension Foot Platform

Wheels & Tires

• Rear Tires: 24" x 12" - 12"
• Front Tires: 13" x 5" - 6"
• Type: Reliance Run-Flat (Carlisle®)

Controls & Features

• Cruise Control: Not Applicable
• Hour Meter: Included
• Brakes: External Band with Hand Lever
• Steering Controls: Lap Bar
• Operator Comfort: Spring Suspension Foot Platform

Dimensions

• Weight: Approx. 1080 lbs

Warranty

• Residential: 3-Year No-Hour-Limit
• Deck Shell: 5-Year / 1,750-Hour Limited

Description:

Features:

• 27 HP Kawasaki FX850v (852cc) engine and 12cc Parker HTJ transmission
• 60” triple-7-gauge fabricated steel cutting deck with top, bottom and side reinforcements
• 3-year limited commercial warranty (no hour limitations) and 5 year / 1,750 hour limited deck construction warranty

Description:

Features:

• 35 HP Kawasaki FX1000v (999cc) engine and 16cc Parker HTG transmission
• 72” triple-7-gauge fabricated steel cutting deck with top, bottom and side reinforcements
• 3-year limited commercial warranty (no hour limitations)and 5 year / 1,750 hour limited deck construction warranty

Description:

Features:

• 35 HP Kawasaki FX1000v (999cc) engine and 16cc Parker HTG transmission
• 72” triple-7-gauge fabricated steel cutting deck with top, bottom and side reinforcements
• 3-year limited commercial warranty (no hour limitations) and 5 year / 1,750 hour limited deck construction warranty

Description:

The Pro-Z 972 SDL Zero Turn is simply the strongest and best commercial grade mower you can buy.

With dual rear wheels, weighted front wheels and four wheel steering the Pro-Z 972 SDL will safely mow on slopes up to 25 degrees.

Lock-in or out self-leveling air-ride seat with 30 degrees of side-to-side swivel ensures you are sitting upright and comfortable on even the steepest of slopes.

A huge 72 Inch fabricated steel cutting deck and strong 35HP Kawasaki V-Twin adds unmatched speed and productivity to the package.

The Pro-Z 972 SDL is the only choice for professional contractors who demand strength, reliability, productivity and extreme hillside mowing capability.

Features

 A powerful slope mower with 35 HP Kawasaki FX1000v (999cc) engine and 16cc Parker HTG transmission

 72” triple-7-gauge fabricated steel cutting deck with top, bottom and side reinforcements

 Lock-in or out self-leveling air-ride seat with 30 degrees of side-to-side swivel/15 degrees of travel left or right.

 Dual rear wheels and weighted front rims give this steep slope mower traction on up to a 46% grade. 12-volt outlet kit and electronic power deck lift included

 3-year limited commercial warranty (no hour limitations) and 5 year / 1,750 hour limited deck construction warranty

Specifications For Model # PRO Z 972 SDL

Engine

• Engine Brand Kawasaki®
• Engine Model FX Series
• Engine Model Number 1000V
• Engine Displacement 999cc
• Engine Output 35HP
• Starter Type Electronic
• Fuel Tank Capacity Dual 7.45 gal. US (28.2 L)
• Cylinders Twin
• Engine Start Ignition Key
• Engine Oil Capacity 2.0 qt. US (1.89 L)
• Lubrication Fully pressurized
• Charging System 15 amp regulated
• Fuel Gauge Electronic
• Choke Separate Choke
• Air Filter High Density
• Oil Filter Yes
• Fuel Delivery Carburetor

Battery

• Battery 310CCA AGM battery; Relay/Fuse terminal block; 30 AMP voltage regulator

Drive System

• Transmission Parker® heavy duty HTG 16cc pump / 310cc wheel motor with oversized wheel bearings
• Forward Speed 14 mph / 22.5 km/h
• Reverse Speed 6 mph / 9.5 km/h

Cutting Deck

• Deck Cutting Width 72 in
• Deck Material triple-7-gauge fabricated steel
• Deck Engagement (PTO) Electronic with quick reset
• Deck Construction Floating, fabricated 7 ga (0.187") steel and adjustable rear striping rollers
• Spindle Construction Maintenance-free cast aluminum housing
• Blade(s) 3 high-lift Marbain® blades / 18,500 fpm (approx.)
• Deck Lift Electro-hydraulic assist quick-lift design
• Cutting Height Range 1” to 5” in 1/4” increments
• Anti-Scalping 4 front deck gauge wheels
• Deck Positions 16

Warranty

• Deck Shell Warranty 5 year / 1,750 hour limited deck construction warranty
• Commercial Warranty 3 year / no hour limit commercial warranty

Chassis

• Frame Fully welded, 3/8" x 5" laser-cut steel
• Front Axle 2" x 3" solid with Isolation dampening system, 1/2" thick steel
• ROPS 2" x 2" foldable 3-position with low profile
• Bumper 5/16" Thick Steel rear engine guard/pre-drilled mounting points for attachments with integrated rear hitch
• Rear Tow Hitch Bolt-On hitch std.

Controls

• Cruise Control NA
• Brakes Hand-operated lever with integrated hydro pump release lever
• Steering Control Quick-adjust steering column w/ power steering
• Operator Control Low-profile throttle lever

Comfort

• Seat Type High-back air-ride suspension, EVC cushion, seat belt, angle-back adjust, lumbar support, padded armrests, isolation dampening system mounted base (lateral suspension)
• Seat Suspension side-to-side swivel/15 degrees of travel left or right
• Seat Control Swivel User-controlled lock/unlock swivel seat for operator leveling up to 30-degrees total/15-degrees left or right travel

Wheels

• Rear Tires 25"x9"-12" HD Traction Tread
• Front Tires 16"x6.5"-8" Kenda K505
• Tire Tread Heavy-Duty traction tread

Dimensions

• Dimensions L/W/H 88" / 74" / 85"
• Weight (approx.) 1,885 lbs

Additional Specifications

• Hour Meter Crew Boss
• Headlight(s) 6 LED Lights for 360 degrees of lighted visibility; Amber Beacon with three position adjustments
• Cup Holder Intergrated into Side Pod
• Model Number 53TILMUY050

Specifications

• Engine Starter Type Electric

Description:

The Cub Cadet Pro Z 560S KW features a 60-inch, fabricated deck with a Kawasaki FX Series V-Twin engine. This model features a pedal-assisted lift for the cutting deck, allowing the operator to quickly and easily adjust the deck height between sixteen different heights. Dual 7.5 gallon fuel tanks provide all-day mowing capabilities without the need to refuel often.

Features:

• 27HP/852cc Kawasaki FX850V Series V-Twin Engine
• 60-inch, 3-blade fabricated deck
• 12cc Parker HTJ series pumps and 260cc Parker motor
• Dual 7.5 gallon fuel capacity
• Ground speed: 10 mph forward/5 mph reverse
• Front wheels: 15 x 6 in - 6 in
• Rear wheels: 24 x 12 in - 12 in
• 3-year limited warranty
• Model: 53TIHJUV050

Specifications:

Warranty

• Commercial Warranty: 3 years / no hour limit

Steering

• Type: High Performance Steering Wheel & Foot-pedal Control
• Adjustment: Multi-position Quick-adjust steering column

Mower Deck

• Size/Type: 60" Fabricated Deck
• Material: 7ga. (.187”) steel shell
• Top Reinforcement: 7ga. (.187") top plate
• Bottom Reinforcement: 7ga. (.187") bottom plate
• Rolled Leading Edge: 1/4" (.250") steel
• Side Construction: 5/16" (.313) steel
• Cutting Height: 1" - 5"
• Blade-Tip Speed (Approx): 18,500 fpm
• Deck Blades: Triple-blade / High-lift blade (standard) Marbain Blade
• Trim-Side Wear Guard: 3/4" Thick UHMW-PE Replaceable
• Anti-Scalping: 2 Front HD w/ Bushings & Grease Zerk
• Spindle Covers: Steel - Tool-less Quick Release
• Discharge Chute: Heavy-duty Flex chute (impact resistant)
• Deck Height Adjustment: Foot pedal with spring assist (16 Positions)

General

• Rear Tires: 24" x 12" - 12" (Turf Tread)
• Front Tires: 13" x 6.5" - 6" (Turf Tread)
• Weight (approx): 1060 lbs
• Cup Holder: Integrated into Side Pod
• PTO Clutch: Warner Clutch - 125 ft lb
• ROPS: 2"x2" Foldable 3 Position Low Profile Clearance
• Park Brake / Braking: Hand-operated lever with integrated hydro pump release lever
• Rear Bumper: 5/16" Thick Steel rear engine guard with pre-drilled mounting points
• Seat Type: High-back dial suspension with EVC Cushion, seat belt, angle back adjust, arm rests
• Front Axle / Yokes: 2" x 3" solid axle tube and 1/2" thick steel front yokes
• Frame: Fully welded, full-length 3/8 x 5" laser cut steel with integrated tie-down slots
• Throttle/PTO/Key Switch: HD Low-profile throttle lever, sealed key switch & electronic fingertip engagement PTO
• Cruise Control: N/A
• Length / Width / Height (discharge chute up width/ ROPS up height): 80" L x 50" W x 58" H
• Safety Systems: Operator presence
• Hour Meter: Standard electronic

Engine & Drive System

• Horsepower / CC's: 27 hp - 852 cc
• Engine Type: Kawasaki FX850v
• Ground Speed: Forward: 10 mph / Reverse: 5 mph
• Fuel Capacity: Twin 7.45 gal. tanks (14.9 gal. total) with dial gauge
• Transmission: Parker HTJ Series (12cc pump / 260cc wheel motor)

Description:

Features:

• 31 HP Kawasaki FX921v (999cc) engine and 14cc Parker HTG transmission
• 60” triple-7-gauge fabricated steel cutting deck with top, bottom and side reinforcements
• 3-year limited commercial warranty (no hour limitations)

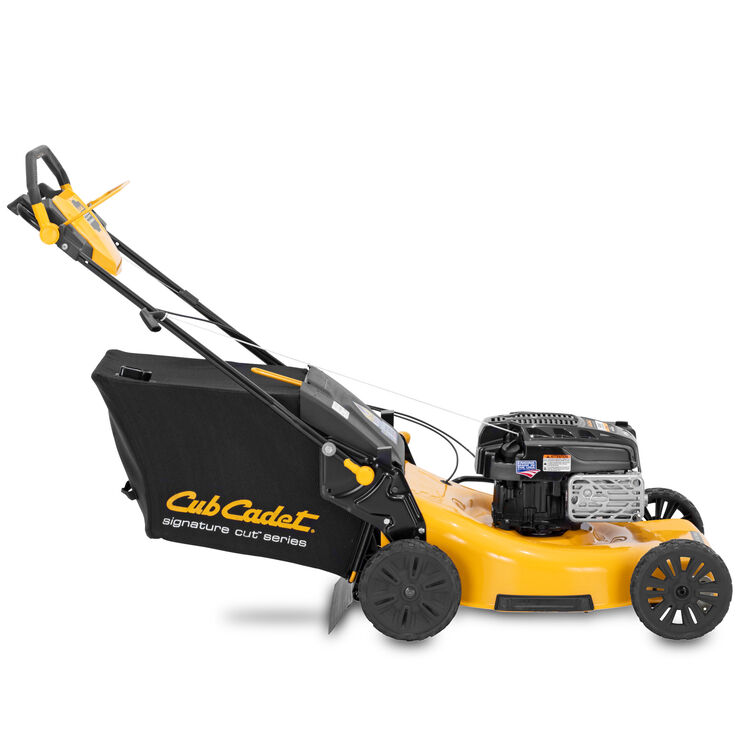

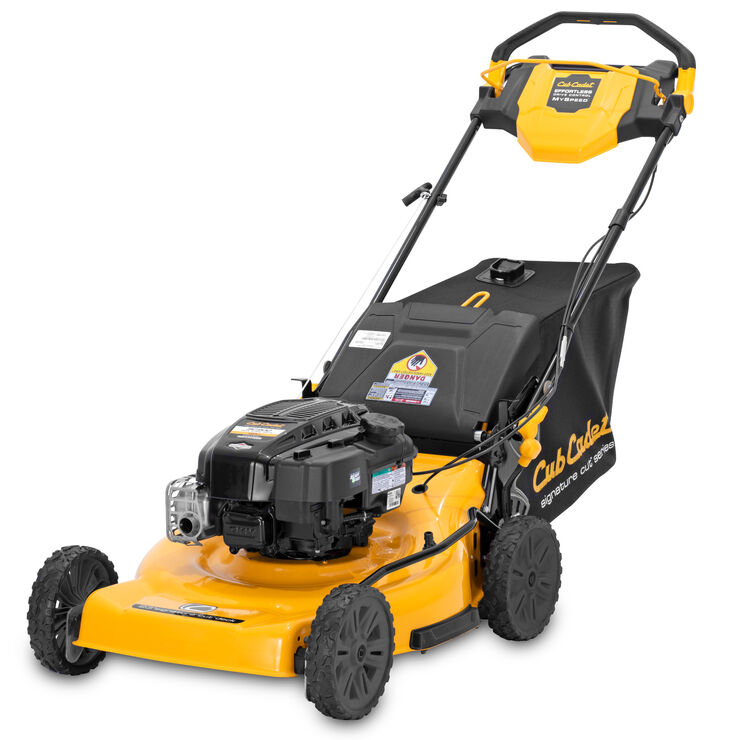

Description:

Features:

• A 163cc Briggs and Stratton® engine is built to deliver the strength to power through your yard
• Designed to help you navigate uneven terrain with ease thanks to front-wheel drive with single lever drive control
• 11-in. high rear wheels designed for easy mobility over tough terrain
• 21-in. steel deck with deck wash and 3-in-1 bagging, side discharge and mulching capabilities

Specifications:

• Engine:
• Brand: Briggs & Stratton
• Model: 725exi
• Model Number: 104M02-0223
• Displacement: 163cc
• Starter: Recoil
• Fuel Tank Capacity: 1.0 quart
• Engine Oil Capacity: 15 ounces
• Choke: ReadyStart
• Drive System:
• Type: Front-wheel drive (FWD)
• Cutting Deck:
• Cutting Width: 21 inches
• Deck Wash: Yes
• Material: Steel
• Cutting Height Range: 1.25 inches to 3.75 inches
• Deck Positions: 6
• Height Adjustment: Dual-lever
• Cutting System:
• Type: Signature Cut
• Mulch Plug: Integrated
• Discharge Location: Side
• Controls:
• Handle: Adjustable
• Drive Controls: Single-lever
• Wheels:
• Front Wheels: 8 inches (Zag tread pattern)
• Rear Wheels: 11 inches (Zag tread pattern)
• Bearing Type: Poly Bushing
• Additional Specifications:
• Model Number: 12AVB2R3710
• Warranty:
• Residential: 3-year limited
• Engine: 3-year limited
• Commercial: No
• Commercial Engine: No
• Grass Collector:
• Capacity: 1.9 bushels
• Type: Dust Blocking

Professional Results for Home Lawns

The Cub Cadet SC900 23in Self-Propelled Mower is designed to deliver premium cutting performance, durability, and convenience for homeowners who want a clean, precise finish every time. Powered by a 190cc Briggs & Stratton 875 Pro engine, this mower provides dependable strength to tackle thick grass, uneven terrain, and challenging mowing conditions.

Its 23-inch Signature Cut steel deck offers 3-in-1 functionality, giving you the flexibility to bag, mulch, or side-discharge based on your lawn’s needs. The rear-wheel drive system provides enhanced traction and control on slopes, while the MySpeed™ variable drive control adjusts automatically to your walking pace, ensuring smooth operation and effortless maneuvering.

Built with Cub Cadet’s attention to detail, the SC900 features a durable steel frame, high rear wheels, and a single-lever height adjustment system for quick deck height changes. The ergonomic handle design and soft grip reduce vibration and fatigue, letting you mow longer with ease.

Key Features

• 190cc Briggs & Stratton 875 Pro Series engine provides reliable power and consistent starting.
• 23in heavy-duty steel deck designed for long-lasting durability and precise cutting.
• 3-in-1 mowing system supports bagging, mulching, and side discharge.
• Rear-wheel drive (RWD) delivers superior traction on slopes and uneven ground.
• MySpeed™ self-propelled drive automatically adjusts to your preferred walking pace.
• Single-lever deck height adjustment with six positions ranging from 1.25in to 3.75in.
• 9in front and rear wheels improve handling and stability across all terrains.
• Ergonomic soft-grip handle enhances comfort during extended mowing.
• Approximate weight: 90 lbs.

Why It’s a Smart Pick

The Cub Cadet SC900 23in Self-Propelled Walk-Behind Mower offers a perfect blend of power, comfort, and versatility for residential lawn care. With its strong Briggs & Stratton engine, rear-wheel drive traction, and precision-engineered cutting system, it’s built to make mowing faster, cleaner, and easier. Ideal for medium to large lawns, this mower provides professional-grade results and reliable performance season after season.

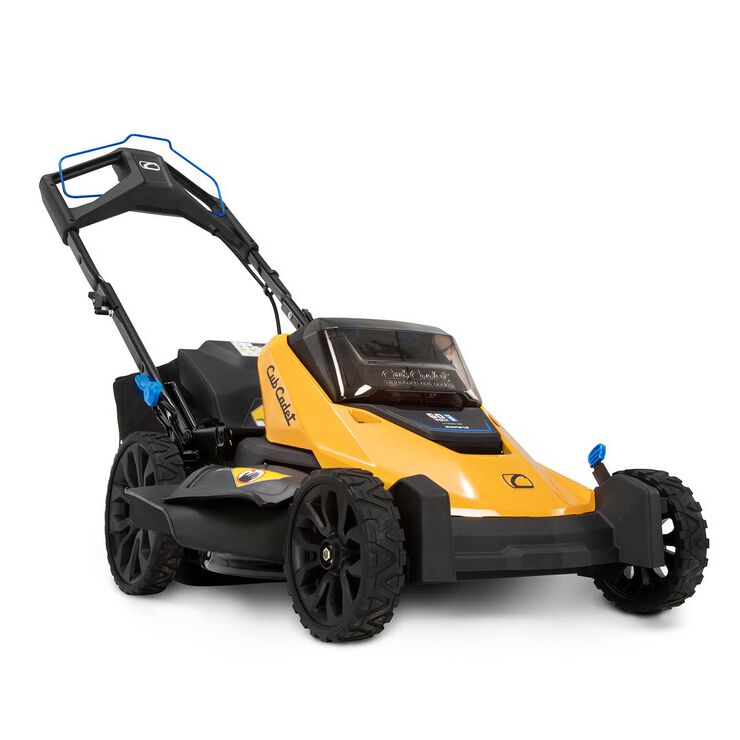

Description:

Features:

• 60 Volt Max*, 5.0Ah, 300Wh lithium-ion battery
• Mow up to ½ acre, or 50 minutes on a single charge, without power fade
• Premium ball bearings and 11” rear wheels increase traction and maneuverability
• Brushless motor for optimized performance and longevity
• 21-in all steel deck provides added durability with 3-in-1 side-discharge, bagging and mulching capabilities

Description:

Features:

• A 173cc commercial-grade Kohler® engine is built to provides reliable power, easy starting, long use and minimal noise.
• 22" cutting swath designed to provide a wide reach to quickly trim large areas of grass.
• Handle adjusts to 3 positions and a rubber bail grip is built to provide mooth handling and comfort, folds for easy storage.
• Lower the cutting height to take on walls and structures or raise it to tackle thick grass and weeds with a 2.375" to 4.375" range
• Offset deck designed to easily trim around obstacles such as corners and fence lines while walking in a straight line

Commercial Performance Built for Residential Power

The Cub Cadet Ultima ZTX4 54in Zero Turn Mower (Model 47TSAAA7A10) delivers the perfect balance of commercial-grade toughness and residential comfort. Powered by a 26-horsepower Kohler 7000 Series PRO V-Twin engine (747cc), this mower provides smooth, powerful performance with dependable starting and long-lasting durability for large-property mowing.

The 54-inch AeroForce™ Max fabricated steel cutting deck offers exceptional airflow and fine cutting performance, ensuring a cleaner, more even finish on every pass. Its 10-gauge reinforced steel construction adds strength and longevity, while the deep-deck design improves grass lift and discharge.

Built on a fully welded 1.5in x 3in tubular steel frame, the ZTX4 is engineered to handle tough terrain with stability and precision. The dual Hydro-Gear ZT-3100 commercial-grade transmissions deliver reliable drive power and smooth zero-turn maneuverability, while the ergonomic controls and comfortable high-back seat enhance operator comfort for long sessions.

Key Features

• 26HP Kohler 7000 Series PRO V-Twin engine (747cc) delivers strong, consistent performance and torque.
• 54in AeroForce™ Max fabricated steel cutting deck ensures professional-quality results and durability.
• 10-gauge steel deck with 2-gauge reinforcement provides added strength and longevity.
• Dual Hydro-Gear ZT-3100 transmissions deliver smooth zero-turn handling and reliable drive performance.
• Ground speed up to 8 mph forward / 3.5 mph reverse for fast, efficient mowing.
• Adjustable cutting height from 1in to 4.75in, with 17 deck height positions for customized results.
• 1.5in x 3in tubular steel frame with e-coat corrosion protection ensures long-term durability.
• High-back premium seat with armrests reduces fatigue and enhances comfort during extended use.
• Large rear tires and front caster wheels provide superior traction and control on uneven terrain.
• ROPS (Roll-Over Protection System) adds an extra layer of operator safety and stability.

Why It’s a Smart Pick

The Cub Cadet Ultima ZTX4 54in Zero Turn Mower is built for homeowners who expect commercial-grade quality and performance in a residential package. With its 26HP Kohler PRO engine, wide 54-inch reinforced cutting deck, and Hydro-Gear ZT-3100 transmissions, this mower delivers the durability, comfort, and control needed for demanding mowing conditions. Whether maintaining large lawns or acreage, the ZTX4 54 ensures professional cutting results, exceptional reliability, and a comfortable ride every time.

Maximum Stability, Power, and Wide-Area Coverage

The Cub Cadet Ultima ZTXS4 60in Zero Turn Mower (Model 47TSCAB8A10) delivers commercial-grade strength, unmatched control, and wide-deck efficiency for large-property mowing. Powered by a 26-horsepower Kohler Pro 7000 Series V-Twin engine (747cc), this mower provides reliable torque, smooth operation, and long-lasting durability for the toughest residential and light commercial applications.

Built with Synchro-Steer™ four-wheel steering technology, the ZTXS4 provides superior stability and precise handling — even on slopes up to 20 degrees. The 60-inch AeroForce™ Max fabricated steel cutting deck features a deep-dome design and reinforced 10-gauge steel construction for exceptional airflow, fine clippings, and a professional-grade finish.

With dual Hydro-Gear ZT-3100 commercial-grade transmissions, this mower delivers powerful traction and smooth zero-turn maneuverability. The fully welded 1.5in x 3in tubular steel frame, ergonomic controls, and premium high-back seat ensure strength, comfort, and stability across long mowing sessions.

Key Features

• 26HP Kohler Pro 7000 Series V-Twin engine (747cc) delivers dependable, high-output performance.
• 60in AeroForce™ Max fabricated steel cutting deck for wide coverage and superior cut quality.
• Synchro-Steer™ four-wheel steering provides unmatched control and hillside stability.
• Dual Hydro-Gear ZT-3100 transmissions for reliable, commercial-grade zero-turn performance.
• Cutting height adjustable from 1in to 4.75in, with 17 deck positions for precision mowing.
• Ground speed up to 8 mph forward / 3.5 mph reverse for efficient large-property coverage.
• 1.5in x 3in tubular steel frame with corrosion defense coating for long-term durability.
• High-back seat with armrests and suspension comfort reduces operator fatigue.
• Large rear tires and pivoting front casters provide excellent traction and smooth maneuvering.
• ROPS (Roll-Over Protection System) enhances safety and confidence on varied terrain.

Why It’s a Smart Pick

The Cub Cadet Ultima ZTXS4 60in Zero Turn Mower is built for property owners and professionals who demand control, comfort, and efficiency. Its powerful Kohler engine, extra-wide fabricated deck, and Synchro-Steer™ technology combine to deliver precise handling and premium results — even on slopes or uneven terrain. Designed for productivity and comfort, this mower provides commercial performance, residential convenience, and a flawless finish every time.

Description:

The Cub Cadet® Enduro Series XT1 ST54 is a riding lawn mower with a 54-inch AeroForce™ fabricated deck and a powerful 24 HP engine. It is designed to give you a high-quality cut with minimal clumps and uneven patches. The mower features a hydrostatic transmission for smooth operation. Additionally, it has a comfortable 15-inch high back seat that can be adjusted, ensuring a great mowing experience.

Features:

• A 24 HP/747cc twin-cylinder Kohler® engine is designed to deliver reliable power to tackle your yard.
• 54-in. strong AeroForce™ fabricated deck is designed to deliver a premium cut with few clumps and stragglers, fine clippings and evenness.
• Hydrostatic transmission helps provide smooth operation, no shifting, just push the pedal and go.
• Adjustable cut and sew high back 15-in. seat with a 10-degree incline and slide slope designed to provide comfort for an excellent mowing experience.
• Compact AGM battery is designed to deliver a premium experience with a long lifespan, low maintenance and excellent starting performance for reliable starting season to season.

Specification:

Engine

• Engine Brand: Kohler®
• Engine Model: 7000 Series KT724
• Engine Displacement: 747cc
• Engine Output: 24 HP
• Cylinders: Twin
• Starter Type: Electric
• Engine Start: Ignition Key
• Fuel Tank Capacity: 3.0 gal. US (11.36 L)
• Engine Oil Capacity: 2.0 qt. US (1.89 L)
• Lubrication System: Fully pressurized
• Charging System: 12 amp regulated
• Fuel Gauge: No
• Governor: Mechanical
• Choke: Separate Choke
• Air Filter: Dual element
• Oil Filter: Yes
• Fuel Delivery: Carburetor

Battery

• Battery Power: 210 CCA
• Battery Type: AGM (Absorbent Glass Mat)
• Battery Voltage: 12V

Drive System

• Transmission: Tuff Torq® K46
• Drive Type: Hydrostatic
• Transmission Control: Foot Pedal
• Forward Speed: 5.5 MPH / 8.6 km/h
• Reverse Speed: 3 MPH / 4.8 km/h
• Rear Axle Size: 3/4"
• Transmission Housing: Aluminum
• Rear Differential Lock: No

Cutting Deck

• Deck Cutting Width: 54 in.
• Deck Wash Port: Yes
• Deck Material: 11-gauge steel
• Deck Construction: Fabricated
• Deck Engagement (PTO): Electric
• Number of Blades: Three
• Deck Lift: Manual
• Cutting Height Range: 1" – 4"
• Deck Height Positions: 12
• Anti-Scalping Wheels: Four gauge wheels plus roller

Chassis

• Frame: Robotically welded
• Turning Radius: 16"
• Bumper: Steel tube
• Rear Tow Hitch: Yes
• Corrosion Protection: Yes
• Front Pivot Bar: Cast iron

Controls

• Cruise Control: Yes
• Brakes: Disc

Comfort

• Seat Type: 15" high-back
• Armrests: No
• Seat Adjustment: Lever
• Floor Mats: Rubber

Wheels

• Bearing Type: Poly Bushing
• Rear Tires: 22" x 9.5" – 12"
• Front Tires: 16" x 6.5" – 8"
• Tire Tread: Turf Saver

Additional Features

• Series: XT1® Enduro Series™
• Hour Meter: Available separately
• Mulch Kit: Available separately
• Headlights: Dual-LED
• Cup Holder: Yes
• Operator Presence System: Yes
• Model Number: 13AQA2TMA10

Warranty

• Residential Warranty: 3-year unlimited hours
• Frame Warranty: 5-year unlimited hours
• Front Axle Warranty: 5-year unlimited hours
• Deck Shell Warranty: Lifetime limited
• Commercial Warranty: Not included

Description:

The Cub Cadet® Enduro Series XT1 LT46 46-in. 22 HP* Riding Lawn Mower features a 46-in., stamped deck. Features a hydrostatic transmission that helps provide a smooth operation. An adjustable cut and sew high back 15-in. seat designed to provide comfort for an excellent mowing experience.

Features:

• A 22 HP/725cc twin-cylinder Kohler® engine is designed to deliver reliable power to tackle your yard.
• 46-in. stamped deck built with strong materials and an exceptional belt design while delivering a premium cut.
• Hydrostatic transmission helps provide smooth operation, no shifting, just push the pedal and go.
• Lawn Tractor

Specifications:

Engine

• Engine Brand: Kohler®
• Engine Model: 7000 Series KT722
• Engine Displacement: 747cc
• Engine Output: 22 HP
• Cylinders: Twin
• Starter Type: Electric
• Engine Start: Ignition Key
• Fuel Tank Capacity: 3.0 gal. US (11.36 L)
• Engine Oil Capacity: 2.0 qts. US (1.89 L)
• Lubrication System: Fully pressurized
• Charging System: 12 amp regulated
• Fuel Gauge: No
• Governor: Mechanical
• Choke: Separate Choke
• Air Filter: Dual element
• Oil Filter: Yes
• Fuel Delivery: Carburetor

Battery

• Battery Power: 210 CCA
• Battery Type: AGM (Absorbent Glass Mat)
• Battery Voltage: 12V

Drive System

• Transmission: Tuff Torq® TL-200
• Drive Type: Hydrostatic
• Transmission Control: Foot Pedal
• Forward Speed: 5.5 MPH / 8.6 km/h
• Reverse Speed: 3 MPH / 4.8 km/h
• Rear Axle Size: 3/4"
• Transmission Housing: Aluminum
• Rear Differential Lock: No

Cutting Deck

• Deck Cutting Width: 46 in.
• Deck Wash Port: Yes
• Deck Material: 12-gauge steel
• Deck Construction: Stamped
• Deck Engagement (PTO): Manual
• Number of Blades: Two
• Deck Lift: Manual
• Cutting Height Range: 1" – 4"
• Deck Height Positions: 12
• Anti-Scalping Wheels: 4 gauge wheels

Chassis

• Frame: Robotically welded
• Turning Radius: 16"
• Bumper: No
• Rear Tow Hitch: Yes
• Corrosion Protection: Yes
• Front Pivot Bar: Cast iron

Controls

• Cruise Control: Yes
• Brakes: Disc

Comfort

• Seat Type: 15" high-back
• Armrests: No
• Seat Adjustment: Lever
• Floor Mats: Rubber

Wheels

• Bearing Type: Poly Bushing
• Rear Tires: 20" x 8" – 8"
• Front Tires: 15" x 6" – 6"
• Tire Tread: Turf Saver

Additional Features

• Series: XT1® Enduro Series™
• Hour Meter: Available separately
• Mulch Kit: Available separately
• Headlights: Dual-LED
• Cup Holder: Yes
• Operator Presence System: Yes
• Model Number: 13APA9TTA10

Warranty

• Residential Warranty: 3-year unlimited hours
• Frame Warranty: 5-year unlimited hours
• Front Axle Warranty: 5-year unlimited hours
• Deck Shell Warranty: 3-year unlimited hours
• Commercial Warranty: Not included
