Description:

The Cub Cadet CC800 wide-area walk-behind mower offers great innovation and performance. It features a strong 10.5 HP Briggs and Stratton OHV engine for powerful cutting. The 33-inch steel cutting deck ensures maximum efficiency. This mower is built to last and can cover more ground quickly, finishing the job faster than a standard 21-inch walk-behind. With dual blades, it provides a superior cut that looks like it was done by a riding mower.

Features:

• A 344cc Briggs & Stratton® OHV engine with keyed start is built with the strength to power through your yard
• Variable 4-speed drive system allows you to set your speed based on terrain and personal preference, with 4-forward speeds and 1-reverse speed
• Separate drive controls and blade brake clutch, allows blades to be disengaged while operating
• 8-in. ball-bearing caster front wheels provide easy maneuverability

Specification:

Engine:

• Brand: Briggs & Stratton
• Model: Intek
• Displacement: 344cc
• Starter Type: Electric - Key
• Fuel Tank Capacity: 8.0 qt
• Engine Oil Capacity: 48 oz

Drive System:

• System: RWD

Cutting Deck:

• Width: 33 in
• Material: Steel
• Cutting Height Range: 1.25" - 3.50"
• Positions: 8
• Height Adjustment: Single-Lever
• Cutting System: Cyclocut
• Mulch Plug: Integrated
• Discharge Location: Side

Controls:

• Handle: Plow
• Drive Controls: Single Lever

Wheels:

• Front Wheels: 8 in
• Rear Wheels: 16 in
• Tread Pattern: Turf
• Bearing Type: Ball Bearing

Additional Specifications:

• Hour Meter: Yes
• Model Number: 12AE764B010

Warranty:

• Residential Warranty: 3-year limited
• Engine Warranty: 3-year limited
• With its sturdy construction, efficient cutting system, and convenient features, this mower is backed by a 3-year limited residential warranty, ensuring reliable performance and durability for years to come.

Description:

Features:

• Commercial-grade 22 hp Kawasaki® FX691V (726cc) engine
• A fully fabricated 48-inch 10-gauge steel commercial deck shell with top bottom and side reinforcements plus standard 24" tires give you more ground clearance to easily hop on curbs.
• A large, fully adjustable suspension platform allows you to adjust tension and glide comfortably through tough terrains.
• High-performance commercial Hydro-Gear® PK 12cc pumps & Parker® TL 240cc wheel motors deliver quick response to the drive wheels and smooth control for cutting speeds up to 10 mph.
• 3-year limited commercial warranty (no hour limitations) and 5-year/1,750-hour limited deck assembly warranty.

Specifications:

Engine

• Brand: Kawasaki®
• Series: FX Series
• Model Number: 691V
• Displacement: 726 cc
• Output: 22 HP
• Start Type: Electric with Quick Reset
• Fuel Capacity: 7.5 gal (28.4 L)
• Cylinders: Twin
• Oil Capacity: 2.0 qt (1.89 L)
• Lubrication: Fully pressurized
• Charging System: 15 amp regulated
• Fuel Delivery: Carburetor
• Air Filter: High Density
• Oil Filter: Yes
• Choke: Separate
• Fuel Gauge: No

Drive System

• Transmission: 12cc Hydro-Gear® Pumps / 240cc Parker® Wheel Motors
• Forward Speed: Up to 10 mph (16 km/h)
• Reverse Speed: Up to 5 mph (8 km/h)
• Brakes: Hand lever / external band
• Steering Control: Lap Bar Steering Wheel Control

Chassis / Suspension

• Frame: 2" x 3" full-length tube frame
• Front Axle: 2" x 3" tube construction
• Front Caster Mount: 3/8" thick steel
• Suspension: Spring platform, 3-position, adjustable by hand lever
• Rear Tires: 24"x 9.5" - 12"
• Front Tires: 13 x 5 - 6" Reliance Run-Flat (Carlisle)

Cutting Deck

• Deck Width: 48 in.
• Construction: 10-gauge shell reinforced with 7-gauge top & bottom
• Spindle Housing: 8" aluminum housing, 35mm sealed ball bearings, 1-3/8" shaft, maintenance-free
• Blade Setup: 3 x 17" high-lift Marbain® blades with 1.5" overlap
• Engagement (PTO): Electric
• Deck Lift: Manual lever with spring assist & pin-selector
• Cutting Height Range: 1.5” – 4.5”
• Anti-Scalp Wheels: 2 front gauge wheels

Dimensions

• Weight (Approx.): 1,015 lbs
• Hour Meter: Yes (Crew Boss interface)

Warranty

• Residential: 3-year, no-hour-limit
• Deck Shell: 5-year / 1,750-hour limited

Description:

Features:

• Commercial-grade 25.5 hp Kawasaki® FX801V (852cc) engine
• A fully fabricated 54-inch 10-gauge steel commercial deck shell with top bottom and side reinforcements plus standard 24" tires give you more ground clearance to easily hop on curbs.
• A large, fully adjustable suspension platform allows you to adjust tension and glide comfortably through tough terrains.
• High-performance commercial Hydro-Gear® PK 12cc pumps & Parker® TL 240cc wheel motors deliver quick response to the drive wheels and smooth control for cutting speeds up to 10 mph.
• 3-year limited commercial warranty (no hour limitations) and 5-year/1,750-hour limited deck assembly warranty.

Specifications:

Engine

• Brand: Kawasaki®
• Model: FX Series – 801V
• Displacement: 852 cc
• Output: 25.5 HP
• Start Type: Electronic (Ignition Key)
• Fuel Type: Gasoline
• Fuel Capacity: 7.5 gal. (28.4 L)
• Oil Capacity: 2.0 qt. (1.89 L)
• Lubrication: Fully Pressurized
• Fuel Delivery: Carburetor
• Charging System: 15 amp regulated
• Air Filter: High-Density
• Oil Filter: Yes
• Choke: Separate Choke
• Cylinders: Twin

Drive System

• Transmission: Dual Hydro – 12cc Hydro-Gear® Pumps / 240cc Parker® Wheel Motors
• Forward Speed: Up to 10 mph / 16 km/h
• Reverse Speed: Up to 5 mph / 8 km/h
• Brakes: Hand Lever-Controlled External Band
• Steering: Lap Bar Steering Wheel Control

Cutting Deck

• Width: 54 in
• Material: 10-gauge steel deck shell with 7-gauge reinforced top & bottom
• Construction: Fabricated
• Spindles: HD 8" Cast Aluminum Housing
• Bearings: 35mm Double-Row Sealed
• Shaft: 1-3/8" Through-Shaft
• Maintenance-Free: Yes
• Blades: Three (3) 19" High-Lift Marbain® Blades
• Blade Overlap: 1.5 in
• Engagement (PTO): Electronic with Quick Reset
• Deck Lift: Hand Lever with Spring Assist and Pin Selector
• Height Range: 1.5 in – 4.5 in
• Anti-Scalp Wheels: 2 Front Gauge Wheels

Chassis & Suspension

• Frame: 2" x 3" Full-Length Tubular Steel
• Front Axle: 2" x 3" Steel Tube
• Caster Mounts: 3/8" Thick Steel
• Suspension: Hand Lever Adjustable
• Platform: 3-Position Spring Suspension Foot Platform

Wheels & Tires

• Rear Tires: 24" x 12" - 12"
• Front Tires: 13" x 5" - 6"
• Type: Reliance Run-Flat (Carlisle®)

Controls & Features

• Cruise Control: Not Applicable
• Hour Meter: Included
• Brakes: External Band with Hand Lever
• Steering Controls: Lap Bar
• Operator Comfort: Spring Suspension Foot Platform

Dimensions

• Weight: Approx. 1080 lbs

Warranty

• Residential: 3-Year No-Hour-Limit
• Deck Shell: 5-Year / 1,750-Hour Limited

Description:

Features:

• 35 HP Kawasaki FX1000v (999cc) engine and 16cc Parker HTG transmission
• 72” triple-7-gauge fabricated steel cutting deck with top, bottom and side reinforcements
• 3-year limited commercial warranty (no hour limitations) and 5 year / 1,750 hour limited deck construction warranty

Description:

Features:

• A 190cc Briggs & Stratton® engine is built to deliver the strength to power through your yard
• Large 23-in. all-steel deck is designed to allow you to mow efficiently with 3-in-1 bagging, side discharge and mulching capabilities
• Rear-wheel drive provides strong control on uneven terrain
• 9-in. front and rear wheels with Cub Cadet® tread designed for excellent mobility
• MySpeed™ drive control system delivers six speeds of control, easy engagement and adjusts to your pace.

Specifications:

Engine

• Brand: Briggs & Stratton
• Model: 875 Pro
• Model Number: 125P02-0070
• Displacement: 190cc
• Starter Type: Recoil
• Fuel Tank Capacity: 1.0 quart
• Oil Capacity: 20 ounces
• Choke: Readystart

Drive System

• Type: Rear-Wheel Drive (RWD)

Cutting Deck

• Cutting Width: 23 inches
• Material: Steel
• Deck Wash: Yes
• Height Range: 1.25" - 3.75"
• Positions: 6
• Height Adjustment: Single-Lever
• Cutting System: Signature Cut
• Mulch Plug: Integrated
• Discharge Location: Rear

Warranty

• General Warranty: 4-year limited
• Commercial Warranty: No

Controls

• Handle: Quick Adjust
• Drive Controls: Cub Cadet MySpeed

Wheels

• Tread Pattern: Aggressive
• Front Wheels: 9 inches
• Rear Wheels: 9 inches
• Bearing Type: Poly Bushing

Additional Specifications

• Model Number: 12ABR27B710

Grass Collector

• Capacity: 3.1 Bushels
• Type: Dust Blocking with Indicator

Description:

Cub Cadet® Enduro Series XT1 GT54 54-in. 26 HP* Riding Lawn Mower with AeroForce™ Fabricated Deck is designed to deliver a premium cut with few clumps and stragglers, fine clippings and evenness. Features a hydrostatic transmission that helps provide a smooth operation. An adjustable cut and sew high back 15-in. seat designed to provide comfort for an excellent mowing experience.

Features:

• A 26 HP/747cc twin-cylinder Kohler® engine is designed to deliver reliable power to tackle your yard.
• 54-in. strong AeroForce™ fabricated deck is designed to deliver a premium cut with few clumps and stragglers, fine clippings and evenness.
• Hydrostatic transmission helps provide smooth operation, no shifting, just push the pedal and go.
• Adjustable cut and sew high back 15-in. seat with a 10-degree incline and slide slope designed to provide comfort for an excellent mowing experience.
• Compact AGM battery is designed to deliver a premium experience with a long lifespan, low maintenance and excellent starting performance for reliable starting season to season.
• Garden Tractor

Specifications:

Engine

• Brand: Kohler®
• Model: 7000 Series HD (Model Number: KT745)
• Displacement: 747cc
• Output: 26HP
• Starter Type: Electric
• Fuel Tank Capacity: 3.0 gal (11.36 L)
• Cylinders: Twin
• Start: Ignition Key
• Oil Capacity: 2.0 qt (1.89 L)
• Lubrication: Fully pressurized
• Charging System: 12 amp regulated
• Fuel Gauge: No
• Governor: Mechanical
• Choke: Separate
• Air Filter: Dual element
• Oil Filter: Yes
• Fuel Delivery: Carburetor

Battery

• Capacity: 210 CCA
• Type: AGM (Absorbent Glass Mat)
• Voltage: 12V

Drive System

• Transmission: Tuff Torq® K58
• Forward Speed: 6.2 MPH (9.9 km/h)
• Reverse Speed: 3 MPH (4.8 km/h)
• Rear Axle: 1 inch
• Type: Hydrostatic
• Control: Foot Pedal
• Transmission Housing: Aluminum
• Rear Differential Lock: No

Cutting Deck

• Width: 54 inches
• Wash System: Yes
• Material: 11-gauge steel
• Engagement (PTO): Electric
• Construction: Fabricated
• Blade(s): Three
• Lift: Manual
• Cutting Height Range: 1" - 4"
• Anti-Scalping: Five gauge wheels
• Deck Positions: 12

Chassis

• Frame: Robotically welded
• Turning Radius: 16 inches
• Bumper: Steel tube
• Rear Tow Hitch: Yes
• Corrosion Protection: Yes
• Front Pivot Bar: Cast iron

Controls

• Cruise Control: Yes
• Brakes: Disc

Comfort

• Seat Type: 15" high-back
• Armrests: No
• Seat Adjustment: Lever
• Floor Mats: Rubber

Wheels

• Bearings: Poly Bushing
• Rear Tires: 22"x 9.5"-12"
• Front Tires: 16"x 6.5"-8"
• Tread: Turf Saver

Description:

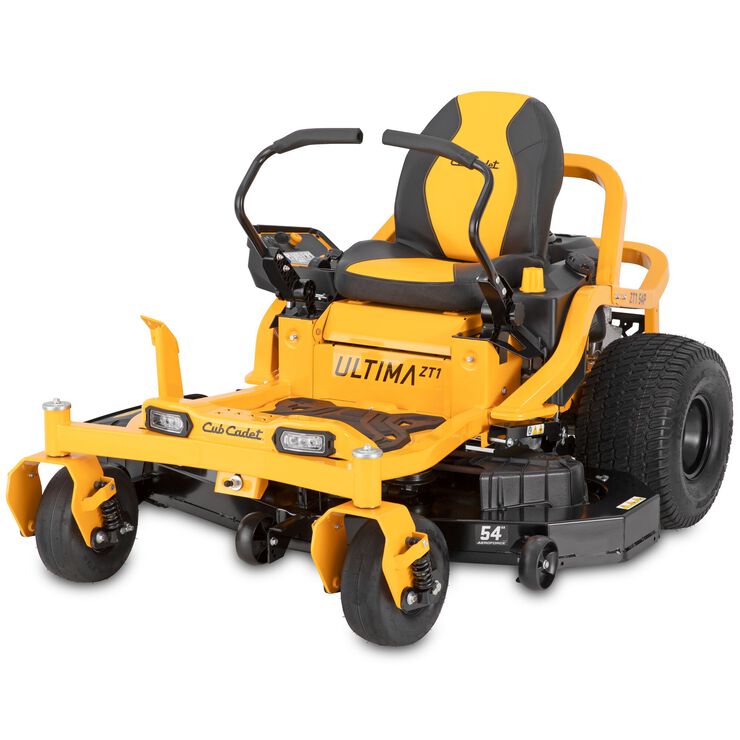

The Cub Cadet® Ultima Series ZT1 54 54-in. 24 HP* Zero-Turn Lawn Mower with Aero Force™ Fabricated Deck is designed to deliver a premium cut with few clumps and stragglers, fine clippings and evenness. Dual hydrostatic transmissions engineered for quick ground speeds that leaves your yard with a professional-quality finish. A continuous tubular steel frame with fully e-coated corrosion defense system designed to help protect against wear and tear.

Features:

• A 24HP*/725cc Kohler 7000 Series V-Twin OHV Engine, OHV engine delivers high-performance power and exceptionally smooth, quiet operation
• Dual hydrostatic transmissions allow for quick and effortless 7 MPH forward (3.5 MPH reverse) ground speeds that leaves your lawn with a professional-quality finish
• 54-in. Aero Force fabricated deck that delivers a signature cut with fewer clumps and stragglers, finer clippings and increased evenness
• Zero-Turn Mower

 Specifications:

Engine:

• Brand: Kohler®
• Model: 7000 Series
• Model Number: KT735
• Displacement: 725cc
• Output: 24HP
• Starter Type: Electric
• Fuel Tank Capacity: 3.5 gal. US (13.25 L)
• Cylinders: Twin
• Engine Start: Ignition Key
• Oil Capacity: 2.0 qt. US (1.89 L)
• Lubrication: Fully pressurized
• Charging System: 12 amp regulated
• Fuel Delivery: Carburetor
• Air Filter: Dual element
• Oil Filter: Yes

Battery:

• Type: AGM (Absorbent Glass Mat)
• Capacity: 210 CCA
• Voltage: 12V

Drive System:

• Transmission: Hydro-Gear EZT 2200
• Forward Speed: 7 MPH / 11.3 km/h
• Reverse Speed: 3.5 MPH / 5.6 km/h
• Drive Type: Hydrostatic

Cutting Deck:

• Width: 54 in
• Deck Wash: No
• Material: 11-gauge steel
• Engagement: Electric (PTO)
• Construction: Fabricated
• Blades: 3
• Deck Lift: Foot pedal with Dial Adjust
• Cutting Height: 1'' - 4.5''
• Anti-Scalping: 3 gauge wheels
• Positions: 15

Chassis:

• Frame: 2'' x 2'' tubular steel
• Turning Radius: 0°
• ROPS: No
• Rear Tow Hitch: Yes
• Corrosion Protection: Yes

Controls:

• Cruise Control: No
• Brakes: Disc
• Steering Control: Lap Bars

Comfort:

• Seat Type: 20" high back
• Armrests
• No
• Seat Adjustment
• Knob
• Front Caster Suspension
• No

Wheels

• Rear Tires
• 20''x 10''- 8''
• Front Tires
• 11"x 6"-5"
• Tire Tread
• Turf Master / Multi Trac

Specifications

Series

• Ultima Series™ ZT

Additional Specifications

Hour Meter

• Available Separately
• Mulch Kit
• Available separately
• Headlight(s)
• Dual-LED
• Cup Holder
• Yes
• Operator Presence System
• Yes
• Parking Brake
• Lap Bar Integrated
• Model Number
• 17AREACM010

Warranty

• Residential Warranty
• 3-year unlimited hours
• Frame Warranty
• Lifetime Limited
• Deck Shell Warranty
• Lifetime limited
• Commercial Warranty
• No

Description:

The Cub Cadet® Ultima Series ZT1 54P is a 54-inch zero-turn lawn mower with a 23 HP engine and an AeroForce™ fabricated deck. It is built to provide a high-quality cut with few clumps and an even finish. The mower features dual hydrostatic transmissions for quick ground speeds, giving your yard a professional look. Its durable tubular steel frame has a fully e-coated corrosion defense system to protect against wear and tear.

Features:

• A premium 23 HP/726cc Kawasaki FR691V twin-cylinder OHV engine, commercial-grade power that meets your yard's toughest demands
• Ride in ultimate comfort thanks to a front caster suspension that delivers up to 770 lbs. of shock absorption to help reduce vibration*
• Dual hydrostatic transmissions allow for quick and effortless 7 MPH forward (3.5 MPH reverse) ground speeds that leaves your lawn with a professional-quality finish
• 54-in. AeroForce fabricated deck that delivers a signature cut with fewer clumps and stragglers, finer clippings and increased evenness.

Specification:

Engine:

• Engine Brand: Kawasaki®
• Engine Model: FR Series 691V
• Engine Model Number: 691V
• Engine Displacement: 726cc
• Engine Output: 23HP
• Starter Type: Electric
• Fuel Tank Capacity: 3.5 gal. US (13.25 L)
• Cylinders: Twin
• Engine Start: Ignition Key
• Engine Oil Capacity: 2.1 qt US (2 L)
• Lubrication: Fully pressurized
• Charging System: 15 amp regulated
• Fuel Gauge: No
• Governor: Mechanical
• Choke: Separate Choke
• Air Filter: Dual element
• Oil Filter: Yes
• Fuel Delivery: Carburetor

Battery:

• Battery: 210 CCA
• Battery Type: AGM (Absorbent Glass Mat)
• Battery Voltage: 12V

Drive System:

• Transmission: Hydro-Gear EZT 2200
• Forward Speed: 7 MPH / 11.3 km/h
• Reverse Speed: 3.5 MPH / 5.6 km/h
• Drive System: Hydrostatic

Cutting Deck:

• Deck Cutting Width: 54 in
• Deck Wash: No
• Deck Material: 11-gauge steel
• Deck Engagement (PTO): Electric
• Deck Construction: Fabricated
• Blade(s): Three
• Deck Lift: Foot pedal with Dial Adjust
• Cutting Height Range: 1'' - 4.5''
• Anti-Scalping: Three gauge wheels
• Deck Positions: 15

Chassis:

• Frame: 2'' x 2'' tubular steel
• Turning Radius: 0°
• ROPS (Roll Over Protection System): No
• Rear Tow Hitch: Yes
• Corrosion Protection: Yes

Controls:

• Cruise Control: No
• Brakes: Disc
• Steering Control: Lap Bars

Comfort:

• Seat Type: 20" high back
• Armrests: No
• Seat Adjustment: Knob
• Front Caster Suspension: Yes

Wheels:

• Rear Tires: 20''x 12''- 8''
• Front Tires: 11"x 6"-5"
• Tire Tread: Turf Master / Multi Trac

Specifications:

• Series: Ultima Series™ ZT
• Additional Specifications:
• Hour Meter: Available Separately
• Mulch Kit: Available separately
• Headlight(s): Dual-LED
• Cup Holder: Yes
• Operator Presence System: Yes
• Parking Brake: Lap Bar Integrated
• Model Number: 17AIEACMA10

Warranty:

• Residential Warranty: 3-year unlimited hours
• Frame Warranty: Lifetime Limited
• Deck Shell Warranty: Lifetime limited
• Commercial Warranty: No

Description:

The Cub Cadet® Ultima Series ZTS1 46 46-in. 22 HP* Zero-Turn Lawn Mower with AeroForce™ Fabricated Deck and Synchro-Steer™ Technology is designed to deliver a premium cut with few clumps and stragglers, fine clippings and evenness. Synchro-Steer offers 4-wheel control designed to help provide stability for straight line mowing on hillsides and slopes up to 20-degrees. Dual hydrostatic transmissions engineered for quick ground speeds that leave your yard with a professional-quality finish.

Feature:

• Synchro-Steer™ technology offers 4-wheel control and provides unrivaled stability for straight-line mowing on hillsides and slopes up to 20-degrees
• A 22 HP*/725cc Kohler 7000 series V-twin OHV engine delivers high-performance power and exceptionally smooth, quiet operation
• Dual hydrostatic transmissions allow for quick and effortless 7 MPH forward (3.5 MPH reverse) ground speeds that quickly leaves your lawn with a professional-quality finish
• 46-in. AeroForce fabricated deck that delivers a signature cut with fewer clumps and stragglers, finer clippings and increased evenness.
• Zero-Turn Mower

Specification:

Engine

• Brand: Kohler®
• Model: 7000 Series
• Model Number: KT725
• Displacement: 725cc
• Output: 22HP
• Starter Type: Electric
• Fuel Tank Capacity: 3.5 gal. US (13.25 L)
• Cylinders: Twin
• Engine Start: Ignition Key
• Oil Capacity: 2.0 qt. US (1.89 L)
• Lubrication: Fully pressurized
• Charging System: 12 amp regulated
• Fuel Gauge: No
• Governor: Mechanical
• Choke: Separate Choke
• Air Filter: Dual element
• Oil Filter: Yes
• Fuel Delivery: Carburetor

Battery

• Type: AGM (Absorbent Glass Mat)
• Voltage: 12V
• CCA: 210

Drive System

• Transmission: Hydro-Gear EZT 2200
• Forward Speed: 7 MPH / 11.3 km/h
• Reverse Speed: 3.5 MPH / 5.6 km/h
• System: Hydrostatic

Cutting Deck

• Width: 46 in
• Deck Wash: No
• Material: 11-gauge steel
• Engagement: Electric
• Construction: Fabricated
• Blades: 2
• Lift: Foot pedal with Dial Adjust
• Cutting Height Range: 1'' - 4.5''
• Anti-Scalping: 2 gauge wheels
• Positions: 15

Chassis

• Frame: 2'' x 2'' tubular steel
• Turning Radius: 0°
• ROPS: No
• Tow Hitch: Yes
• Corrosion Protection: Yes

Controls

• Cruise Control: No
• Brakes: Disc
• Steering Control: Steering Wheel

Comfort

• Seat Type: 20" high back
• Armrests: No
• Adjustment: Lever
• Front Suspension: No

Wheels

• Rear Tires: 20”x 8”-8"
• Front Tires: 13"x 6.5"-6"
• Tread: Turf Master / Multi Trac

Specifications

• Series: Ultima Series™ ZTS

Additional Features

• Hour Meter: Available Separately
• Mulch Kit: Available separately
• Headlights: Dual-LED
• Cup Holder: Yes
• Operator Presence System: Yes
• Parking Brake: Hand Lever

Model Number: 17ARGBYNA10

Warranty

• Residential: 3-year unlimited hours
• Frame: Lifetime Limited
• Deck Shell: Lifetime Limited
• Commercial: No

Description:

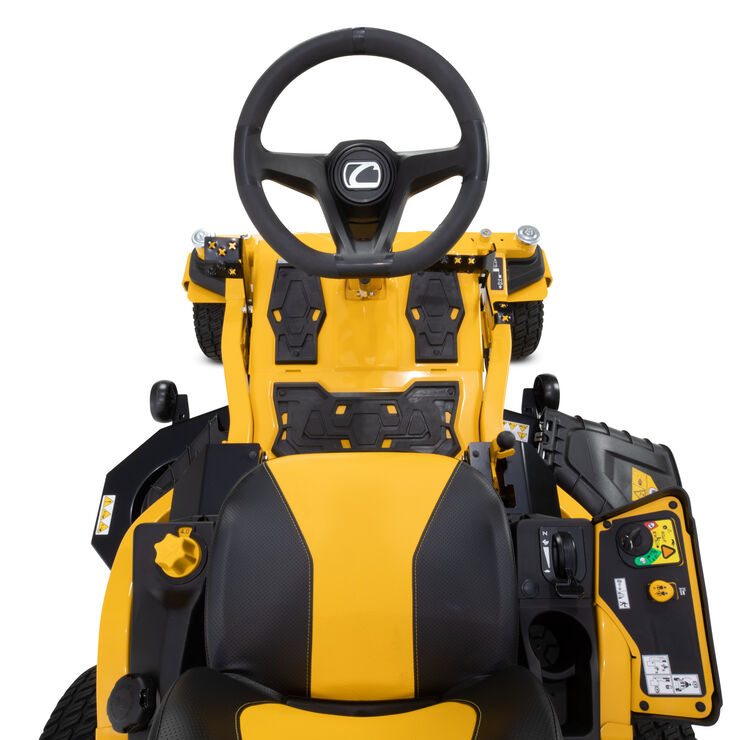

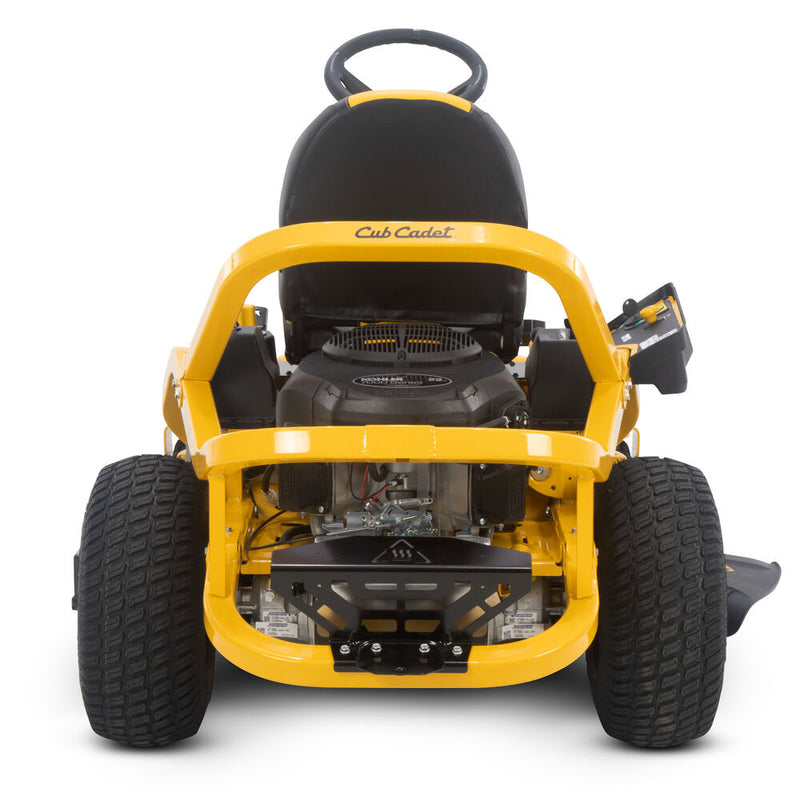

The Cub Cadet® Ultima Series ZTS1 50 50-in. 23 HP* Zero-Turn Lawn Mower with AeroForce™ Fabricated Deck and Synchro-Steer™ Technology is designed to deliver a premium cut with few clumps and stragglers, fine clippings and evenness. Synchro-Steer offers 4-wheel control designed to help provide stability for straight line mowing on hillsides and slopes up to 20-degrees. Dual hydrostatic transmissions engineered for quick ground speeds that leaves your yard with a professional-quality finish.

Feature:

• Synchro-Steer™ technology offers 4-wheel control and provides unrivaled stability for straight-line mowing on hillsides and slopes up to 20-degrees
• A 23 HP*/725cc Kohler 7000 series V-twin OHV engine delivers high-performance power and exceptionally smooth, quiet operation
• Dual hydrostatic transmissions allow for quick and effortless 7 MPH forward (3.5 MPH reverse) ground speeds that quickly leaves your lawn with a professional-quality finish
• 50-in. AeroForce fabricated deck that delivers a signature cut with fewer clumps and stragglers, finer clippings and increased evenness
• Zero-Turn Mower

Specification:

Engine

• Brand: Kohler®
• Model: 7000 Series
• Model Number: KT730
• Displacement: 725cc
• Output: 23HP
• Starter Type: Electric
• Fuel Tank Capacity: 3.5 gal. US (13.25 L)
• Cylinders: Twin
• Engine Start: Ignition Key
• Oil Capacity: 2.0 qt. US (1.89 L)
• Lubrication: Fully pressurized
• Charging System: 12 amp regulated
• Fuel Gauge: No
• Governor: Mechanical
• Choke: Choke-a-matic
• Air Filter: Dual element
• Oil Filter: Yes
• Fuel Delivery: Carburetor

Battery

• Type: AGM (Absorbent Glass Mat)
• Voltage: 12V
• CCA: 210

Drive System

• Transmission: Hydro-Gear EZT 2200
• Forward Speed: 7 MPH / 11.3 km/h
• Reverse Speed: 3.5 MPH / 5.6 km/h
• System: Hydrostatic

Cutting Deck

• Width: 50 in
• Deck Wash: No
• Material: 11-gauge steel
• Engagement: Electric
• Construction: Fabricated
• Blades: 3
• Lift: Foot pedal with Dial Adjust
• Cutting Height Range: 1'' - 4.5''
• Anti-Scalping: 3 gauge wheels
• Positions: 15

Chassis

• Frame: 2'' x 2'' tubular steel
• Turning Radius: 0°
• ROPS: No
• Tow Hitch: Yes
• Corrosion Protection: Yes

Controls

• Cruise Control: No
• Brakes: Disc
• Steering Control: Steering Wheel

Comfort

• Seat Type: 20" high back
• Armrests: No
• Adjustment: Lever
• Front Suspension: No

Wheels

• Rear Tires: 20”x 10”-8"
• Front Tires: 13"x 6.5"-6"
• Tread: Turf Master / Multi Trac

Specifications

• Series: Ultima Series™ ZTS

Additional Features

• Hour Meter: No
• Mulch Kit: Available separately
• Headlights: Dual-LED
• Cup Holder: Yes
• Operator Presence System: Yes
• Parking Brake: Hand Lever

Model Number: 17ARGBYLA10

Warranty

• Residential: 3-year unlimited hours
• Frame: Lifetime Limited
• Deck Shell: Lifetime Limited
• Commercial: No

Description:

The STIHL® RZ 752i is built for hard work and operator comfort featuring a 52” mowing deck and an innovative suspension system that create a smooth, stable ride. The Vanguard® Electronic Fuel Injection (EFI) engine with Oil Guard™ provides fuel efficiency and extends maintenance intervals. Built with heavy-duty, commercial-grade materials and components, this mower is made to take on tough jobs.

Features:

• Vanguard® Oil Guard™ System – Vanguard® Oil Guard™ System features a separate oil tank, transferring cool oil to the engine—helping oil last longer, increasing working times, and allowing for less maintenance.
• Commercial-Grade Hydro-Gear® ZT-4400 Transaxles – Hydro-Gear® ZT-4400 transaxles enable ten mph forward ground speed and five mph in reverse, helping allow for smooth and efficient cutting.
• Heavy-Duty 8” Cast Iron Greaseable Mower Deck Spindles – The STIHL® RZ 700 Series’ eight-inch cast iron greaseable mower deck spindles are easy to maintain.
• Deluxe Seat with Armrests – Deluxe seating includes armrests to ensure a comfortable ride throughout the job.
• Large Fuel Capacity – With a fuel gauge that is visible from the operator's seat, not only can users monitor fuel level and experience fuel coverage for large jobs, but the wide opening also makes fueling easy.
• Four-Wheel Suspension System with Independent Front Suspension and Rear Shock Absorbers – Adjustable to suit your yard’s terrain, the rear suspension uses shock absorbers to help stabilize the machine for a consistent cutting height and a smooth, comfortable ride.
• Independent Front Suspension with Mower Deck Height Compensation – Independent front suspension features two control arms that connect to shock absorbers, designed to ensure wheels remain perpendicular to the ground throughout the range of travel.
• Swingarm Rear Suspension with Shock Absorbers – The adjustable rear suspension with shock absorbers are designed to help provide performance and comfort while mowing uneven surfaces.
• Efficient Two-Belt Mower Drive System – Two-belt mower drive system results in less strain and flex on the belts, allowing the belts to run cooler and enabling a longer lifespan and less maintenance.
• Two USB-A Ports – Two USB-A ports provide 3.15 amps of power to charge devices.
• Roll Over Protection System (ROPS) – The advanced ROPS features polyurethane blocks to prevent rattling while in motion and conveniently folds for easy storage and trailer transport between jobs.
• Flip-Up Floor Pan – Flip-up floor provides convenient serviceability and cleaning of the mowing deck.
• Foot-Operated Cutting Height – Users can easily adjust the cutting height while seated.
• Dual-Function Hour Meter – Dual-function hour meter tracks both run time and hours of mowing time to assist users in keeping up with regular maintenance tasks.
• Flexible Side Rubber Discharge Chute – Chute allows grass clippings to be released to the side of the mower and out of the way of the cutting path.
• Integrated Cup Holders – Cup holders conveniently keep drinks secure and within reach.
• Trailer Hitch – This zero-turn mower features a rear trailer hitch for towing additional accessories and attachments.*
• *Accessories and attachments sold separately.
• Made in America – A majority of STIHL® products sold in America are made in America of U.S. and global materials.

Specifications:

• Horsepower: 28 hp
• Fuel System: Electronic Fuel Injection (EFI)
• Fuel Tank Capacity: 11 gal
• Displacement: 810 cc
• Transaxles: Hydro-Gear® ZT-4400
• Forward Ground Speed: 10 mph
• Reverse Ground Speed: 5 mph
• Deck Width: 52 in
• Mowing Height Range: 1.5" - 5"
• Deck Construction: Fabricated from 10-gauge steel with a 10-gauge doubler in the spindle area and 1/2" reinforcement plates on the leading edge
• Cutting Height Options: 13
• Blades: 3 - MARBAIN® Hardened
• Front Tires: 13 x 6.5-6
• Rear Tires: 24 x 9.5-12
• Weight: 1,319 lbs
• Power Source: Gas
• Engine Governor: Mechanical
• Lubrication System: Oil Guard™ with 500-Hour Service Interval
• Spindle Shaft Diameter: 1 in
• Spindle Bearings: 2.5" x 1" Dual Ball Bearing
• Spindle Hubs: 7.9" Cast Iron & Greaseable
• USB Amperage: 3.15 A
• Front Suspension Travel: 2.68 in
• Rear Suspension Travel: 2.68 in

Description:

The STIHL® RZ 960i professional zero-turn mower features a 60" commercial-grade mowing deck for cutting wide swaths and taking on the most demanding of mowing jobs. The Vanguard® Electronic Fuel Injection (EFI) engine with Oil Guard™ provides fuel efficiency and extends maintenance intervals. With a premium suspension system and mowing deck height compensation, this mower is made for both hard work and operator comfort.

Features:

• Vanguard® Oil Guard™ System – Vanguard® Oil Guard™ System features a separate oil tank, transferring cool oil to the engine—helping oil last longer, increasing working times, and allowing for less maintenance.
• Commercial-Grade Hydro-Gear® ZT-5400 Transaxles Include 9" Cooling Fans – Hydro-Gear® ZT-5400 transaxles offer a top forward ground speed of twelve mph and a top reverse speed of five mph, as well as nine inch cooling fans to prevent overheating.
• Heavy-Duty 10" Cast Iron Greaseable Mower Deck Spindles with Taper Lock Pulleys – The STIHL® RZ 900 Series features taper lock spindle pulleys to ensure perfect belt alignment and the tightest fit between the pulley and spindle to ensure a long service life.
• Premium Suspension Seat – The STIHL® RZ 900 Series features a premium suspension seat with adjustable backrest, adjustable lumbar support, and adjustable armrests.
• Large Fuel Capacity – With a fuel gauge that is visible from the operator's seat, not only can users monitor fuel level and experience fuel coverage for large jobs, but the wide opening also makes fueling easy.
• Four-Wheel Suspension System with Independent Front Suspension and Rear Shock Absorbers – Adjustable to suit your yard’s terrain, the rear suspension uses shock absorbers to help stabilize the machine for a consistent cutting height and a smooth, comfortable ride.
• Independent Front Suspension with Mower Deck Height Compensation – Independent front suspension features two control arms that connect to shock absorbers, designed to ensure wheels remain perpendicular to the ground throughout the range of travel.
• Swingarm Rear Suspension with Shock Absorbers – The adjustable rear suspension with shock absorbers are designed to help provide performance and comfort while mowing uneven surfaces.
• Efficient Two-Belt Mower Drive System – Two-belt mower drive system results in less strain and flex on the belts, allowing the belts to run cooler and enabling a longer lifespan and less maintenance.
• Two USB-A Ports – Two USB-A ports provide 3.15 amps of power to charge devices.
• Roll Over Protection System (ROPS) – The advanced ROPS features polyurethane blocks to prevent rattling while in motion and conveniently folds for easy storage and trailer transport between jobs.
• Flip-Up Floor Pan – Flip-up floor provides convenient serviceability and cleaning of the mowing deck.
• Foot-Operated Cutting Height – Users can easily adjust the cutting height while seated.
• Dual-Function Hour Meter – Dual-function hour meter tracks both run time and hours of mowing time to assist users in keeping up with regular maintenance tasks.
• Flexible Side Rubber Discharge Chute – Chute allows grass clippings to be released to the side of the mower and out of the way of the cutting path.
• Integrated Cup Holders – Cup holders conveniently keep drinks secure and within reach.
• Trailer Hitch – This zero-turn mower features a rear trailer hitch for towing additional accessories and attachments.*
• *Accessories and attachments sold separately.
• Made in America – A majority of STIHL® products sold in America are made in America of U.S. and global materials.

Specifications:

• Horsepower: 40 hp
• Fuel System: Electronic Fuel Injection (EFI)
• Fuel Tank Capacity: 11 gal.
• Displacement: 993 cc
• Transaxles: ZT-5400 Hydro-Gear® with 9" cooling fans
• Forward Ground Speed: 12 mph
• Reverse Ground Speed: 5 mph
• Deck Width: 60 in.
• Mowing Height Range: 1.5" - 5"
• Deck Construction: Fabricated from 10-gauge steel with a 10-gauge doubler in the spindle area and 1/2" reinforcement plates on the leading edge
• Cutting Height Options: 13
• Blades: 3 - MARBAIN® Hardened
• Front Tires: 13 x 6.5-6 – Flat Free
• Rear Tires: 26 x 12-12
• Weight: 1,631 lbs.
• Power Source: Gas
• Engine Governor: Electronic Throttle Control
• Lubrication System: Oil Guard™ with 500-Hour Service Interval
• Spindle Bearings: 2.5" x 1.18" Double Row Angular Ball Bearings
• Spindle Hubs: 10" Cast Iron & Greaseable
• USB Amperage: 3.15 A
• Front Suspension Travel: 2.68 in.
• Rear Suspension Travel: 2.68 in.

Description:

The RMA 510 gives homeowners the performance of a gasoline-powered mower without any of the hassles. Enjoy instant starting, less noise, zero gasoline costs, and zero exhaust emissions. It features a 21" steel mowing deck, so you can cover more lawn faster than previous models. The RMA 510 also includes a holding slot for a second battery, so you can swap batteries and be ready to cut again in seconds. It also features an adjustable handlebar, grass catcher, and large rear wheels for rough terrain. This battery-powered lawn mower is great for small to medium suburban yards.

On A Single Charge™. *Run time may vary based on battery type, charge level and capacity, model, operating style, and conditions. Batteries and chargers can be purchased separately or as a combined set with tool.

Features:

• 21-Inch Steel Mowing Deck - Users can trust that the steel mowing deck will provide more durability than a plastic alternative.
• Convenient Handle - Not only is the handlebar is easily adjustable for user comfort, it also folds making it easy to transport and store the mower.
• Brushless Motor - The advanced brushless motor virtually eliminates maintenance while supplying the power and performance you expect from STIHL®.
• Ball Bearing Wheels - The sealed ball bearing wheels are designed for long life.
• Multiple Storage Options - The mower can be stowed in three positions: folded on all four wheels, unfolded on all four wheels, or upright and folded in the cleaning position with blades facing the wall to save floor space.
• Battery Life - With no gradual drop in power, users can work at full speed until the battery is depleted.
• Power Switch - Just push the button and pull the switch lever for instant startup.
• Locking Key - Key prevents accidental starting of the motor.
• Reduced-Emission Engine Technology—Caring for Nature - The STIHL® Inc. “Caring for Nature” seal identifies its powered products that are more environmentally conscious, producing zero or low exhaust emissions. STIHL® Inc. defines “low exhaust emissions” as being cleaner than EPA and/or CARB exhaust emission standards.

Specifications:

• Cutting Height: 1.4" - 3.5"
• Power Source: Battery
• Weight: 59.5 lbs.
• Deck Width: 21 in.
• Cutting Width: 20 in.
• Area Mowed (with AP 300 S): 3,616 sq. ft.
• Battery System: AP System
• Self-Propelled: No
• Grass Catcher Capacity: 19.8 gal.

Description:

With an advanced suspension system and a commercial-grade 52” mowing deck, the STIHL® RZ 552 zero-turn mower is built for durability, operator comfort, and a long life span. The 27 hp Briggs & Stratton® engine with five-step cyclonic air filtration allows for longer service intervals between filter changes, and the Hydro-Gear® ZT-3400 transaxles enable ten mph forward ground speed and five mph in reverse, allowing for smooth and efficient cutting.

Features:

• Briggs & Stratton® 27 hp Carbureted Engine – The STIHL® RZ 552 & STIHL® RZ 560 feature a 27 hp Briggs & Stratton® carbureted engine for reliable operation and consistent power output.
• Commercial-Grade Hydro-Gear® ZT-3400 Transaxles – Hydro-Gear® ZT-3400 transaxles enable ten mph forward ground speed and five mph in reverse, allowing for smooth and efficient cutting.
• Greaseable Mower Deck Spindles – Greaseable mower spindles allow for user maintenance and extend the life span of each spindle.
• Deluxe Seat with Armrests – Deluxe seating includes armrests to ensure a comfortable ride throughout the job.
• Large Fuel Capacity – With a fuel gauge that is visible from the operator's seat, not only can users monitor fuel level and experience fuel coverage for large jobs, but the wide opening also makes fueling easy.
• Four-Wheel Suspension System with Independent Front Suspension and Rear Shock Absorbers – Adjustable to suit your yard’s terrain, the rear suspension uses shock absorbers to help stabilize the machine for a consistent cutting height and a smooth, comfortable ride.
• Independent Front Suspension with Mower Deck Height Compensation – Independent front suspension features two control arms that connect to shock absorbers, designed to ensure wheels remain perpendicular to the ground throughout the range of travel.
• Swingarm Rear Suspension with Shock Absorbers – The adjustable rear suspension with shock absorbers are designed to help provide performance and comfort while mowing uneven surfaces.
• Efficient Two-Belt Mower Drive System – Two-belt mower drive system results in less strain and flex on the belts, allowing the belts to run cooler and enabling a longer lifespan and less maintenance.
• Two USB-A Ports – Two USB-A ports provide 3.15 amps of power to charge devices.
• Roll Over Protection System (ROPS) – The advanced ROPS features polyurethane blocks to prevent rattling while in motion and conveniently folds for easy storage and trailer transport between jobs.
• Flip-Up Floor Pan – Flip-up floor provides convenient serviceability and cleaning of the mowing deck.
• Foot-Operated Cutting Height – Users can easily adjust the cutting height while seated.
• Dual-Function Hour Meter – Dual-function hour meter tracks both run time and hours of mowing time to assist users in keeping up with regular maintenance tasks.
• Flexible Side Rubber Discharge Chute – Chute allows grass clippings to be released to the side of the mower and out of the way of the cutting path.
• Integrated Cup Holders – Cup holders conveniently keep drinks secure and within reach.
• Trailer Hitch – This zero-turn mower features a rear trailer hitch for towing additional accessories and attachments.*
• *Accessories and attachments sold separately.
• Made in America – A majority of STIHL® products sold in America are made in America of U.S. and global materials.

Specification:

Engine:

• Horsepower: 27 hp
• Fuel System: Carbureted
• Fuel Tank Capacity: 5.5 gallons
• Displacement: 810 cc
• Engine Governor: Briggs & Stratton®

Transmission:

• Transaxles: Hydro-Gear® ZT-3400
• Forward Ground Speed: 10 mph
• Reverse Ground Speed: 5 mph

Mower Deck:

• Deck Width: 52 inches
• Mowing Height Range: 1.5 inches - 5 inches
• Deck Construction: Fabricated 10-gauge steel with 3/8-inch reinforcement plates
• Cutting Height Options: 13
• Blades: 3 MARBAIN® Hardened blades

Tires:

• Front Tires: 13 x 6.5-6
• Rear Tires: 23 x 10.5-12

Other Specifications:

• Weight: 1,232 lbs.
• Power Source: Gas
• Spindle Shaft Diameter: 1 inch
• Spindle Bearings: 2.5 inches x 1 inch Dual Ball Bearing
• USB Amperage: 3.15 A
• Front Suspension Travel: 2.05 inches
• Rear Suspension Travel: 2.68 inches

Description:

Enjoy a smooth ride and take on tough jobs with the STIHL® RZ 760i zero-turn mower featuring an innovative suspension system with mowing deck height compensation and a 60" mowing deck for wide cutting swaths. The Vanguard® Electronic Fuel Injection (EFI) engine with Oil Guard™ System provides reliable operation.

Features:

• Vanguard® Oil Guard™ System – Vanguard® Oil Guard™ System features a separate oil tank, transferring cool oil to the engine—helping oil last longer, increasing working times, and allowing for less maintenance.
• Commercial-Grade Hydro-Gear® ZT-4400 Transaxles – Hydro-Gear® ZT-4400 transaxles enable ten mph forward ground speed and five mph in reverse, helping allow for smooth and efficient cutting.
• Heavy-Duty 8” Cast Iron Greaseable Mower Deck Spindles – The STIHL® RZ 700 Series’ eight-inch cast iron greaseable mower deck spindles are easy to maintain.
• Deluxe Seat with Armrests – Deluxe seating includes armrests to ensure a comfortable ride throughout the job.
• Large Fuel Capacity – With a fuel gauge that is visible from the operator's seat, not only can users monitor fuel level and experience fuel coverage for large jobs, but the wide opening also makes fueling easy.
• Four-Wheel Suspension System with Independent Front Suspension and Rear Shock Absorbers – Adjustable to suit your yard’s terrain, the rear suspension uses shock absorbers to help stabilize the machine for a consistent cutting height and a smooth, comfortable ride.
• Independent Front Suspension with Mower Deck Height Compensation – Independent front suspension features two control arms that connect to shock absorbers, designed to ensure wheels remain perpendicular to the ground throughout the range of travel.
• Swingarm Rear Suspension with Shock Absorbers – The adjustable rear suspension with shock absorbers are designed to help provide performance and comfort while mowing uneven surfaces.
• Efficient Two-Belt Mower Drive System – Two-belt mower drive system results in less strain and flex on the belts, allowing the belts to run cooler and enabling a longer lifespan and less maintenance.
• Two USB-A Ports – Two USB-A ports provide 3.15 amps of power to charge devices.
• Roll Over Protection System (ROPS) – The advanced ROPS features polyurethane blocks to prevent rattling while in motion and conveniently folds for easy storage and trailer transport between jobs.
• Flip-Up Floor Pan – Flip-up floor provides convenient serviceability and cleaning of the mowing deck.
• Foot-Operated Cutting Height – Users can easily adjust the cutting height while seated.
• Dual-Function Hour Meter – Dual-function hour meter tracks both run time and hours of mowing time to assist users in keeping up with regular maintenance tasks.
• Flexible Side Rubber Discharge Chute – Chute allows grass clippings to be released to the side of the mower and out of the way of the cutting path.
• Integrated Cup Holders – Cup holders conveniently keep drinks secure and within reach.
• Trailer Hitch – This zero-turn mower features a rear trailer hitch for towing additional accessories and attachments.*
• *Accessories and attachments sold separately.
• Made in America – A majority of STIHL® products sold in America are made in America of U.S. and global materials.

Specifications

• Horsepower: 28 hp
• Fuel System: Electronic Fuel Injection (EFI)
• Fuel Tank Capacity: 11 gal.
• Displacement: 810 cc
• Transaxles: Hydro-Gear® ZT-4400
• Forward Ground Speed: 10 mph
• Reverse Ground Speed: 5 mph
• Deck Width: 60 in.
• Mowing Height Range: 1.5" - 5"
• Deck Construction: Fabricated from 10-gauge steel with a 10-gauge doubler in the spindle area and 1/2" reinforcement plates on the leading edge
• Cutting Height Options: 13
• Blades: 3 - MARBAIN® Hardened
• Front Tires: 13 x 6.5-6
• Rear Tires: 24 x 12-12
• Weight: 1,406 lbs.
• Power Source: Gas
• Engine Governor: Mechanical
• Lubrication System: Oil Guard™
• Spindle Shaft Diameter: 1 in.
• Spindle Bearings: 2.5" x 1" Dual Ball Bearing
• Spindle Hubs: 7.9" Cast Iron & Greaseable
• USB Amperage: 3.15 A
• Front Suspension Travel: 2.68 in.
• Rear Suspension Travel: 2.68 in
