Description:

Features:

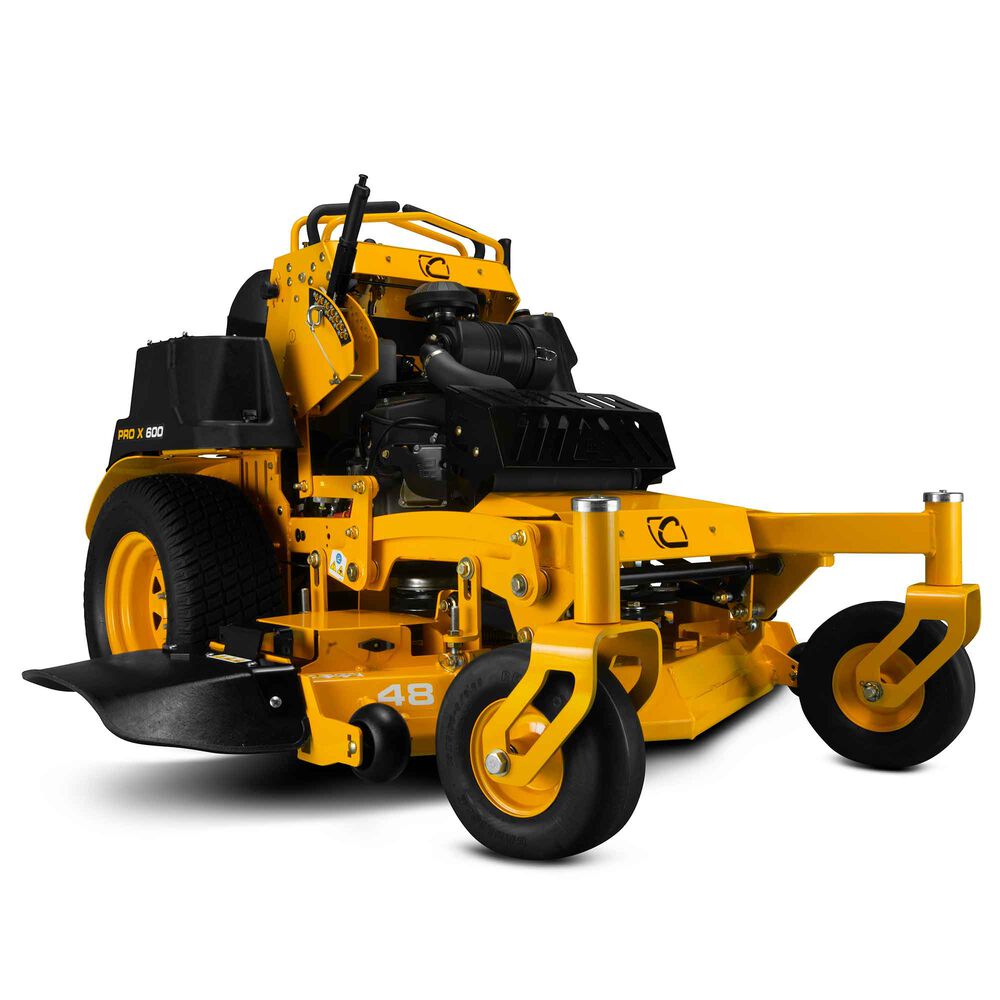

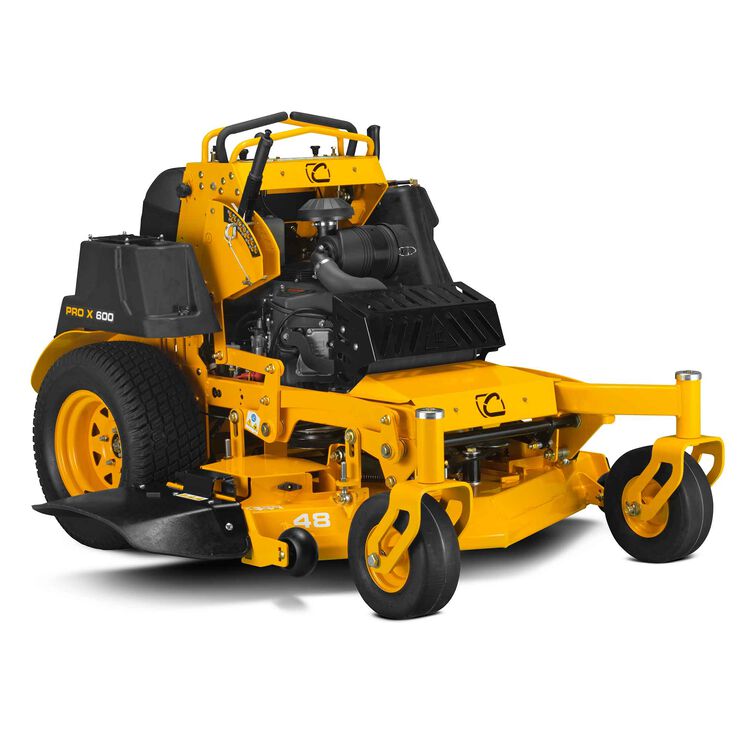

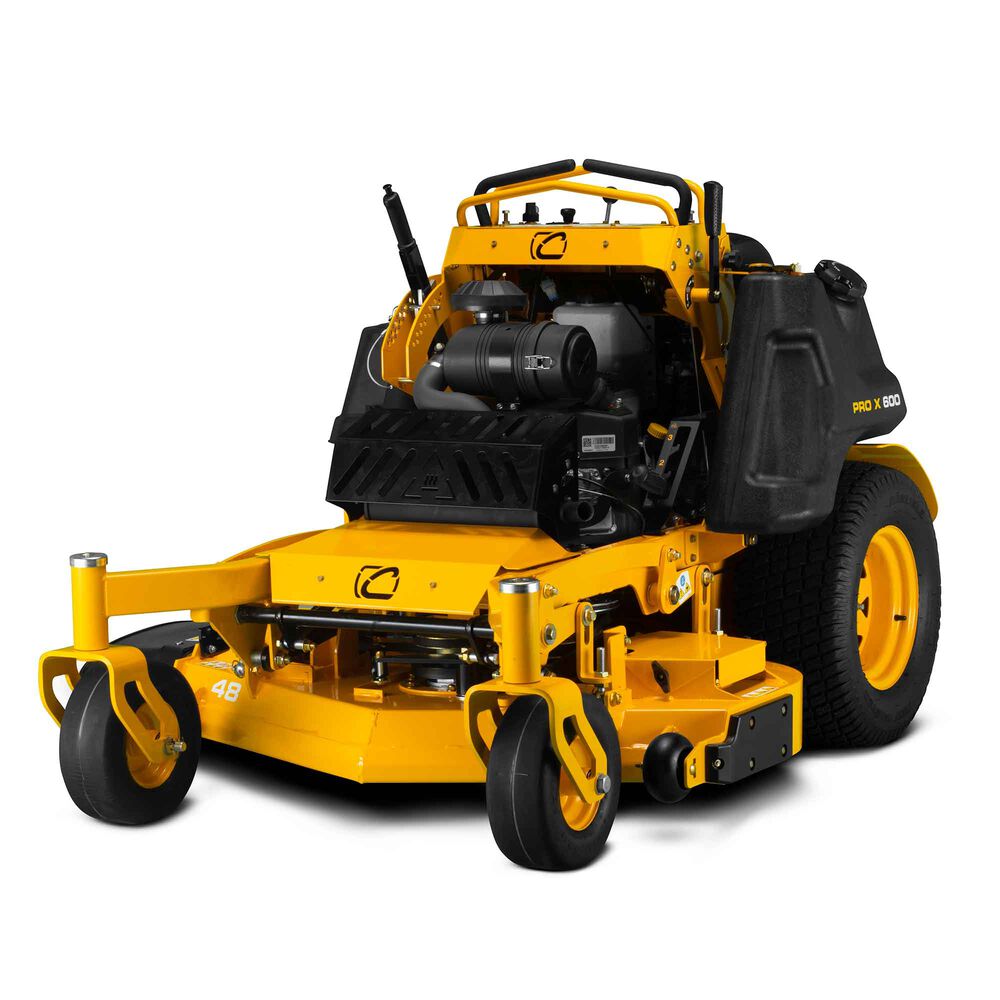

• Commercial-grade 22 hp Kawasaki® FX691V (726cc) engine
• A fully fabricated 48-inch 10-gauge steel commercial deck shell with top bottom and side reinforcements plus standard 24" tires give you more ground clearance to easily hop on curbs.
• A large, fully adjustable suspension platform allows you to adjust tension and glide comfortably through tough terrains.
• High-performance commercial Hydro-Gear® PK 12cc pumps & Parker® TL 240cc wheel motors deliver quick response to the drive wheels and smooth control for cutting speeds up to 10 mph.
• 3-year limited commercial warranty (no hour limitations) and 5-year/1,750-hour limited deck assembly warranty.

Specifications:

• Engine Brand
• Kawasaki®
• Engine Model
• FX Series
• Engine Model Number
• 691V
• Engine Displacement
• 726cc
• Engine Output
• 22HP
• Starter Type
• Electronic with quick reset
• Fuel Tank Capacity
• 7.5 gal. US (28.4 L)
• Cylinders
• Twin
• Engine Start
• Ignition Key
• Engine Oil Capacity
• 2.0 qt. US (1.89 L)
• Lubrication
• Fully pressurized
• Charging System
• 15 amp regulated
• Fuel Gauge
• No
• Choke
• Separate Choke
• Air Filter
• High Density
• Oil Filter
• Yes
• Fuel Delivery
• Carburetor

Drive System

• Transmission
• 12cc Hydro-Gear® pumps / 240cc Parker® wheel motors
• Forward Speed
• 10 mph / 16 km/h
• Reverse Speed
• 5 mph / 8 km/h

Cutting Deck

• Deck Cutting Width
• 48 in
• Deck Engagement (PTO)
• Electric
• Deck Construction
• 10 ga shell w/ 7 ga top & bottom reinforcement
• Spindle Construction
• HD 8" aluminum housing, 35mm double-row sealed ball bearings, 1-3/8" through-shaft and maintenance-free design
• Blade(s)
• 3 17" long high-lift Marbain® blades, 1-1/2" of blade overlap
• Deck Lift
• Hand lever adjusting spring lift, pin selector for height
• Cutting Height Range
• 1.5”- 4.5”
• Anti-Scalping
• 2 front deck gauge wheels

Chassis

• Frame
• 2" x 3" full-length tube frame
• Front Axle
• 2" x 3" tube construction
• Front Caster Mount
• 3/8" thick steel
• Suspension

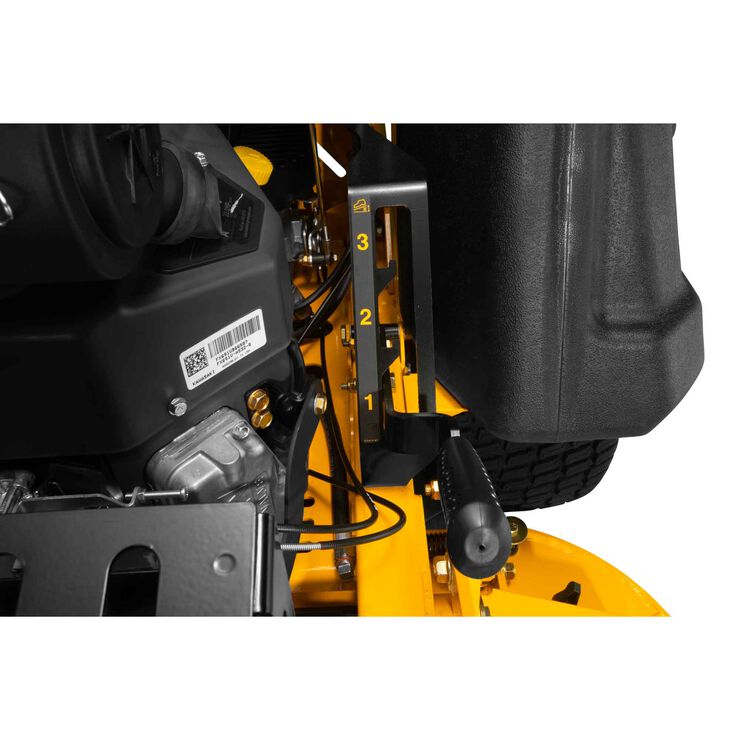

• Hand lever adjust, 3-position spring suspension foot platform

Controls

• Cruise Control
• NA
• Brakes
• Hand lever control / external band
• Steering Control
• Lap Bar Steering Wheel Control

Wheels

• Rear Tires
• 24"x9.5"-12"
• Front Tires
• 13x5-6" Reliance Run Flat carlisle

Dimensions

• Dimensions L/W/H
• 69" / 62" / 50"
• Weight (approx.)
• 1015 lbs
