Description:

Cub Cadet® Enduro Series XT2 SLX50 50-in. 24 HP* Riding Lawn Mower with AeroForce™ Fabricated Deck is designed to deliver a premium cut with few clumps and stragglers, fine clippings and evenness. Features a hydrostatic transmission that helps provide a smooth operation. An adjustable cut and sew high back 15-in. seat designed to provide comfort for an excellent mowing experience.

Features:

• A strong 24 HP*/725cc twin-cylinder Kohler® HD engine is designed to deliver reliable power to tackle your yard.
• 50-in. strong AeroForce™ fabricated deck is designed to deliver a premium cut with few clumps and stragglers, fine clippings and evenness.
• Compact AGM battery is designed to deliver a premium experience with a long lifespan, low maintenance and excellent starting performance for reliable starting season to season.
• Hydrostatic transmission helps provide smooth operation, no shifting, just push the pedal and go.
• Adjustable cut and sew high back 15-in. seat with armrests and 10-degree incline and slide slope helps provides comfort.

Specifications:

Engine

• Brand: Kohler®
• Model: 7000 Series HD (KT735)
• Displacement: 725cc
• Output: 24 HP
• Cylinders: Twin
• Starter: Electric (Ignition Key)
• Fuel Capacity: 3.0 gal (11.36 L)
• Oil Capacity: 2.0 qts (1.89 L)
• Lubrication: Fully pressurized
• Charging System: 12 amp regulated
• Governor: Mechanical
• Choke: Separate
• Air Filter: Single element
• Oil Filter: Yes
• Fuel Delivery: Carburetor

Battery

• Type: AGM (Absorbent Glass Mat)
• Voltage: 12V
• CCA: 210

Drive System

• Transmission: Tuff Torq® K46
• Drive Type: Hydrostatic
• Control: Foot Pedal
• Housing: Cast aluminum
• Rear Axle Diameter: 1"
• Forward Speed: 5.5 MPH (8.6 km/h)
• Reverse Speed: 3 MPH (4.8 km/h)
• Rear Differential Lock: No

Cutting Deck

• Width: 50 in
• Material: 11-gauge steel
• Construction: Fabricated
• Blades: 3
• Deck Engagement: Electric PTO
• Deck Lift: Manual
• Cutting Height Range: 1" – 4"
• Positions: 12
• Deck Wash: Yes
• Anti-Scalping Wheels: 4

Chassis

• Frame: Robotically welded
• Turning Radius: 16"
• Bumper: Brush Guard
• Rear Tow Hitch: Yes
• Corrosion Protection: Yes
• Front Pivot Bar: Cast iron

Controls & Comfort

• Cruise Control: Yes
• Brakes: Disc
• Seat Type: 15" High-back
• Armrests: Yes
• Seat Adjustment: Lever
• Floor Mats: Rubber

Wheels

• Front Tires: 16"x 6.5"-8"
• Rear Tires: 22"x 9.5"-12"
• Tire Tread: Turf Master
• Bearing Type: Ball Bearing

Additional Features

• Series: XT2® Enduro Series™
• Hour Meter: Yes
• Mulch Kit: Available separately
• Headlights: Dual LED
• Cup Holder: Yes
• Operator Presence System: Yes

Warranty

• Residential Warranty: 3-year unlimited hours
• Frame Warranty: 5-year limited
• Front Axle Warranty: 5-year unlimited hours
• Deck Shell Warranty: Lifetime limited
• Commercial Warranty: Not applicable

Description

The Cub Cadet ZT1 42 FAB is a powerful and efficient zero-turn mower that delivers exceptional performance and precision cutting. Its main features include a 42-inch fabricated deck made of heavy-duty steel that provides superior cutting quality, as well as a powerful 18 HP/726cc Kawasaki FR691 twin-cylinder OHV engine delivers high-performance power to tackle your yard The ZT1 42 FAB also features a comfortable high-back seat, dual hydrostatic transmissions, and a smooth and easy-to-operate lap bar steering system. With its high-quality construction, advanced features, and impressive performance, this mower can make mowing your lawn a breeze, saving you time and effort while achieving a perfectly manicured lawn.

Product Highlights

• A 18 HP/726cc Kawasaki FR691 twin-cylinder OHV engine delivers high-performance power to tackle your yard
• Dual hydrostatic transmissions allow for quick and effortless 7 MPH forward (3.5 MPH reverse) ground speeds that leaves your lawn with a professional-quality finish
• A continuous square 2 in. x 2 in. tubular steel frame with fully e-coat lower frame and triple guard corrosion defense system, a multi-step process that electronically applies automotive-grade corrosion resistance with meticulous care to protect against wear and tear
• 42-in. AeroForce fabricated deck that delivers a signature cut with fewer clumps and stragglers, finer clippings and increased evenness.

Product Specifications

Engine

• Engine Brand: Kawasaki®
• Engine Model: FR Series
• Engine Model Number: 600V
• Engine Displacement: 726cc
• Engine Output: 18HP
• Starter Type: Electric
• Fuel Tank Capacity: 3.5 gal. US (13.25 L)
• Cylinders: Twin
• Engine Start: Ignition Key
• Engine Oil Capacity: 1.8 qts. US (1.7 L)
• Lubrication: Fully pressurized
• Charging System: 12 amp regulated
• Fuel Gauge: No
• Governor: Mechanical
• Choke: Separate Choke
• Air Filter: Dual element
• Oil Filter: Yes
• Fuel Delivery: Carburetor

Battery

• Battery: 210 CCA
• Battery Type: AGM (Absorbent Glass Mat)
• Battery Voltage: 12V

Drive System

• Transmission: Hydro-Gear EZT 2200
• Forward Speed: 7 MPH / 11.3 km/h
• Reverse Speed: 3.5 MPH / 5.6 km/h
• Drive System: Hydrostatic

Cutting Deck

• Deck Cutting Width: 42 in
• Deck Wash: No
• Deck Material: 11-gauge steel
• Deck Engagement (PTO): Electric
• Deck Construction: Fabricated
• Blade(s): Two
• Deck Lift: Foot pedal with Dial Adjust
• Cutting Height Range: 1'' - 4.5''
• Anti-Scalping: Two gauge wheels
• Deck Positions: 15

Warranty

• Warranty: 3-year unlimited hours
• Frame Warranty: Lifetime Limited
• Deck Shell Warranty: Lifetime Limited
• Commercial Warranty: No

Chassis

• Frame: 2'' x 2'' tubular steel
• Turning Radius: 0°
• ROPS: No
• Rear Tow Hitch: Yes
• Corrosion Protection: Yes

Controls

• Cruise Control: No
• Brakes: Disc
• Steering Control: Lap Bars

Comfort

• Seat Type: 20" high back
• Armrest: sNo
• Seat Adjustment: Knob

Wheels

• Rear Tires: 20”x 8”-8"
• Front Tires: 11"x 6"-5"
• Tire Tread: Turf Master / Multi Trac

Additional Specifications

• Hour Meter: No
• Mulch Kit: Available separately
• Headlight(s): Dual-LED
• Cup Holder: Yes
• Operator Presence System: Yes
• Parking Brake: Lap Bar Integrated
• Model Number: 17RIEACE010

Specifications

• Series: Ultima Series™ ZT

Disclaimers

• Specifications: Specifications subject to change without notice and without incurring obligation. Products depicted on website and other advertisements are for demonstration purposes only. Actual products offered for sale may vary in design, required attachments, safety features and non-functional appearance from. See other general disclaimers at the bottom of our website.

Description:

The Cub Cadet® Ultima Series ZT1 54P is a 54-inch zero-turn lawn mower with a 23 HP engine and an AeroForce™ fabricated deck. It is built to provide a high-quality cut with few clumps and an even finish. The mower features dual hydrostatic transmissions for quick ground speeds, giving your yard a professional look. Its durable tubular steel frame has a fully e-coated corrosion defense system to protect against wear and tear.

Features:

• A premium 23 HP/726cc Kawasaki FR691V twin-cylinder OHV engine, commercial-grade power that meets your yard's toughest demands
• Ride in ultimate comfort thanks to a front caster suspension that delivers up to 770 lbs. of shock absorption to help reduce vibration*
• Dual hydrostatic transmissions allow for quick and effortless 7 MPH forward (3.5 MPH reverse) ground speeds that leaves your lawn with a professional-quality finish
• 54-in. AeroForce fabricated deck that delivers a signature cut with fewer clumps and stragglers, finer clippings and increased evenness.

Specification:

Engine:

• Engine Brand: Kawasaki®
• Engine Model: FR Series 691V
• Engine Model Number: 691V
• Engine Displacement: 726cc
• Engine Output: 23HP
• Starter Type: Electric
• Fuel Tank Capacity: 3.5 gal. US (13.25 L)
• Cylinders: Twin
• Engine Start: Ignition Key
• Engine Oil Capacity: 2.1 qt US (2 L)
• Lubrication: Fully pressurized
• Charging System: 15 amp regulated
• Fuel Gauge: No
• Governor: Mechanical
• Choke: Separate Choke
• Air Filter: Dual element
• Oil Filter: Yes
• Fuel Delivery: Carburetor

Battery:

• Battery: 210 CCA
• Battery Type: AGM (Absorbent Glass Mat)
• Battery Voltage: 12V

Drive System:

• Transmission: Hydro-Gear EZT 2200
• Forward Speed: 7 MPH / 11.3 km/h
• Reverse Speed: 3.5 MPH / 5.6 km/h
• Drive System: Hydrostatic

Cutting Deck:

• Deck Cutting Width: 54 in
• Deck Wash: No
• Deck Material: 11-gauge steel
• Deck Engagement (PTO): Electric
• Deck Construction: Fabricated
• Blade(s): Three
• Deck Lift: Foot pedal with Dial Adjust
• Cutting Height Range: 1'' - 4.5''
• Anti-Scalping: Three gauge wheels
• Deck Positions: 15

Chassis:

• Frame: 2'' x 2'' tubular steel
• Turning Radius: 0°
• ROPS (Roll Over Protection System): No
• Rear Tow Hitch: Yes
• Corrosion Protection: Yes

Controls:

• Cruise Control: No
• Brakes: Disc
• Steering Control: Lap Bars

Comfort:

• Seat Type: 20" high back
• Armrests: No
• Seat Adjustment: Knob
• Front Caster Suspension: Yes

Wheels:

• Rear Tires: 20''x 12''- 8''
• Front Tires: 11"x 6"-5"
• Tire Tread: Turf Master / Multi Trac

Specifications:

• Series: Ultima Series™ ZT
• Additional Specifications:
• Hour Meter: Available Separately
• Mulch Kit: Available separately
• Headlight(s): Dual-LED
• Cup Holder: Yes
• Operator Presence System: Yes
• Parking Brake: Lap Bar Integrated
• Model Number: 17AIEACMA10

Warranty:

• Residential Warranty: 3-year unlimited hours
• Frame Warranty: Lifetime Limited
• Deck Shell Warranty: Lifetime limited
• Commercial Warranty: No

Description:

The Cub Cadet® Ultima Series ZT1 46 is a 46-inch zero-turn lawn mower with a 21.5 HP engine and an AeroForce™ fabricated deck. It is built to provide a high-quality cut with few clumps and an even finish. The mower features dual hydrostatic transmissions for quick ground speeds, giving your yard a professional look. Its durable tubular steel frame has a fully e-coated corrosion defense system to protect against wear and tear.

Features:

• A 21.5 HP*/726cc Kawasaki FR651V twin-cylinder OHV engine delivers high-performance power to tackle your yard
• Dual hydrostatic transmissions allow for quick and effortless 7 MPH forward (3.5 MPH reverse) ground speeds that leaves your lawn with a professional-quality finish
• 46-in. AeroForce fabricated deck that delivers a signature cut with fewer clumps and stragglers, finer clippings and increased evenness
• A continuous square 2 in. x 2 in. tubular steel frame with fully e-coat lower frame and triple guard corrosion defense system, a multi-step process that electronically applies automotive-grade corrosion resistance with meticulous care to protect against wear and tear

Specification:

Engine

• Brand: Kawasaki®
• Series: FR Series
• Model Number: 651V
• Displacement: 726cc
• Output: 21.5 HP
• Cylinders: Twin
• Start Type: Electric (Ignition Key)
• Lubrication: Fully pressurized
• Oil Capacity: 2.0 qt. US (1.89 L)
• Governor: Mechanical
• Choke: Separate Choke
• Air Filter: Dual Element
• Fuel Delivery: Carburetor
• Fuel Capacity: 3.5 gal. US (13.25 L)
• Charging System: 12 amp regulated
• Fuel Gauge: No

Battery

• Voltage: 12V
• CCA: 210 CCA
• Type: AGM (Absorbent Glass Mat)

Drive System

• Transmission: Hydro-Gear EZT 2200
• Type: Hydrostatic
• Forward Speed: 7 MPH / 11.3 km/h
• Reverse Speed: 3.5 MPH / 5.6 km/h

Cutting Deck

• Width: 46 in
• Blades: 2
• Deck Material: 11-gauge steel
• Construction: Fabricated
• Engagement (PTO): Electric
• Lift System: Foot pedal with Dial Adjust
• Cutting Height Range: 1" - 4.5"
• Deck Positions: 15
• Anti-Scalp Wheels: 2
• Deck Wash Port: No

Chassis

• Frame: 2" x 2" tubular steel
• Turning Radius: 0° (True Zero-Turn)
• ROPS: No
• Rear Tow Hitch: Yes
• Corrosion Protection: Yes

Controls

• Steering: Lap Bars
• Brakes: Disc
• Cruise Control: No
• Parking Brake: Integrated with Lap Bars

Comfort

• Seat Type: 20" High-back
• Armrests: No
• Seat Adjustment: Knob
• Front Suspension: None

Wheels

• Rear Tires: 20"x 8"-8"
• Front Tires: 11"x 6"-5"
• Tread: Turf Master / Multi Trac

Features

• Hour Meter: Available Separately
• Mulch Kit: Available Separately
• Headlights: Dual LED
• Cup Holder: Yes
• Operator Presence System: Yes

Product Info

• Model Number: 17AIEACNA10
• Series: Ultima Series™ ZT

Warranty

• Residential Warranty: 3-year unlimited hours
• Frame Warranty: Lifetime Limited
• Deck Shell Warranty: Lifetime Limited
• Commercial Warranty: Not Applicable

Description:

The Cub Cadet® Ultima Series ZT1 50 50-in. 23 HP* Zero-Turn Lawn Mower with AeroForce™ Fabricated Deck is designed to deliver a premium cut with few clumps and stragglers, fine clippings and evenness. Dual hydrostatic transmissions engineered for quick ground speeds that leaves your yard with a professional-quality finish. A continuous tubular steel frame with fully e-coated corrosion defense system designed to help protect against wear and tear.

Features:

• A premium 23 HP*/726cc Kawasaki FR691V twin-cylinder OHV engine, commercial-grade power that meets your yard's toughest demands
• Dual hydrostatic transmissions allow for quick and effortless 7 MPH forward (3.5 MPH reverse) ground speeds that leaves your lawn with a professional-quality finish
• 50-in. AeroForce fabricated deck that delivers a signature cut with fewer clumps and stragglers, finer clippings and increased evenness
• Zero-Turn Mower

Specification:

Engine:

• Engine Brand: Kawasaki®
• Engine Model: FR Series 691V
• Engine Displacement: 726cc
• Engine Output: 23HP
• Starter Type: Electric
• Fuel Tank Capacity: 3.5 gal. US (13.25 L)
• Cylinders: Twin
• Engine Start: Ignition Key
• Engine Oil Capacity: 2.1 qt US (2 L)
• Lubrication: Fully pressurized
• Charging System: 12 amp regulated
• Fuel Gauge: No
• Governor: Mechanical
• Choke: Separate Choke
• Air Filter: Single element
• Oil Filter: Yes
• Fuel Delivery: Carburetor

Battery:

• Battery: 210 CCA
• Battery Type: AGM (Absorbent Glass Mat)
• Battery Voltage: 12V

Drive System:

• Transmission: Hydro-Gear EZT 2200
• Forward Speed: 7 MPH / 11.3 km/h
• Reverse Speed: 3.5 MPH / 5.6 km/h
• Drive System: Hydrostatic

Cutting Deck:

• Deck Cutting Width: 50 in
• Deck Wash: No
• Deck Material: 11-gauge steel
• Deck Engagement (PTO): Electric
• Deck Construction: Fabricated
• Blade(s): 3
• Deck Lift: Foot pedal with Dial Adjust
• Cutting Height Range: 1'' - 4.5''
• Anti-Scalping: 3 gauge wheels
• Deck Positions: 15

Chassis:

• Frame: 2'' x 2'' tubular steel
• Turning Radius: 0°
• ROPS (Roll Over Protection System): No
• Rear Tow Hitch: Yes
• Corrosion Protection: Yes

Controls:

• Cruise Control: No
• Brakes: Disc
• Steering Control: Lap Bars

Comfort:

• Seat Type: 20" high back
• Armrests: No
• Seat Adjustment: Knob
• Front Caster Suspension: No

Wheels:

• Rear Tires: 20''x 10''- 8''
• Front Tires: 11"x 6"-5"
• Tire Tread: Turf Master / Multi Trac

Specifications:

• Series: Ultima Series™ ZT

Additional Specifications:

• Hour Meter: Available Separately
• Mulch Kit: Available separately
• Headlight(s): Dual-LED
• Cup Holder: Yes
• Operator Presence System: Yes
• Parking Brake: Lap Bar Integrated
• Model Number: 17AIEACLA10

Warranty:

• Residential Warranty: 3-year unlimited hours
• Frame Warranty: Lifetime Limited
• Deck Shell Warranty: Lifetime limited
• Commercial Warranty: No

Description:

The Cub Cadet® Ultima Series ZT1 54 54-in. 24 HP* Zero-Turn Lawn Mower with Aero Force™ Fabricated Deck is designed to deliver a premium cut with few clumps and stragglers, fine clippings and evenness. Dual hydrostatic transmissions engineered for quick ground speeds that leaves your yard with a professional-quality finish. A continuous tubular steel frame with fully e-coated corrosion defense system designed to help protect against wear and tear.

Features:

• A 24HP*/725cc Kohler 7000 Series V-Twin OHV Engine, OHV engine delivers high-performance power and exceptionally smooth, quiet operation
• Dual hydrostatic transmissions allow for quick and effortless 7 MPH forward (3.5 MPH reverse) ground speeds that leaves your lawn with a professional-quality finish
• 54-in. Aero Force fabricated deck that delivers a signature cut with fewer clumps and stragglers, finer clippings and increased evenness
• Zero-Turn Mower

 Specifications:

Engine:

• Brand: Kohler®
• Model: 7000 Series
• Model Number: KT735
• Displacement: 725cc
• Output: 24HP
• Starter Type: Electric
• Fuel Tank Capacity: 3.5 gal. US (13.25 L)
• Cylinders: Twin
• Engine Start: Ignition Key
• Oil Capacity: 2.0 qt. US (1.89 L)
• Lubrication: Fully pressurized
• Charging System: 12 amp regulated
• Fuel Delivery: Carburetor
• Air Filter: Dual element
• Oil Filter: Yes

Battery:

• Type: AGM (Absorbent Glass Mat)
• Capacity: 210 CCA
• Voltage: 12V

Drive System:

• Transmission: Hydro-Gear EZT 2200
• Forward Speed: 7 MPH / 11.3 km/h
• Reverse Speed: 3.5 MPH / 5.6 km/h
• Drive Type: Hydrostatic

Cutting Deck:

• Width: 54 in
• Deck Wash: No
• Material: 11-gauge steel
• Engagement: Electric (PTO)
• Construction: Fabricated
• Blades: 3
• Deck Lift: Foot pedal with Dial Adjust
• Cutting Height: 1'' - 4.5''
• Anti-Scalping: 3 gauge wheels
• Positions: 15

Chassis:

• Frame: 2'' x 2'' tubular steel
• Turning Radius: 0°
• ROPS: No
• Rear Tow Hitch: Yes
• Corrosion Protection: Yes

Controls:

• Cruise Control: No
• Brakes: Disc
• Steering Control: Lap Bars

Comfort:

• Seat Type: 20" high back
• Armrests
• No
• Seat Adjustment
• Knob
• Front Caster Suspension
• No

Wheels

• Rear Tires
• 20''x 10''- 8''
• Front Tires
• 11"x 6"-5"
• Tire Tread
• Turf Master / Multi Trac

Specifications

Series

• Ultima Series™ ZT

Additional Specifications

Hour Meter

• Available Separately
• Mulch Kit
• Available separately
• Headlight(s)
• Dual-LED
• Cup Holder
• Yes
• Operator Presence System
• Yes
• Parking Brake
• Lap Bar Integrated
• Model Number
• 17AREACM010

Warranty

• Residential Warranty
• 3-year unlimited hours
• Frame Warranty
• Lifetime Limited
• Deck Shell Warranty
• Lifetime limited
• Commercial Warranty
• No

Description:

The Cub Cadet® Ultima Series ZT2 50 50-in. 23 HP* Zero-Turn Lawn Mower with AeroForce™ Fabricated Deck is designed to deliver a premium cut with few clumps and stragglers, fine clippings and evenness. Dual hydrostatic transmissions engineered for quick ground speeds that leaves your yard with a professional-quality finish. A continuous tubular steel frame with fully e-coated corrosion defense system designed to help protect against wear and tear.

Features:

• A premium 23 HP*/726cc Kawasaki FR691V twin-cylinder OHV engine, commercial-grade power that meets your yard's toughest demands
• Dual hydrostatic transmissions allow for quick and effortless 7.5 MPH forward (3.5 MPH reverse) ground speeds that leaves your lawn with a professional-quality finish
• 50-in. AeroForce fabricated deck with heavy-duty reinforced leading edges and cutting system that delivers a signature cut with fewer clumps and stragglers, finer clippings and increased evenness
• Zero-Turn Mower

Specification:

Engine

• Engine Brand: Kawasaki®
• Engine Model: FR Series
• Engine Model Number: 691V
• Engine Displacement: 726cc
• Engine Output: 23HP
• Starter Type: Electric
• Fuel Tank Capacity: 3.5 gal. US (13.25 L)
• Cylinders: Twin
• Engine Start: Ignition Key
• Engine Oil Capacity: 2.1 qt US (2 L)
• Lubrication: Fully pressurized
• Charging System: 15 amp regulated
• Fuel Gauge: No
• Governor: Mechanical
• Choke: Separate Choke
• Air Filter: Single element
• Oil Filter: Yes
• Fuel Delivery: Carburetor

Battery

• Battery: 210 CCA
• Battery Type: AGM (Absorbent Glass Mat)
• Battery Voltage: 12V

Drive System

• Transmission: Tuff Torq TZ 350
• Forward Speed: 7 MPH / 11.3 km/h
• Reverse Speed: 3.5 MPH / 5.6 km/h
• Drive System: Hydrostatic

Cutting Deck

• Deck Cutting Width: 50 in
• Deck Wash: No
• Deck Material: 11-gauge steel
• Deck Engagement (PTO): Electric
• Deck Construction: Fabricated
• Blade(s): 3
• Deck Lift: Foot pedal with Dial Adjust
• Cutting Height Range: 1'' - 4.5''
• Anti-Scalping: 3 gauge wheels
• Deck Positions: 15

Chassis

• Frame: 2'' x 2'' tubular steel
• Turning Radius: 0°
• ROPS: No
• Rear Tow Hitch: Yes
• Corrosion Protection: Yes

Controls

• Cruise Control: No
• Brakes: Disc
• Steering Control: Lap Bars

Comfort

• Seat Type: 20" high back
• Armrests: Yes
• Seat Adjustment: Lever
• Front Caster Suspension: No

Wheels

• Rear Tires: 20"x 12"-8"
• Front Tires: 13"x 6.5"-6"
• Tire Tread: Turf Master / Multi Trac

Specifications

• Series: Ultima Series™ ZT

Additional Specifications

• Hour Meter: Yes
• Mulch Kit: Available separately
• Headlight(s): Dual-LED
• Cup Holder: Yes
• Operator Presence System: Yes
• Parking Brake: Lap Bar Integrated

Model Number

• Model Number: 17AIEAC2A10

Warranty

• Residential Warranty: 3-year unlimited hours
• Frame Warranty: Lifetime Limited
• Deck Shell Warranty: Lifetime limited
• Commercial Warranty: No

Description:

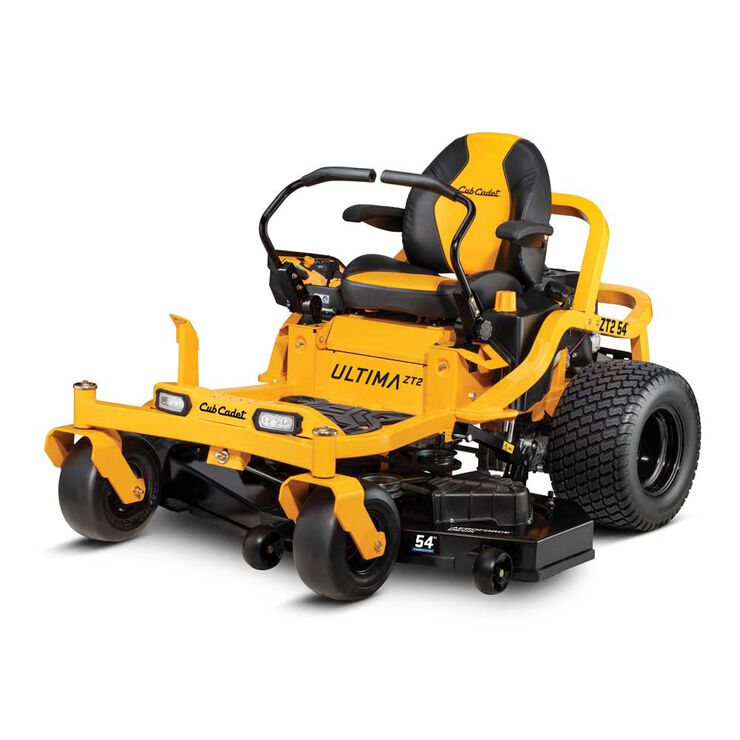

The Cub Cadet® Ultima Series ZT2 54 54-in. 23 HP* Zero-Turn Lawn Mower with AeroForce™ Fabricated Deck is designed to deliver a premium cut with few clumps and stragglers, fine clippings and evenness. Dual hydrostatic transmissions engineered for quick ground speeds that leaves your yard with a professional-quality finish. A continuous tubular steel frame with fully e-coated corrosion defense system designed to help protect against wear and tear.

Features:

• A premium 23 HP*/726cc Kawasaki FR691V twin-cylinder OHV engine, commercial-grade power that meets your yard's toughest demands
• Dual hydrostatic transmissions allow for quick and effortless 7.5 MPH forward (3.5 MPH reverse) ground speeds that leaves your lawn with a professional-quality finish
• 54-in. AeroForce fabricated deck with heavy-duty reinforced leading edges and cutting system that delivers a signature cut with fewer clumps and stragglers, finer clippings and increased evenness.

Specification:

Engine:

• Brand: Kawasaki®
• Model: FR Series, Model Number: 691V
• Displacement: 726cc
• Output: 23HP
• Starter Type: Electric
• Fuel Tank Capacity: 3.5 gal. US (13.25 L)
• Cylinders: Twin
• Start: Ignition Key
• Oil Capacity: 2.1 qt US (2 L)
• Lubrication: Fully pressurized
• Charging System: 15 amp regulated
• Fuel Gauge: No
• Governor: Mechanical
• Choke: Separate Choke
• Air Filter: Single element
• Oil Filter: Yes
• Fuel Delivery: Carburetor

Battery:

• Battery: 210 CCA
• Type: AGM (Absorbent Glass Mat)
• Voltage: 12V

Drive System:

• Transmission: Tuff Torq TZ 350
• Forward Speed: 7 MPH / 11.3 km/h
• Reverse Speed: 3.5 MPH / 5.6 km/h
• Drive System: Hydrostatic

Cutting Deck:

• Width: 54 in
• Wash: No
• Material: 11-gauge steel
• Engagement (PTO): Electric
• Construction: Fabricated
• Blades: 3
• Lift: Foot pedal with Dial Adjust
• Height Range: 1'' - 4.5''
• Anti-Scalping: 3 gauge wheels
• Positions: 15

Chassis:

• Frame: 2'' x 2'' tubular steel
• Turning Radius: 0°
• ROPS: No
• Rear Tow Hitch: Yes
• Corrosion Protection: Yes

Controls:

• Cruise Control: No
• Brakes: Disc
• Steering Control: Lap Bars

Comfort:

• Seat Type: 20" high back
• Armrests: Yes
• Adjustment: Lever
• Front Suspension: No

Wheels:

• Rear Tires: 20"x 12"-8"
• Front Tires: 13"x 6.5"-6"
• Tread: Turf Master / Multi Trac

Specifications:

• Series: Ultima Series™ ZT

Additional Specs:

• Hour Meter: Yes
• Mulch Kit: Available separately
• Headlight(s): Dual-LED
• Cup Holder: Yes
• Operator Presence System: Yes
• Parking Brake: Lap Bar Integrated

Model Number: 17AIEAC3A10

Warranty:

• Residential: 3-year unlimited hours
• Frame: Lifetime Limited
• Deck Shell: Lifetime limited
• Commercial: No

Description:

The Cub Cadet® Ultima Series ZT2 60 is a 60-inch zero-turn lawn mower with a 24 HP engine and an AeroForce™ fabricated deck. It is designed to provide a high-quality cut with few clumps and an even finish. The mower features dual hydrostatic transmissions for quick ground speeds, giving your yard a professional look. Its durable tubular steel frame has a fully e-coated corrosion defense system to protect against wear and tear.

Features:

• A premium 24 HP*/726cc Kawasaki FR730V twin-cylinder OHV engine, commercial-grade power that meets your yard's toughest demands
• Dual hydrostatic transmissions allow for quick and effortless 7.5 MPH forward (3.5 MPH reverse) ground speeds that leaves your lawn with a professional-quality finish
• 60-in. AeroForce fabricated deck with heavy-duty reinforced leading edges and cutting system that delivers a signature cut with fewer clumps and stragglers, finer clippings and increased evenness.
• Zero-Turn Mower

Specification:

Engine:

• Engine Brand: Kawasaki®
• Engine Model: FR Series 730V
• Engine Model Number: 730V
• Engine Displacement: 726cc
• Engine Output: 24HP
• Starter Type: Electric
• Fuel Tank Capacity: 3.5 gal. US (13.25 L)
• Cylinders: Twin
• Engine Start: Ignition Key
• Engine Oil Capacity: 2.1 qt US (2 L)
• Lubrication: Fully pressurized
• Charging System: 15 amp regulated
• Fuel Gauge: No
• Governor: Mechanical
• Choke: Separate Choke
• Air Filter: Single element
• Oil Filter: Yes
• Fuel Delivery: Carburetor

Battery:

• Battery: 210 CCA
• Battery Type: AGM (Absorbent Glass Mat)
• Battery Voltage: 12V

Drive System:

• Transmission: Tuff Torq TZ 350
• Forward Speed: 7 MPH / 11.3 km/h
• Reverse Speed: 3.5 MPH / 5.6 km/h
• Drive System: Hydrostatic

Cutting Deck:

• Deck Cutting Width: 60 in
• Deck Wash: No
• Deck Material: 11-gauge steel
• Deck Engagement (PTO): Electric
• Deck Construction: Fabricated
• Blade(s): 3
• Deck Lift: Foot pedal with Dial Adjust
• Cutting Height Range: 1'' - 4.5''
• Anti-Scalping: 3 gauge wheels
• Deck Positions: 15

Chassis:

• Frame: 2'' x 2'' tubular steel
• Turning Radius: 0°
• ROPS (Roll Over Protection System): No
• Rear Tow Hitch: Yes
• Corrosion Protection: Yes

Controls:

• Cruise Control: No
• Brakes: Disc
• Steering Control: Lap Bars

Comfort:

• Seat Type: 20" high back
• Armrests: Yes
• Seat Adjustment: Lever
• Front Caster Suspension: No

Wheels:

• Rear Tires: 20"x 12"-8"
• Front Tires: 13"x 6.5"-6"
• Tire Tread: Turf Master / Multi Trac

Specifications:

• Series: Ultima Series™ ZT
• Additional Specifications:
• Hour Meter: Yes
• Mulch Kit: Available separately
• Headlight(s): Dual-LED
• Cup Holder: Yes
• Operator Presence System: Yes
• Parking Brake: Lap Bar Integrated
• Model Number: 17AIEAC5A10

Warranty:

• Residential Warranty: 3-year unlimited hours
• Frame Warranty: Lifetime Limited
• Deck Shell Warranty: Lifetime limited
• Commercial Warranty: No

Description:

The Cub Cadet® Ultima Series ZT3 60 is a 60-inch zero-turn lawn mower with a 24 HP engine and an AeroForce™ reinforced fabricated deck. It is built to provide a high-quality cut with few clumps and an even finish. The mower features dual hydrostatic transmissions for quick ground speeds, giving your yard a professional look. Its strong tubular steel frame has a fully e-coated corrosion defense system to protect against wear and tear.

Features:

• A premium 24 HP*/725cc Kawasaki FS730V twin-cylinder OHV engine, commercial-grade power that meets your yard's toughest demands
• Ride in ultimate comfort thanks to a front caster suspension that delivers up to 770 lbs. of shock absorption to help reduce vibration*
• Cut comfortably at your maximum speed with automotive-inspired, fully adjustable premium 24 in. high back seat with cushioned armrests, ball-bearing seat slide and advanced polymer seat isolators.
• 60-in. AeroForce fabricated deck with heavy-duty reinforced leading edges and cutting system that delivers a signature cut with fewer clumps and stragglers, finer clippings and increased evenness.

Specification:

Engine

• Brand: Kawasaki®
• Model: FS Series
• Model Number: 730V
• Displacement: 726cc
• Horsepower: 24HP
• Starter Type: Electric
• Fuel Capacity: 3.5 gal. US (13.25 L)
• Cylinders: Twin
• Oil Capacity: 2.1 qt. US (2 L)
• Lubrication: Fully pressurized
• Charging System: 15 amp regulated
• Fuel Gauge: No
• Governor: Mechanical
• Choke: Separate Choke
• Air Filter: Single element
• Oil Filter: Yes
• Fuel Delivery: Carburetor

Battery

• Battery: 210 CCA
• Type: AGM (Absorbent Glass Mat)
• Voltage: 12V

Drive System

• Transmission: Tuff Torq TZ 450
• Drive Type: Hydrostatic
• Forward Speed: 7.5 MPH / 12.0 km/h
• Reverse Speed: 3.5 MPH / 5.6 km/h

Cutting Deck

• Width: 60 in
• Material: 11-gauge reinforced steel
• Construction: Fabricated
• Blade Count: 3
• Blade Engagement (PTO): Electric
• Deck Lift: Foot pedal with dial adjust
• Cutting Height Range: 1" - 4.5"
• Positions: 15
• Deck Wash Port: No
• Anti-Scalping Wheels: 3

Chassis

• Frame: 2" x 2" tubular steel
• Turning Radius: 0° (zero-turn)
• ROPS: No
• Tow Hitch: Yes
• Corrosion Protection: Yes

Controls & Comfort

• Steering Control: Lap Bars
• Brakes: Disc
• Cruise Control: No
• Seat: 24" high-back with armrests
• Seat Adjustment: Lever
• Caster Suspension: Yes

Wheels

• Rear Tires: 20" x 12"-10"
• Front Tires: 11" x 6"-5"
• Tread Type: Turf Master / Multi Trac

Additional Features

• Hour Meter: Yes
• Mulch Kit: Available separately
• Headlights: Dual-LED
• Cup Holder: Yes
• Operator Presence System: Yes
• Parking Brake: Integrated with lap bars

Model & Warranty

• Model Number: 17AZEAC5A10
• Residential Warranty: 3-year unlimited hours
• Frame Warranty: Lifetime Limited
• Deck Shell Warranty: Lifetime Limited
• Commercial Warranty: Not applicable

Description:

The Cub Cadet® Ultima Series ZTS1 42 42-in. 22 HP* Zero-Turn Lawn Mower with AeroForce™ Fabricated Deck and Synchro-Steer™ Technology is designed to deliver a premium cut with few clumps and stragglers, fine clippings and evenness. Synchro-Steer offers 4-wheel control designed to help provide stability for straight line mowing on hillsides and slopes up to 20-degrees. Dual hydrostatic transmissions engineered for quick ground speeds that leave your yard with a professional-quality finish.

Features:

• Synchro-Steer™ technology offers 4-wheel control and provides unrivaled stability for straight-line mowing on hillsides and slopes up to 20-degrees
• A 22 HP*/725cc Kohler 7000 series V-twin OHV engine delivers high-performance power and exceptionally smooth, quiet operation
• Dual hydrostatic transmissions allow for quick and effortless 7 MPH forward (3.5 MPH reverse) ground speeds that quickly leaves your lawn with a professional-quality finish
• Read More42-in. AeroForce fabricated deck that delivers a signature cut with fewer clumps and stragglers, finer clippings and increased evenness
• Zero-Turn Mower

Specifications:

• Engine:
• Engine Brand: Kohler®
• Engine Model: 7000 Series
• Engine Model Number: KT725
• Engine Displacement: 725cc
• Engine Output: 22HP
• Starter Type: Electric
• Fuel Tank Capacity: 3.5 gal. US (13.25 L)
• Cylinders: Twin
• Engine Start: Ignition Key
• Engine Oil Capacity: 2.0 qt. US (1.89 L)
• Lubrication: Fully pressurized
• Charging System: 12 amp regulated
• Fuel Gauge: No
• Governor: Mechanical
• Choke: Separate Choke
• Air Filter: Dual element
• Oil Filter: Yes
• Fuel Delivery: Carburetor
• Drive System:
• Transmission: Hydro-Gear EZT 2200
• Forward Speed: 7 MPH / 11.3 km/h
• Reverse Speed: 3.5 MPH / 5.6 km/h
• Drive System: Hydrostatic
• Cutting Deck:
• Deck Cutting Width: 42 in
• Deck Wash: No
• Deck Material: 11-gauge steel
• Deck Engagement (PTO): Electric
• Deck Construction: Fabricated
• Blade(s): 2
• Deck Lift: Foot pedal with Dial Adjust
• Cutting Height Range: 1'' - 4.5''
• Anti-Scalping: 2 gauge wheels
• Deck Positions: 15
• Chassis:
• Frame: 2'' x 2'' tubular steel
• Turning Radius: 0°
• ROPS: No
• Rear Tow Hitch: Yes
• Corrosion Protection: Yes
• Controls:
• Cruise Control: No
• Brakes: Disc
• Steering Control: Steering Wheel
• Parking Brake: Hand Lever
• Comfort:
• Seat Type: 20" high back
• Armrests: No
• Seat Adjustment: Lever
• Front Caster Suspension: No
• Wheels:
• Rear Tires: 20”x 8”-8"
• Front Tires: 13"x 6.5"-6"
• Tire Tread: Turf Master / Multi Trac
• Specifications:
• Series: Ultima Series™ ZTS
• Hour Meter: Available Separately
• Mulch Kit: Available separately
• Headlight(s): Dual-LED
• Cup Holder: Yes
• Operator Presence System: Yes
• Model Number: 17ARGBYEA10
• Warranty:
• Residential Warranty: 3-year unlimited hours
• Frame Warranty: Lifetime Limited
• Deck Shell Warranty: Lifetime Limited
• Commercial Warranty: No

Description:

The Cub Cadet® Ultima Series ZTS1 46 46-in. 22 HP* Zero-Turn Lawn Mower with AeroForce™ Fabricated Deck and Synchro-Steer™ Technology is designed to deliver a premium cut with few clumps and stragglers, fine clippings and evenness. Synchro-Steer offers 4-wheel control designed to help provide stability for straight line mowing on hillsides and slopes up to 20-degrees. Dual hydrostatic transmissions engineered for quick ground speeds that leave your yard with a professional-quality finish.

Feature:

• Synchro-Steer™ technology offers 4-wheel control and provides unrivaled stability for straight-line mowing on hillsides and slopes up to 20-degrees
• A 22 HP*/725cc Kohler 7000 series V-twin OHV engine delivers high-performance power and exceptionally smooth, quiet operation
• Dual hydrostatic transmissions allow for quick and effortless 7 MPH forward (3.5 MPH reverse) ground speeds that quickly leaves your lawn with a professional-quality finish
• 46-in. AeroForce fabricated deck that delivers a signature cut with fewer clumps and stragglers, finer clippings and increased evenness.
• Zero-Turn Mower

Specification:

Engine

• Brand: Kohler®
• Model: 7000 Series
• Model Number: KT725
• Displacement: 725cc
• Output: 22HP
• Starter Type: Electric
• Fuel Tank Capacity: 3.5 gal. US (13.25 L)
• Cylinders: Twin
• Engine Start: Ignition Key
• Oil Capacity: 2.0 qt. US (1.89 L)
• Lubrication: Fully pressurized
• Charging System: 12 amp regulated
• Fuel Gauge: No
• Governor: Mechanical
• Choke: Separate Choke
• Air Filter: Dual element
• Oil Filter: Yes
• Fuel Delivery: Carburetor

Battery

• Type: AGM (Absorbent Glass Mat)
• Voltage: 12V
• CCA: 210

Drive System

• Transmission: Hydro-Gear EZT 2200
• Forward Speed: 7 MPH / 11.3 km/h
• Reverse Speed: 3.5 MPH / 5.6 km/h
• System: Hydrostatic

Cutting Deck

• Width: 46 in
• Deck Wash: No
• Material: 11-gauge steel
• Engagement: Electric
• Construction: Fabricated
• Blades: 2
• Lift: Foot pedal with Dial Adjust
• Cutting Height Range: 1'' - 4.5''
• Anti-Scalping: 2 gauge wheels
• Positions: 15

Chassis

• Frame: 2'' x 2'' tubular steel
• Turning Radius: 0°
• ROPS: No
• Tow Hitch: Yes
• Corrosion Protection: Yes

Controls

• Cruise Control: No
• Brakes: Disc
• Steering Control: Steering Wheel

Comfort

• Seat Type: 20" high back
• Armrests: No
• Adjustment: Lever
• Front Suspension: No

Wheels

• Rear Tires: 20”x 8”-8"
• Front Tires: 13"x 6.5"-6"
• Tread: Turf Master / Multi Trac

Specifications

• Series: Ultima Series™ ZTS

Additional Features

• Hour Meter: Available Separately
• Mulch Kit: Available separately
• Headlights: Dual-LED
• Cup Holder: Yes
• Operator Presence System: Yes
• Parking Brake: Hand Lever

Model Number: 17ARGBYNA10

Warranty

• Residential: 3-year unlimited hours
• Frame: Lifetime Limited
• Deck Shell: Lifetime Limited
• Commercial: No

Description:

The Cub Cadet® Ultima Series ZTS1 50 50-in. 23 HP* Zero-Turn Lawn Mower with AeroForce™ Fabricated Deck and Synchro-Steer™ Technology is designed to deliver a premium cut with few clumps and stragglers, fine clippings and evenness. Synchro-Steer offers 4-wheel control designed to help provide stability for straight line mowing on hillsides and slopes up to 20-degrees. Dual hydrostatic transmissions engineered for quick ground speeds that leaves your yard with a professional-quality finish.

Feature:

• Synchro-Steer™ technology offers 4-wheel control and provides unrivaled stability for straight-line mowing on hillsides and slopes up to 20-degrees
• A 23 HP*/725cc Kohler 7000 series V-twin OHV engine delivers high-performance power and exceptionally smooth, quiet operation
• Dual hydrostatic transmissions allow for quick and effortless 7 MPH forward (3.5 MPH reverse) ground speeds that quickly leaves your lawn with a professional-quality finish
• 50-in. AeroForce fabricated deck that delivers a signature cut with fewer clumps and stragglers, finer clippings and increased evenness
• Zero-Turn Mower

Specification:

Engine

• Brand: Kohler®
• Model: 7000 Series
• Model Number: KT730
• Displacement: 725cc
• Output: 23HP
• Starter Type: Electric
• Fuel Tank Capacity: 3.5 gal. US (13.25 L)
• Cylinders: Twin
• Engine Start: Ignition Key
• Oil Capacity: 2.0 qt. US (1.89 L)
• Lubrication: Fully pressurized
• Charging System: 12 amp regulated
• Fuel Gauge: No
• Governor: Mechanical
• Choke: Choke-a-matic
• Air Filter: Dual element
• Oil Filter: Yes
• Fuel Delivery: Carburetor

Battery

• Type: AGM (Absorbent Glass Mat)
• Voltage: 12V
• CCA: 210

Drive System

• Transmission: Hydro-Gear EZT 2200
• Forward Speed: 7 MPH / 11.3 km/h
• Reverse Speed: 3.5 MPH / 5.6 km/h
• System: Hydrostatic

Cutting Deck

• Width: 50 in
• Deck Wash: No
• Material: 11-gauge steel
• Engagement: Electric
• Construction: Fabricated
• Blades: 3
• Lift: Foot pedal with Dial Adjust
• Cutting Height Range: 1'' - 4.5''
• Anti-Scalping: 3 gauge wheels
• Positions: 15

Chassis

• Frame: 2'' x 2'' tubular steel
• Turning Radius: 0°
• ROPS: No
• Tow Hitch: Yes
• Corrosion Protection: Yes

Controls

• Cruise Control: No
• Brakes: Disc
• Steering Control: Steering Wheel

Comfort

• Seat Type: 20" high back
• Armrests: No
• Adjustment: Lever
• Front Suspension: No

Wheels

• Rear Tires: 20”x 10”-8"
• Front Tires: 13"x 6.5"-6"
• Tread: Turf Master / Multi Trac

Specifications

• Series: Ultima Series™ ZTS

Additional Features

• Hour Meter: No
• Mulch Kit: Available separately
• Headlights: Dual-LED
• Cup Holder: Yes
• Operator Presence System: Yes
• Parking Brake: Hand Lever

Model Number: 17ARGBYLA10

Warranty

• Residential: 3-year unlimited hours
• Frame: Lifetime Limited
• Deck Shell: Lifetime Limited
• Commercial: No

Description:

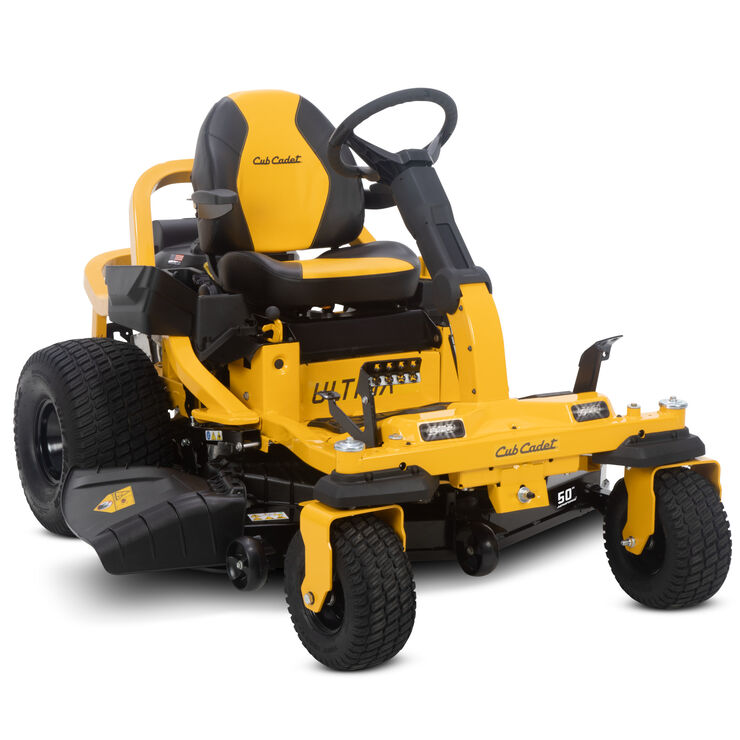

The Cub Cadet® Ultima Series ZTS2 50 is a 50-inch zero-turn lawn mower with a 24 HP engine. It features an AeroForce™ fabricated deck and Synchro-Steer™ technology, which helps provide a high-quality cut with few clumps and an even finish. The Synchro-Steer™ technology offers 4-wheel control for better stability when mowing on hills and slopes up to 20 degrees. The mower also has dual hydrostatic transmissions for quick ground speeds, giving your yard a professional look.

Features:

• Synchro-Steer™ technology offers 4-wheel control and provides unrivaled stability for straight-line mowing on hillsides and slopes up to 20-degrees
• A 24 HP*/747cc Kohler 7000 Series PRO V-twin OHV engine delivers high-performance power and exceptionally smooth, quiet operation
• Dual hydrostatic transmissions allow for 7.5 MPH forward (3.5 MPH reverse) ground speeds
• 50-in. heavy-duty AeroForce™ fabricated deck engineered to deliver a premium cut with minimal clumps, fine clips and evenness.
• Compact AGM battery is designed to deliver a premium experience with a longer lifespan and low maintenance compared to traditional lead acid wet batteries for reliable starting season to season.

Specification:

Engine

• Brand: Kohler®
• Series: 7000 Series PRO
• Model Number: KT724
• Displacement: 747cc
• Horsepower: 24 HP
• Starter Type: Electric (Ignition Key)
• Fuel Tank Capacity: 3.5 gal. US (13.25 L)
• Cylinders: Twin
• Oil Capacity: 2.0 qt. US (1.89 L)
• Lubrication: Fully pressurized
• Charging System: 12 amp regulated
• Governor: Mechanical
• Choke: Separate choke
• Fuel Delivery: Carburetor
• Air Filter: Dual element
• Oil Filter: Yes

Battery

• Battery Capacity: 210 CCA
• Type: AGM (Absorbent Glass Mat)
• Voltage: 12V

Drive System

• Transmission Brand: Hydro-Gear
• Transmission Model: ZT 2800
• Drive System: Hydrostatic
• Forward Speed: 7 MPH (11.3 km/h)
• Reverse Speed: 3.5 MPH (5.6 km/h)

Cutting Deck

• Cutting Width: 50 in
• Deck Material: 11-gauge steel
• Deck Construction: Fabricated
• Blades: 3
• Engagement (PTO): Electric
• Deck Wash: No
• Deck Lift: Foot pedal with dial adjust
• Cutting Height Range: 1" – 4.5"
• Deck Height Positions: 15
• Anti-Scalping Wheels: 3 gauge wheels

Chassis & Frame

• Frame: 2" x 2" tubular steel
• Turning Radius: 0° (Zero-Turn)
• ROPS (Roll Over Protection): No
• Rear Tow Hitch: Yes
• Corrosion Protection: Yes

Controls

• Cruise Control: No
• Brakes: Disc
• Steering Control: Steering Wheel

Comfort

• Seat Type: 20" high-back
• Armrests: Yes
• Seat Adjustment: Lever
• Front Caster Suspension: No

Wheels & Tires

• Rear Tires: 20" x 12"-8"
• Front Tires: 13" x 6.5"-6"
• Tire Tread: Turf Master / Multi Trac

Additional Features

• Series: Ultima Series™ ZTS
• Hour Meter: Yes
• Mulch Kit: Available separately
• Headlights: Dual-LED
• Cup Holder: Yes
• Operator Presence System: Yes
• Parking Brake: Hand Lever

Model & Warranty

• Model Number: 17BSGGY2A10
• Residential Warranty: 3-year unlimited hours
• Frame Warranty: Lifetime limited
• Deck Shell Warranty: Lifetime limited
• Commercial Warranty: Not applicable

Description:

The Cub Cadet® Ultima Series ZTS2 54 is a 54-inch zero-turn lawn mower with a 24 HP engine. It features an AeroForce™ fabricated deck and Synchro-Steer™ technology, which helps provide a high-quality cut with few clumps and an even finish. The Synchro-Steer™ technology offers 4-wheel control for better stability when mowing on hills and slopes up to 20 degrees. The mower also has dual hydrostatic transmissions for quick ground speeds, giving your yard a professional look.

Features:

• Synchro-Steer™ technology offers 4-wheel control and provides unrivaled stability for straight-line mowing on hillsides and slopes up to 20-degrees
• A 24 HP*/747cc Kohler 7000 Series PRO V-twin OHV engine delivers high-performance power and exceptionally smooth, quiet operation
• Dual hydrostatic transmissions allow for 7.5 MPH forward (3.5 MPH reverse) ground speeds
• 54-in. heavy-duty AeroForce fabricated deck that delivers a signature cut with fewer clumps and stragglers, finer clippings and increased evenness.
• Compact AGM battery is designed to delivers a premium experience with a longer lifespan and lower maintenance compared to traditional lead acid wet batteries for reliable starting season to season.

Specification:

Engine

• Brand: Kohler®
• Model: 7000 Series PRO
• Model Number: KT724
• Displacement: 747cc
• Horsepower: 24 HP
• Starter: Electric
• Fuel Tank Capacity: 3.5 gal. US (13.25 L)
• Cylinders: Twin
• Oil Capacity: 2.0 qt. US (1.89 L)
• Lubrication: Fully pressurized
• Charging System: 12 amp regulated
• Fuel Gauge: No
• Governor: Mechanical
• Choke: Separate Choke
• Air Filter: Dual element
• Oil Filter: Yes
• Fuel Delivery: Carburetor

Battery

• Battery: 210 CCA
• Type: AGM (Absorbent Glass Mat)
• Voltage: 12V

Drive System

• Transmission: Hydro-Gear ZT 2800
• Drive Type: Hydrostatic
• Forward Speed: 7 MPH / 11.3 km/h
• Reverse Speed: 3.5 MPH / 5.6 km/h

Cutting Deck

• Cutting Width: 54 in
• Material: 11-gauge fabricated steel
• Blade Count: 3
• Blade Engagement (PTO): Electric
• Deck Lift: Foot pedal with dial adjust
• Cutting Height Range: 1" – 4.5"
• Height Adjustment Positions: 15
• Deck Wash: No
• Anti-Scalping Wheels: 3

Chassis

• Frame: 2" x 2" tubular steel
• Turning Radius: 0° (true zero-turn)
• ROPS: No
• Tow Hitch: Yes
• Corrosion Protection: Yes

Controls & Comfort

• Steering Control: Steering Wheel (Synchro-Steer™ Technology)
• Brakes: Disc
• Cruise Control: No
• Seat: 20" High Back with Armrests
• Seat Adjustment: Lever
• Front Caster Suspension: No

Wheels

• Rear Tires: 20" x 12"-8"
• Front Tires: 13" x 6.5"-6"
• Tread Pattern: Turf Master / Multi Trac

Additional Features

• Hour Meter: Yes
• Mulch Kit: Available separately
• Headlights: Dual-LED
• Cup Holder: Yes
• Operator Presence System: Yes
• Parking Brake: Hand Lever

Model & Warranty

• Model Number: 17ASGGY3A10
• Residential Warranty: 3-Year Unlimited Hours
• Frame Warranty: Lifetime Limited
• Deck Shell Warranty: Lifetime Limited
• Commercial Warranty: Not applicable

Description:

Features:

• Synchro-Steer™ technology offers 4-wheel control and provides unrivaled stability for straight-line mowing on hillsides and slopes up to 20-degrees
• A 25 HP/725cc Kohler 7000 Series PRO V-twin OHV engine delivers high-performance power and exceptionally smooth, quiet operation
• Dual hydrostatic transmissions allow for quick and effortless 7 MPH forward (3.5 MPH reverse) ground speeds that quickly leaves your lawn with a professional-quality finish
• 60-in. heavy-duty AeroForce fabricated deck that delivers a signature cut with fewer clumps and stragglers, finer clippings and increased evenness.
