Description:

The Cub Cadet® PRO X 636 36-in. 18.5 HP* Commercial Stand-On Lawn Mower features a fully fabricated 10-gauge steel commercial deck shell with top, bottom and side reinforcements. Standard 21-in. tires are designed to give you ground clearance to easily hop on curbs. A large, fully adjustable suspension platform is engineered to allow you to glide comfortably through tough terrains.

Features:

• Commercial-grade 18.5 hp Kawasaki® FS600V (603cc) engine
• A fully fabricated 36-inch 10-gauge steel commercial deck shell with top bottom and side reinforcements plus standard 21" tires give you more ground clearance to easily back over curbs.
• A large suspension platform allows you to glide comfortably over tough terrains.
• High-performance commercial Hydro-Gear® PK 12cc pumps & Parker® TL 240cc wheel motors deliver quick response to the drive wheels and smooth control for cutting speeds up to 8.5 mph.
• 2-year limited commercial warranty with no hour limitations.

Specification:

Engine

• Engine Brand: Kawasaki®
• Engine Model: FS Series
• Engine Model Number: 600V
• Engine Displacement: 603cc
• Engine Output: 18.5HP
• Starter Type: Electronic with quick reset
• Fuel Tank Capacity: 6 gal. US (22.7 L)
• Cylinders: Twin
• Engine Start: Ignition Key
• Engine Oil Capacity: 2.0 qt. US (1.89 L)
• Lubrication: Fully pressurized
• Charging System: 15 amp regulated
• Fuel Gauge: No
• Choke: Separate Choke
• Air Filter: High Density
• Oil Filter: Yes
• Fuel Delivery: Carburetor

Drive System

• Transmission: 12cc Hydro-Gear® pumps / 240cc Parker® wheel motors
• Forward Speed: 8.5 mph / 13.6 km/h
• Reverse Speed: 3.5 mph / 5.6 km/h

Cutting Deck

• Deck Cutting Width: 36 in
• Deck Engagement (PTO): Electric
• Deck Construction: 10 ga shell w/ 7 ga top & bottom reinforcement
• Spindle Construction: 5” sealed cast aluminum housing (maintenance-free)
• Blade(s): Two 18.5" high-lift blades, 1-1/2" of blade overlap
• Deck Lift: Hand lever adjusting spring lift, pin selector for height
• Cutting Height Range: 1.75" - 4.5"
• Anti-Scalping: N/A

Chassis

• Frame: 1.5" x 3" full-length tube frame
• Front Axle: 1.5" x 3" tube construction
• Front Caster Mount: 3/8" thick steel
• Suspension: None

Controls

• Cruise Control: N/A
• Brakes: Hand Lever actuated scrub brake
• Steering Control: Lap Bar Steering Control

Wheels

• Rear Tires: 21"x 8.5"-10"
• Front Tires: 11x4-5 RF

Additional Specifications

• Hour Meter: Crew Boss
• Model Number: 53RZ3CSB050

Warranty

• Residential Warranty: 2-year / no-hour-limit warranty

Description:

The Cub Cadet Pro Z 560S KW features a 60-inch, fabricated deck with a Kawasaki FX Series V-Twin engine. This model features a pedal-assisted lift for the cutting deck, allowing the operator to quickly and easily adjust the deck height between sixteen different heights. Dual 7.5 gallon fuel tanks provide all-day mowing capabilities without the need to refuel often.

Features:

• 27HP/852cc Kawasaki FX850V Series V-Twin Engine
• 60-inch, 3-blade fabricated deck
• 12cc Parker HTJ series pumps and 260cc Parker motor
• Dual 7.5 gallon fuel capacity
• Ground speed: 10 mph forward/5 mph reverse
• Front wheels: 15 x 6 in - 6 in
• Rear wheels: 24 x 12 in - 12 in
• 3-year limited warranty
• Model: 53TIHJUV050

Specifications:

Warranty

• Commercial Warranty: 3 years / no hour limit

Steering

• Type: High Performance Steering Wheel & Foot-pedal Control
• Adjustment: Multi-position Quick-adjust steering column

Mower Deck

• Size/Type: 60" Fabricated Deck
• Material: 7ga. (.187”) steel shell
• Top Reinforcement: 7ga. (.187") top plate
• Bottom Reinforcement: 7ga. (.187") bottom plate
• Rolled Leading Edge: 1/4" (.250") steel
• Side Construction: 5/16" (.313) steel
• Cutting Height: 1" - 5"
• Blade-Tip Speed (Approx): 18,500 fpm
• Deck Blades: Triple-blade / High-lift blade (standard) Marbain Blade
• Trim-Side Wear Guard: 3/4" Thick UHMW-PE Replaceable
• Anti-Scalping: 2 Front HD w/ Bushings & Grease Zerk
• Spindle Covers: Steel - Tool-less Quick Release
• Discharge Chute: Heavy-duty Flex chute (impact resistant)
• Deck Height Adjustment: Foot pedal with spring assist (16 Positions)

General

• Rear Tires: 24" x 12" - 12" (Turf Tread)
• Front Tires: 13" x 6.5" - 6" (Turf Tread)
• Weight (approx): 1060 lbs
• Cup Holder: Integrated into Side Pod
• PTO Clutch: Warner Clutch - 125 ft lb
• ROPS: 2"x2" Foldable 3 Position Low Profile Clearance
• Park Brake / Braking: Hand-operated lever with integrated hydro pump release lever
• Rear Bumper: 5/16" Thick Steel rear engine guard with pre-drilled mounting points
• Seat Type: High-back dial suspension with EVC Cushion, seat belt, angle back adjust, arm rests
• Front Axle / Yokes: 2" x 3" solid axle tube and 1/2" thick steel front yokes
• Frame: Fully welded, full-length 3/8 x 5" laser cut steel with integrated tie-down slots
• Throttle/PTO/Key Switch: HD Low-profile throttle lever, sealed key switch & electronic fingertip engagement PTO
• Cruise Control: N/A
• Length / Width / Height (discharge chute up width/ ROPS up height): 80" L x 50" W x 58" H
• Safety Systems: Operator presence
• Hour Meter: Standard electronic

Engine & Drive System

• Horsepower / CC's: 27 hp - 852 cc
• Engine Type: Kawasaki FX850v
• Ground Speed: Forward: 10 mph / Reverse: 5 mph
• Fuel Capacity: Twin 7.45 gal. tanks (14.9 gal. total) with dial gauge
• Transmission: Parker HTJ Series (12cc pump / 260cc wheel motor)

Description:

Features:

• 27 HP Kawasaki FX850v (852cc) engine and 12cc Parker HTJ transmission
• 60” triple-7-gauge fabricated steel cutting deck with top, bottom and side reinforcements
• 3-year limited commercial warranty (no hour limitations) and 5 year / 1,750 hour limited deck construction warranty

Description:

Features:

• 31 HP Kawasaki FX921v (999cc) engine and 14cc Parker HTG transmission
• 60” triple-7-gauge fabricated steel cutting deck with top, bottom and side reinforcements
• 3-year limited commercial warranty (no hour limitations)

Description:

Features:

• 35 HP Kawasaki FX1000v (999cc) engine and 16cc Parker HTG transmission
• 60” triple-7-gauge fabricated steel cutting deck with top, bottom and side reinforcements
• 3-year limited commercial warranty (no hour limitations) and 5 year / 1,750 hour limited deck construction warranty

Description:

Features:

• 35 HP Kawasaki FX1000v (999cc) engine and 16cc Parker HTG transmission
• 72” triple-7-gauge fabricated steel cutting deck with top, bottom and side reinforcements
• 3-year limited commercial warranty (no hour limitations) and 5 year / 1,750 hour limited deck construction warranty

Description:

The Pro-Z 972 SDL Zero Turn is simply the strongest and best commercial grade mower you can buy.

With dual rear wheels, weighted front wheels and four wheel steering the Pro-Z 972 SDL will safely mow on slopes up to 25 degrees.

Lock-in or out self-leveling air-ride seat with 30 degrees of side-to-side swivel ensures you are sitting upright and comfortable on even the steepest of slopes.

A huge 72 Inch fabricated steel cutting deck and strong 35HP Kawasaki V-Twin adds unmatched speed and productivity to the package.

The Pro-Z 972 SDL is the only choice for professional contractors who demand strength, reliability, productivity and extreme hillside mowing capability.

Features

 A powerful slope mower with 35 HP Kawasaki FX1000v (999cc) engine and 16cc Parker HTG transmission

 72” triple-7-gauge fabricated steel cutting deck with top, bottom and side reinforcements

 Lock-in or out self-leveling air-ride seat with 30 degrees of side-to-side swivel/15 degrees of travel left or right.

 Dual rear wheels and weighted front rims give this steep slope mower traction on up to a 46% grade. 12-volt outlet kit and electronic power deck lift included

 3-year limited commercial warranty (no hour limitations) and 5 year / 1,750 hour limited deck construction warranty

Specifications For Model # PRO Z 972 SDL

Engine

• Engine Brand Kawasaki®
• Engine Model FX Series
• Engine Model Number 1000V
• Engine Displacement 999cc
• Engine Output 35HP
• Starter Type Electronic
• Fuel Tank Capacity Dual 7.45 gal. US (28.2 L)
• Cylinders Twin
• Engine Start Ignition Key
• Engine Oil Capacity 2.0 qt. US (1.89 L)
• Lubrication Fully pressurized
• Charging System 15 amp regulated
• Fuel Gauge Electronic
• Choke Separate Choke
• Air Filter High Density
• Oil Filter Yes
• Fuel Delivery Carburetor

Battery

• Battery 310CCA AGM battery; Relay/Fuse terminal block; 30 AMP voltage regulator

Drive System

• Transmission Parker® heavy duty HTG 16cc pump / 310cc wheel motor with oversized wheel bearings
• Forward Speed 14 mph / 22.5 km/h
• Reverse Speed 6 mph / 9.5 km/h

Cutting Deck

• Deck Cutting Width 72 in
• Deck Material triple-7-gauge fabricated steel
• Deck Engagement (PTO) Electronic with quick reset
• Deck Construction Floating, fabricated 7 ga (0.187") steel and adjustable rear striping rollers
• Spindle Construction Maintenance-free cast aluminum housing
• Blade(s) 3 high-lift Marbain® blades / 18,500 fpm (approx.)
• Deck Lift Electro-hydraulic assist quick-lift design
• Cutting Height Range 1” to 5” in 1/4” increments
• Anti-Scalping 4 front deck gauge wheels
• Deck Positions 16

Warranty

• Deck Shell Warranty 5 year / 1,750 hour limited deck construction warranty
• Commercial Warranty 3 year / no hour limit commercial warranty

Chassis

• Frame Fully welded, 3/8" x 5" laser-cut steel
• Front Axle 2" x 3" solid with Isolation dampening system, 1/2" thick steel
• ROPS 2" x 2" foldable 3-position with low profile
• Bumper 5/16" Thick Steel rear engine guard/pre-drilled mounting points for attachments with integrated rear hitch
• Rear Tow Hitch Bolt-On hitch std.

Controls

• Cruise Control NA
• Brakes Hand-operated lever with integrated hydro pump release lever
• Steering Control Quick-adjust steering column w/ power steering
• Operator Control Low-profile throttle lever

Comfort

• Seat Type High-back air-ride suspension, EVC cushion, seat belt, angle-back adjust, lumbar support, padded armrests, isolation dampening system mounted base (lateral suspension)
• Seat Suspension side-to-side swivel/15 degrees of travel left or right
• Seat Control Swivel User-controlled lock/unlock swivel seat for operator leveling up to 30-degrees total/15-degrees left or right travel

Wheels

• Rear Tires 25"x9"-12" HD Traction Tread
• Front Tires 16"x6.5"-8" Kenda K505
• Tire Tread Heavy-Duty traction tread

Dimensions

• Dimensions L/W/H 88" / 74" / 85"
• Weight (approx.) 1,885 lbs

Additional Specifications

• Hour Meter Crew Boss
• Headlight(s) 6 LED Lights for 360 degrees of lighted visibility; Amber Beacon with three position adjustments
• Cup Holder Intergrated into Side Pod
• Model Number 53TILMUY050

Specifications

• Engine Starter Type Electric

Description:

Features:

• 35 HP Kawasaki FX1000v (999cc) engine and 16cc Parker HTG transmission
• 72” triple-7-gauge fabricated steel cutting deck with top, bottom and side reinforcements
• 3-year limited commercial warranty (no hour limitations)and 5 year / 1,750 hour limited deck construction warranty

Description:

Features:

• Commercial-grade 22 hp Kawasaki® FX691V (726cc) engine
• A fully fabricated 48-inch 10-gauge steel commercial deck shell with top bottom and side reinforcements plus standard 24" tires give you more ground clearance to easily hop on curbs.
• A large, fully adjustable suspension platform allows you to adjust tension and glide comfortably through tough terrains.
• High-performance commercial Hydro-Gear® PK 12cc pumps & Parker® TL 240cc wheel motors deliver quick response to the drive wheels and smooth control for cutting speeds up to 10 mph.
• 3-year limited commercial warranty (no hour limitations) and 5-year/1,750-hour limited deck assembly warranty.

Specifications:

Engine

• Brand: Kawasaki®
• Series: FX Series
• Model Number: 691V
• Displacement: 726 cc
• Output: 22 HP
• Start Type: Electric with Quick Reset
• Fuel Capacity: 7.5 gal (28.4 L)
• Cylinders: Twin
• Oil Capacity: 2.0 qt (1.89 L)
• Lubrication: Fully pressurized
• Charging System: 15 amp regulated
• Fuel Delivery: Carburetor
• Air Filter: High Density
• Oil Filter: Yes
• Choke: Separate
• Fuel Gauge: No

Drive System

• Transmission: 12cc Hydro-Gear® Pumps / 240cc Parker® Wheel Motors
• Forward Speed: Up to 10 mph (16 km/h)
• Reverse Speed: Up to 5 mph (8 km/h)
• Brakes: Hand lever / external band
• Steering Control: Lap Bar Steering Wheel Control

Chassis / Suspension

• Frame: 2" x 3" full-length tube frame
• Front Axle: 2" x 3" tube construction
• Front Caster Mount: 3/8" thick steel
• Suspension: Spring platform, 3-position, adjustable by hand lever
• Rear Tires: 24"x 9.5" - 12"
• Front Tires: 13 x 5 - 6" Reliance Run-Flat (Carlisle)

Cutting Deck

• Deck Width: 48 in.
• Construction: 10-gauge shell reinforced with 7-gauge top & bottom
• Spindle Housing: 8" aluminum housing, 35mm sealed ball bearings, 1-3/8" shaft, maintenance-free
• Blade Setup: 3 x 17" high-lift Marbain® blades with 1.5" overlap
• Engagement (PTO): Electric
• Deck Lift: Manual lever with spring assist & pin-selector
• Cutting Height Range: 1.5” – 4.5”
• Anti-Scalp Wheels: 2 front gauge wheels

Dimensions

• Weight (Approx.): 1,015 lbs
• Hour Meter: Yes (Crew Boss interface)

Warranty

• Residential: 3-year, no-hour-limit
• Deck Shell: 5-year / 1,750-hour limited

Description:

Features:

• Commercial-grade 25.5 hp Kawasaki® FX801V (852cc) engine
• A fully fabricated 54-inch 10-gauge steel commercial deck shell with top bottom and side reinforcements plus standard 24" tires give you more ground clearance to easily hop on curbs.
• A large, fully adjustable suspension platform allows you to adjust tension and glide comfortably through tough terrains.
• High-performance commercial Hydro-Gear® PK 12cc pumps & Parker® TL 240cc wheel motors deliver quick response to the drive wheels and smooth control for cutting speeds up to 10 mph.
• 3-year limited commercial warranty (no hour limitations) and 5-year/1,750-hour limited deck assembly warranty.

Specifications:

Engine

• Brand: Kawasaki®
• Model: FX Series, Model Number 801V
• Displacement: 852cc
• Output: 25.5 HP
• Starter Type: Electronic
• Fuel Tank Capacity: 7.5 gal. US (28.4 L)
• Cylinders: Twin
• Start Type: Ignition Key
• Oil Capacity: 2.0 qt. US (1.89 L)
• Lubrication: Fully pressurized
• Charging System: 15 amp regulated
• Fuel Gauge: Not included
• Choke: Separate Choke
• Air Filter: High Density
• Oil Filter: Yes
• Fuel Delivery: Carburetor

Drive System

• Transmission: 12cc Hydro-Gear® pumps / 240cc Parker® wheel motors
• Forward Speed: 10 mph (16 km/h)
• Reverse Speed: 5 mph (8 km/h)

Cutting Deck

• Width: 54 in
• Material: 10-gauge steel
• Engagement (PTO): Electronic with quick reset
• Construction: 10-gauge shell with 7-gauge top & bottom reinforcement
• Spindle Construction: Heavy-duty 8" aluminum housing, 35mm double-row sealed ball bearings, 1-3/8" through-shaft, maintenance-free
• Blades: Three 19" high-lift Marbain blades, 1-1/2" overlap
• Deck Lift: Hand lever adjusting spring lift with pin selector for height
• Cutting Height Range: 1.5" - 4.5"
• Anti-Scalping: 2 front deck gauge wheels

Chassis

• Frame: 2" x 3" full-length tube frame
• Front Axle: 2" x 3" tube construction
• Front Caster Mount: 3/8" thick steel
• Suspension: Hand lever adjust, 3-position spring suspension foot platform

Controls

• Brakes: Hand lever control / external band
• Steering: Lap Bar Steering Wheel Control

Wheels

• Rear Tires: 24"x12"-12"
• Front Tires: 13x5-6" Reliance Run Flat Carlisle

Dimensions

• Length/Width/Height: 69" / 68" / 56"
• Weight (approx.): 1080 lbs

Additional Specifications

• Hour Meter: Crew Boss
• Model Number: 53AI8CSA050
• Residential Warranty: 3-year / no-hour-limit
• Deck Shell Warranty: 5-year / 1,750-hour limited manufacturer’s warranty

Description:

Features:

• Commercial-grade 25.5 hp Kawasaki(R) FX801V (852cc) engine
• A fully fabricated 60-inch 10-gauge steel commercial deck shell with top bottom and side reinforcements plus standard 24" tires give you more ground clearance to easily hop on curbs.
• A large, fully adjustable suspension platform allows you to adjust tension and glide comfortably through tough terrains.
• High-performance commercial Hydro-Gear® PK 12cc pumps & Parker® TL 240cc wheel motors deliver quick response to the drive wheels and smooth control for cutting speeds up to 10 mph.
• 3-year limited commercial warranty (no hour limitations) and 5-year/1,750-hour limited deck assembly warranty.

Description:

Features:

• Commercial-grade 25.5 hp Kawasaki® FX801V (852cc) engine
• A fully fabricated 54-inch 10-gauge steel commercial deck shell with top bottom and side reinforcements plus standard 24" tires give you more ground clearance to easily hop on curbs.
• A large, fully adjustable suspension platform allows you to adjust tension and glide comfortably through tough terrains.
• High-performance commercial Hydro-Gear® PK 12cc pumps & Parker® TL 240cc wheel motors deliver quick response to the drive wheels and smooth control for cutting speeds up to 10 mph.
• 3-year limited commercial warranty (no hour limitations) and 5-year/1,750-hour limited deck assembly warranty.

Specifications:

Engine

• Brand: Kawasaki®
• Model: FX Series – 801V
• Displacement: 852 cc
• Output: 25.5 HP
• Start Type: Electronic (Ignition Key)
• Fuel Type: Gasoline
• Fuel Capacity: 7.5 gal. (28.4 L)
• Oil Capacity: 2.0 qt. (1.89 L)
• Lubrication: Fully Pressurized
• Fuel Delivery: Carburetor
• Charging System: 15 amp regulated
• Air Filter: High-Density
• Oil Filter: Yes
• Choke: Separate Choke
• Cylinders: Twin

Drive System

• Transmission: Dual Hydro – 12cc Hydro-Gear® Pumps / 240cc Parker® Wheel Motors
• Forward Speed: Up to 10 mph / 16 km/h
• Reverse Speed: Up to 5 mph / 8 km/h
• Brakes: Hand Lever-Controlled External Band
• Steering: Lap Bar Steering Wheel Control

Cutting Deck

• Width: 54 in
• Material: 10-gauge steel deck shell with 7-gauge reinforced top & bottom
• Construction: Fabricated
• Spindles: HD 8" Cast Aluminum Housing
• Bearings: 35mm Double-Row Sealed
• Shaft: 1-3/8" Through-Shaft
• Maintenance-Free: Yes
• Blades: Three (3) 19" High-Lift Marbain® Blades
• Blade Overlap: 1.5 in
• Engagement (PTO): Electronic with Quick Reset
• Deck Lift: Hand Lever with Spring Assist and Pin Selector
• Height Range: 1.5 in – 4.5 in
• Anti-Scalp Wheels: 2 Front Gauge Wheels

Chassis & Suspension

• Frame: 2" x 3" Full-Length Tubular Steel
• Front Axle: 2" x 3" Steel Tube
• Caster Mounts: 3/8" Thick Steel
• Suspension: Hand Lever Adjustable
• Platform: 3-Position Spring Suspension Foot Platform

Wheels & Tires

• Rear Tires: 24" x 12" - 12"
• Front Tires: 13" x 5" - 6"
• Type: Reliance Run-Flat (Carlisle®)

Controls & Features

• Cruise Control: Not Applicable
• Hour Meter: Included
• Brakes: External Band with Hand Lever
• Steering Controls: Lap Bar
• Operator Comfort: Spring Suspension Foot Platform

Dimensions

• Weight: Approx. 1080 lbs

Warranty

• Residential: 3-Year No-Hour-Limit
• Deck Shell: 5-Year / 1,750-Hour Limited

Description:

Compact and powerful, the 1X 21 in. 208cc Gas Single-Stage Snow Blower with Remote Chute Control and Headlight can tackle up to 6 in.of snow†. A 13 in. intake height is designed to clear small driveways or sidewalks quickly. Quickly change the direction of snow discharge from the operator’s station with the dashboard-mounted control lever. Push button electric start is designed for reliable starting without the need to pull-start. An in-dash headlight helps provide visibility before dawn or after sundown.

Features:

• 21 in. clearing width and 13 in. intake height is capable of removing up to 6 in. of snow† and designed to throw snow up to 25 ft. away
• Skip the pull starts and get to work quickly with push-button electric start (Requires use of 15amp/125V outdoor-rated extension cord sold separately)
• In-dash LED headlight helps provide visibility in low-light conditions
• Snow Blower

Specification:

Engine

• Brand: Cub Cadet®
• Model Number: 670-JUB
• Displacement: 208cc
• Fuel Capacity: 2 quarts US / 1.9 L
• Starting System: Recoil and Push-Button Electric Start
• Governor: Mechanical
• Fuel Delivery: Carburetor

Drive System

• Drive Type: Auger-Assist
• System: Auger-Assist
• Forward/Reverse Speeds: Not Applicable

Controls

• Handle Grips: Padded Gullwing
• Chute Rotation Control: Remote Single-Lever
• Chute Pitch Control: Remote Single-Lever
• Chute Rotation: 190°
• Single-Hand Operation / Steering Control: Not Applicable

Performance

• Clearing Width: 21"
• Intake Height: 13"
• Number of Stages: One
• Auger Gearbox: Not Applicable

Auger & Chute

• Auger Diameter: 9"
• Auger Material: Reinforced Rubber
• Impeller/Accelerator Diameter: Not Applicable
• Chute Material: High-impact Polymer

Dimensions & Tires

• Tire Size: 7" x 2"
• Tread Pattern: Zag

Additional Features

• Headlights: In-dash LED
• Shave Plate: Polymer
• Skid Shoes: Not Applicable
• Drift Cutters: No

Model Info

• Model Number: 31PM2T6C710

Warranty

• Residential Warranty: 3-Year Limited
• Commercial Warranty: 1-Year Limited
• Auger Gearbox Warranty: Not Applicable
• Chute Warranty: 3-Year Limited

Description:

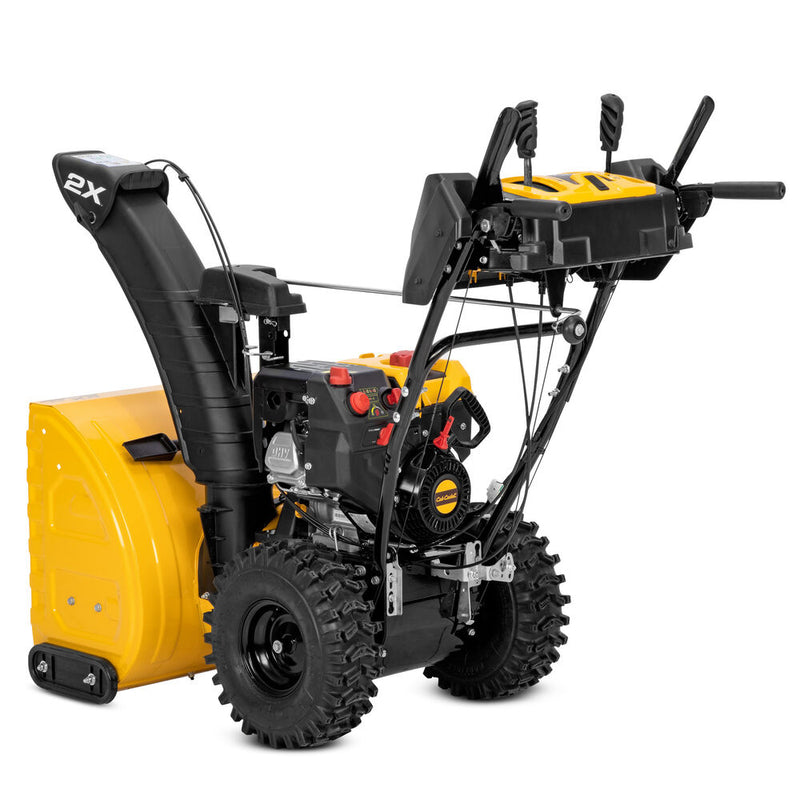

Tackle winter weather with this 2X 24 in. 243cc Gas Two-Stage Snow Blower with IntelliPOWER™ Engine engineered to take on up to 12 in. of snow†. IntelliPOWER™ technology is designed to deliver consistent power in heavy, deep, and wet snow conditions. Push button electric start is designed for reliable starting without the need to pull start. Work at your pace, with 6 forward and 2 reverse speeds, and in low light conditions thanks to dual LED headlights.

Features:

• 24 in. clearing width and 21 in. intake height is designed to throw snow up to 40 ft. away while clearing up to 12 in. of snow†
• 243cc 4-cycle OHV Cub Cadet IntelliPOWER® engine delivers the power to help clear snow on driveways up to 12 parking spaces in size
• IntelliPOWER® technology is engineered to deliver consistent power in heavy, deep, and wet snow conditions by automatically optimizing engine output to help provide smooth and consistent performance in challenging conditions.
• Dual LED headlights on the dash help provide visibility in low-light conditions.
• 15 in. x 5 in. X TRAC® tires help provide traction and mobility over snow*

Specifications:

ENGINE

• Brand: Cub Cadet®
• Model Number: 875-WU
• Displacement: 243cc
• Start Type: Recoil & Push-Button Electric
• Fuel Tank Capacity: 2 quarts US (1.9 L)
• Governor: Electronic
• Fuel Delivery: Carburetor

DRIVE SYSTEM

• Type: Friction Disc
• System: All-Wheel Drive
• Forward Speeds: 6
• Reverse Speeds: 2

CONTROLS

• Handle Grips: Standard
• Chute Rotation Control: Remote Overhead Crank
• Chute Pitch Control: Remote Single-Lever
• Chute Rotation Angle: 200°
• Single-Hand Operation: Standard
• Steering Control: Not available

POWER & PERFORMANCE

• Clearing Width: 24 inches
• Intake Height: 21 inches
• Stages: Two-stage
• Auger Gearbox: Heavy-duty cast-aluminum
• Auger Diameter: 12 inches
• Impeller Diameter: 12 inches
• Auger Material: Serrated Steel

DIMENSIONS & BUILD

• Tire Size: 15" x 5"
• Tread Pattern: Xtrac®
• Chute Material: High-impact Polymer
• Shave Plate: Heavy-Duty Steel
• Skid Shoes: Deluxe Reversible Poly
• Drift Cutters: No

FEATURES

• Headlights: Dual LED
• Single-Hand Operation: Yes

MODEL INFO

• Model Number: 31AM6HVRB10

WARRANTY

• Residential Warranty: 3-year limited
• Commercial Warranty: 1-year limited
• Auger Gearbox Warranty: 3-year limited
• Chute Warranty: Lifetime limited

Description:

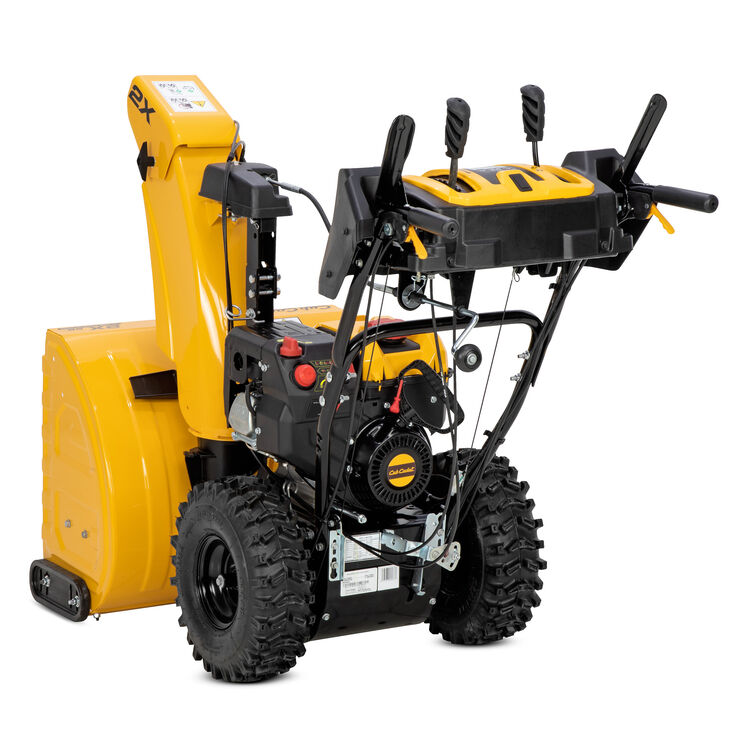

Tackle winter weather with this 2X 26 in. 243cc Gas Two-Stage Snow Blower with IntelliPOWER® Engine engineered to take on up to 12 in. of snow†. IntelliPOWER® technology is designed to deliver consistent power in heavy, deep, and wet snow conditions. Push button electric start is designed for reliable starting without the need to pull start. Includes trigger-controlled power steering with a self-propelled drive engineered for control, maneuverability, and single-hand operation.

Features:

• 26 in. clearing width and 21 in. intake height is designed to throw snow up to 40 ft. away while clearing up to 12 in. of snow†
• 243cc 4-cycle OHV Cub Cadet IntelliPOWER® engine delivers the power to help clear snow on driveways up to 12 parking spaces in size
• IntelliPOWER® technology is engineered to deliver consistent power in heavy, deep, and wet snow conditions by automatically optimizing engine output to help provide smooth and consistent performance in challenging conditions.
• Engineered for durability thanks to a heavy-duty cast aluminum auger gearbox, heavy-duty steel auger housing, and steel chute.

Specification:

Engine:

• Brand: Cub Cadet®
• Model Number: 875-WU
• Displacement: 243cc
• Fuel Tank Capacity: 2 quarts US (1.9 L)
• Start Type: Recoil and Push-Button Electric
• Governor: Electronic
• Fuel Delivery: Carburetor

Drive System:

• Drive Type: Friction Disc
• System: All-Wheel Drive
• Forward Speeds: 6
• Reverse Speeds: 2

Controls:

• Handle Grips: Standard
• Chute Rotation Control: Remote Overhead Crank
• Chute Pitch Control: Remote Single-Lever
• Chute Rotation: 200°
• Single-Hand Operation: Standard
• Steering Control: Trigger-Controlled Power Steering

Power & Performance:

• Clearing Width: 26"
• Intake Height: 21"
• Stages: Two-stage
• Auger Gearbox: Heavy-duty cast aluminum
• Auger Diameter: 12"
• Impeller Diameter: 12"

Dimensions & Specifications:

• Tire Size: 15" x 5"
• Tread Type: Xtrac®
• Shave Plate: Heavy-duty steel
• Skid Shoes: Deluxe reversible poly
• Auger Material: Serrated steel
• Chute Material: Steel
• Drift Cutters: No

Lighting & Additional Features:

• Headlights: Dual LED

Model Info:

• Model Number: 31AM5HVSB10

Warranty:

• Residential: 3-year limited
• Commercial: 1-year limited
• Auger Gearbox: 5-year limited
• Chute: 3-year limited
