Description:

Features:

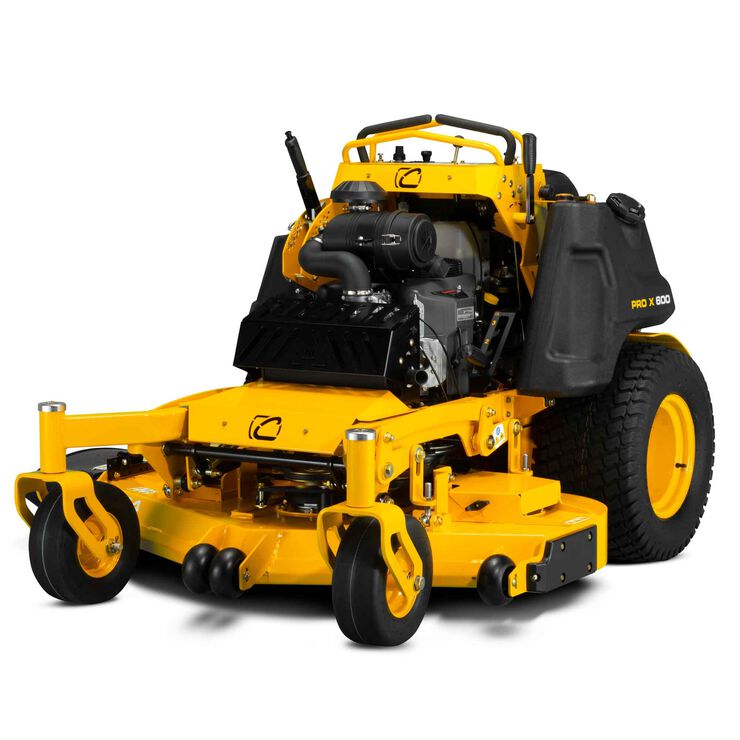

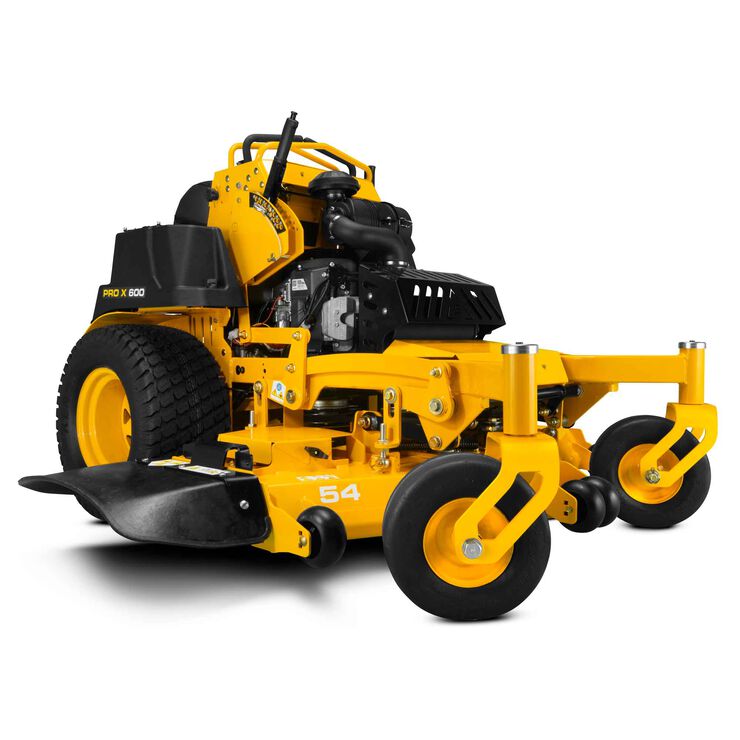

• Commercial-grade 25.5 hp Kawasaki® FX801V (852cc) engine
• A fully fabricated 54-inch 10-gauge steel commercial deck shell with top bottom and side reinforcements plus standard 24" tires give you more ground clearance to easily hop on curbs.
• A large, fully adjustable suspension platform allows you to adjust tension and glide comfortably through tough terrains.
• High-performance commercial Hydro-Gear® PK 12cc pumps & Parker® TL 240cc wheel motors deliver quick response to the drive wheels and smooth control for cutting speeds up to 10 mph.
• 3-year limited commercial warranty (no hour limitations) and 5-year/1,750-hour limited deck assembly warranty.

Specifications:

Engine

• Brand: Kawasaki®
• Model: FX Series – 801V
• Displacement: 852 cc
• Output: 25.5 HP
• Start Type: Electronic (Ignition Key)
• Fuel Type: Gasoline
• Fuel Capacity: 7.5 gal. (28.4 L)
• Oil Capacity: 2.0 qt. (1.89 L)
• Lubrication: Fully Pressurized
• Fuel Delivery: Carburetor
• Charging System: 15 amp regulated
• Air Filter: High-Density
• Oil Filter: Yes
• Choke: Separate Choke
• Cylinders: Twin

Drive System

• Transmission: Dual Hydro – 12cc Hydro-Gear® Pumps / 240cc Parker® Wheel Motors
• Forward Speed: Up to 10 mph / 16 km/h
• Reverse Speed: Up to 5 mph / 8 km/h
• Brakes: Hand Lever-Controlled External Band
• Steering: Lap Bar Steering Wheel Control

Cutting Deck

• Width: 54 in
• Material: 10-gauge steel deck shell with 7-gauge reinforced top & bottom
• Construction: Fabricated
• Spindles: HD 8" Cast Aluminum Housing
• Bearings: 35mm Double-Row Sealed
• Shaft: 1-3/8" Through-Shaft
• Maintenance-Free: Yes
• Blades: Three (3) 19" High-Lift Marbain® Blades
• Blade Overlap: 1.5 in
• Engagement (PTO): Electronic with Quick Reset
• Deck Lift: Hand Lever with Spring Assist and Pin Selector
• Height Range: 1.5 in – 4.5 in
• Anti-Scalp Wheels: 2 Front Gauge Wheels

Chassis & Suspension

• Frame: 2" x 3" Full-Length Tubular Steel
• Front Axle: 2" x 3" Steel Tube
• Caster Mounts: 3/8" Thick Steel
• Suspension: Hand Lever Adjustable
• Platform: 3-Position Spring Suspension Foot Platform

Wheels & Tires

• Rear Tires: 24" x 12" - 12"
• Front Tires: 13" x 5" - 6"
• Type: Reliance Run-Flat (Carlisle®)

Controls & Features

• Cruise Control: Not Applicable
• Hour Meter: Included
• Brakes: External Band with Hand Lever
• Steering Controls: Lap Bar
• Operator Comfort: Spring Suspension Foot Platform

Dimensions

• Weight: Approx. 1080 lbs

Warranty

• Residential: 3-Year No-Hour-Limit
• Deck Shell: 5-Year / 1,750-Hour Limited
