Description:

The fully commercial IS3200ZBVE3772 is prepared to tackle all of your lawns demands with a 72 inch cutting deck and a powerful 37 hp 993cc Vanguard BIG BLOCK EFI engine. The 3200Z models are designed to move at higher speeds for longer amounts of time, completing more jobs faster without scalping the turf!

Features:

Engine

• Vanguard BIG BLOCK EFI
• 37 hp; 993 cc
• 2 Cylinders
• 11 Gal Fuel Tank Capacity

Cutting Deck

• 72 inch Deck
• 1.5 inch - 5 inch cutting height
• iCD Cutting System
• Adjustable rear coil-over-shocks and front independent adjustable coil-over-shocks

Transmission

• Dual commercial Hydro-Gear ZT-5400 Powertrain transaxles with 9 inch cooling fans
• 13 x 6.5-6 inch caster tires
• 26 x 12-12 inch drive tires

Operator Controls

• Adjustable rear coil-over-shocks
• Front independent adjustable coil-over-shocks
• ROPS is foldable up to 165 degrees
• Seat activated engine kill
• Neutral and Parking brake safety circuit
• Internal transaxles for parking brake

Specification:

Product Information

• Manufacturer: Ferris
• MPN: 5901459
• Grade: Commercial

Engine Specifications

• Engine Manufacturer: Vanguard
• Engine Size: 37 hp
• Engine Type: 4-Stroke
• Starting System: Electric Start
• Oil Filter: Yes
• Fuel Tank Volume: 11 gal

Drive and Transmission

• Drive System: Dual transaxles with 9" cooling fans
• Transmission Model: Hydro-Gear ZT-5400
• Speed Forward: 12 mph
• Speed Reverse: 6 mph

Productivity

• Productivity: Up to 7.2 acres per hour (based on 80% efficiency)

Tire Specifications

• Tire Size Front: 13 x 6.5-6
• Tire Size Rear: 26 x 12-12

Deck Specifications

• Deck Size: 72 in
• Cutting Deck Type: Fabricated
• Spindle Material: Cast Iron
• Greaseable Spindle: Yes
• Cutting Height: 1.5" - 5.0"
• Blade Engagement: Electric

Comfort and Dimensions

• Seat Type: Suspension
• Arm Rest: Yes
• Length: 84.5"
• Width:
• Deflector Down: 76.75"
• Deflector Up: 66.5"

Description:

Engineered to tame even the most demanding environments, you'll find the Ferris® F210Z is up to the challenge. Equipped with premium components, like dual commercial Hydro-Gear® ZT-5400 Powertrain® Transaxles and cast-iron spindles with top access grease fittings, this is one workhorse you and your crew can depend on. Choose between multiple engine options: a Vanguard™ 810 and Vanguard™ 810 EFI offering a 500 hour oil change interval with the new Oil Guard System or a Kawasaki® FX801V, all with a 3-year limited manufacturer's warranty†

Features:

• 500 Hour Oil Change (Select Models): Vanguard™ Engines with Oil Guard System reduce maintenance time and costs by up to 60%.**
• Affordable Power: Now available with a Briggs & Stratton® Vanguard™ 810cc engine, which delivers uncompromised power at an affordable price.
• iCD™ Cutting System: The iCD™ Cutting System was engineered to produce the best possible cut in a multitude of conditions.
• Accessibility: Quick removal of the floor pan provides convenient access to the top of the deck for easy cleaning and service.
• Cast-Iron Spindles: Longer usable life, 1" shaft with top access grease fitting for greaseable dual ball bearings, six-bolt 8" flange design adds strength and greater dispersal of energy to deck assembly.
• Foot-Operated Deck Lift: With an adjustable pedal, easily change change cut height in 1/4" increments from 1.5"- 6".
• Commercial Transmission: Dual, commercial Hydro-Gear® ZT-5400 Powertrain® Transaxles deliver unmatched power and durability.
• Premium Seat: Mid-back suspension seat with adjustable arm rests that helps take the bumps out of your work day.
• Ride-On Mower Warranties†: 4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Belts, tires, brake pads, battery, blades: 90 days.
• Traction: Large 24" drive tires allow for greater traction, smoother ride and improved curb climbing performance.

Specifications

• Engine Brand: Kawasaki® FX801V
• Displacement (cc): 852
• Cylinders: 2
• Fuel Tank Capacity (gal): 11
• Cutting Height (in): 1.5 - 6
• Deck Construction: iCD™ Cutting System
• Transmission: Dual commercial Hydro-Gear® ZT-5400 Powertrain® Transaxles with 9" cooling fans
• Caster Tires (in): 13 x 6.5-6 Flat-free
• Ground Speed-Fwd (mph): 0-10
• Overall Length (in): 79
• Dry Weight (lbs): 1190
• Instrumentation/Hour Meter: Fuel level gauge in each tank, hour meter
• Controls / Safety Group: Seat activated engine kill, clutch safety switch, neutral and parking brake safety circuit, adjustable twin steering controls
• Warranty (Engine) †: 3-Year limited manufacturer's warranty
• Brake: Internal transaxles
• Warranty Consumer Engine Info: 3-Year limited manufacturer's warranty
• Engine Power Rating *: 25.5 gross hp
• PTO: Electric
• Starter: Electric
• Cutting Width (in): 61
• Spindles: Cast-Iron
• Suspension: N/A
• Drive Axles (in): 1.375 Tapered
• Drive Tires (in): 24 x 12-12
• Ground Speed-Rev (mph): 0-5
• Overall Width (in) Deflector Down/Deflector Up: 76 / 63
• Seat Package: Premium suspension mid-back seat with arm rests, adjustable fore and aft positioning
• Certified Roll-over Protection System: Standard, 165° foldable
• Parking Brake / Safety Circuit: Internal transaxle
• Warranty (Balance of Machine) †: 4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coverage on other components varies, please see operator's manual for complete details.
• Engine Manufacturer: Kawasaki®
• Horse Power: 25.5 hp
• Engine Type: FX801V
• Displacement: 852 cc

General Specifications

• Transmission: Dual commercial Hydro-Gear® ZT-5400 Powertrain® Transaxles with 9 in. cooling fans
• Wheel Size: 24 x 12-12 in.
• Fuel Capacity: 11 gal.

Deck Specifications

• Deck Size: 61 in.

Description:

The fully commercial IS3200ZBVE3772 is prepared to tackle all of your lawns demands with a 72 inch cutting deck and a powerful 37 hp 993cc Vanguard BIG BLOCK EFI engine with Oil Guard. The 3200Z models are designed to move at higher speeds for longer amounts of time, completing more jobs faster without scalping the turf!

Features:

Engine Features

• Engine Type: Vanguard BIG BLOCK EFI with Oil Guard System
• Horsepower: 37 hp
• Displacement: 993 cc
• Cylinders: 2
• Fuel Tank Capacity: 11 gallons

Cutting Deck Features

• Deck Size: 72 inches
• Cutting Height Range: 1.5 inches - 5 inches
• Cutting System: iCD Cutting System with Hercules II Cast-Iron spindles
• Suspension: Adjustable rear coil-over shocks and front independent adjustable coil-over shocks

Transmission Features

• Transmission Type: Dual commercial Hydro-Gear ZT-5400 Powertrain transaxles with 9-inch cooling fans
• Caster Tires: 13 x 6.5-6 inches
• Drive Tires: 26 x 12-12 inches

Specification:

• Manufacturer: Ferris
• MPN: IS3200ZBVE3772
• Grade: Commercial
• Engine Manufacturer: Vanguard
• Starting System: Electric Start
• Engine Size: 37 hp
• Fuel Tank Volume: 11 gallons
• Engine Type: 4-Stroke
• Oil Filter: Yes

Drive and Transmission

• Drive System: Dual transaxles with 9" cooling fans
• Transmission Model: Hydro-Gear ZT-5400 Powertrain
• Speed Forward: 0-12 mph
• Speed Reverse: 0-6 mph

Productivity

• Productivity: Up to 7.2 acres per hour (based on 80% efficiency)

Tire Specifications

• Tire Size (Front): 13 x 6.5-6 inches
• Tire Size (Rear): 26 x 12-12 inches

Deck Specifications

• Deck Size: 72 inches
• Cutting Deck Type: Fabricated
• Spindle Material: Cast Iron
• Greaseable Spindle: Yes
• Cutting Height: 1.5" - 5.0"
• Blade Engagement: Electric

Comfort and Dimensions

• Seat Type: High Back
• Arm Rest: Yes
• Length: 84.5 inches
• Width:
• Deflector Down: 85.75 inches
• Deflector Up: 76.5 inches

Description:

The 500S zero turn mower is packed with essential features to deliver reliable productivity and performance. The differentiating 4 point suspension saves your body from the pains of continuous mowing. Plus, commercial-like performance and extras like the LED headlight make for a confident mowing experience season after season.

Specification:

Engine:

• Brand: Briggs & Stratton® CXi
• Power Rating: 25 HP
• Displacement: 724 cc
• PTO: Electric
• Cylinders: 2
• Starter: Electric
• Fuel Type: Gasoline
• Fuel Tank Capacity: 3 gallons
• Hour Meter/Instrumentation: Dual-function hour meter, fuel level gauge in tank

Mower Specifications:

• Deck Size: 52 inches
• Cutting Height: Adjustable from 1.5 to 4.5 inches
• Spindles: Aluminum, Greaseable
• Suspension: Front and rear adjustable dual coil-over shocks
• Transmission: Dual Hydro-Gear® ZT-3100® transaxles with 7" cooling fans
• Deck Construction: Fabricated 10-gauge steel
• Drive Axles: 1 inch
• Caster Tires: 13 X 6.5-6 inches
• Drive Tires: 22 X 11 - 10 inches
• Ground Speed (Forward): 0-8.5 mph
• Ground Speed (Reverse): 0-4 mph
• Overall Length: 78.5 inches
• Overall Width (Deflector Down/Deflector Up): 64 inches
• Seat Package: Mid-back seat with armrests
• Certified Roll-over Protection System: N/A
• Controls/Safety Group: Seat activated engine kill, clutch safety switch, neutral and parking brake safety circuit, adjustable twin steering controls
• Parking Brake/Safety Circuit: Hand-operated internal transaxle brake

Warranty:

• Engine: 3-Year Manufacturer’s Limited Warranty (36 months)
• Balance of Machine: Consumer Warranty (Product), 3-Years / Commercial Warranty (Product), 90-Days

Description:

Mow More Lawn in Less Time. the Is® 700 Series, With up to Five Feet of Cutting Width, Features Our Patented Suspension Technology, Icd™ Cutting System, Heavy-Duty Hydro-Gear Zt-3200® Drive System, and a Top Speed of 10 Mph. This Mower Is Full of Features to Improve the Quality of Cut and Increase Productivity and Comfort.

Features

• Patented Suspension: Consists of rear coil-over-shocks (shown) and pivoting front axle with coil-over-shocks.
• Ride-On Mower Warranties†: Coil-Over-Shocks and all suspension-related components are covered for 5 years (60 months), for unlimited hours. We are committed to providing performance, productivity and durability.
• Exceptional Performance: The well-tuned steering system delivers smooth and confident operation for excellent performance time after time.
• Integrated Transmissions: Commercial Hydro-Gear® ZT-3200™ transaxles are designed for high performance and are fully serviceable.
• Easy Access: Quick removal of the floor pan provides convenient access to the top of the deck for easy cleaning and service.
• iCD™ Cutting System: Innovative iCD™ Cutting System was engineered to produce the best possible cut in a multitude of conditions.
• Mower Spindles: Cast-aluminum greaseable spindles feature 1" shaft with 2.5" x 1" dual ball bearings with top access grease fittings and pressure relief valve.
• Heavy-Duty Bumper: Heavy-duty bumper protects the engine while also allowing for easy service access.
• Acres Per Hour: Mows up to 5 acres per hour, based on 80% efficiency.
• Miles Per Hour: Up to 10 MPH ground speed, reverse 5 MPH.

Specifications

• Model Number: 5901797
• Engine Brand: Briggs & Stratton® Commercial Series
• Engine Power Rating *: 27
• Displacement (cc): 810
• PTO: Electric
• Cylinders: 2
• Starter: Electric
• Fuel Type: Gasoline
• Fuel Tank Capacity (gal): 5.5
• Cutting Width (in): 61
• Cutting Height (in): 1.5 - 5
• Spindles: Aluminum Greaseable
• Deck Construction: iCD™ Cutting System
• Suspension: Adjustable front and rear coil-over-shocks with pivoting front axle and a rear swing-arm with large adjustable coil-over-shocks
• Transmission: Dual, commercial Hydro-Gear ZT-3200® Transaxles with 7" cooling fans
• Drive Axles (in): 1.125
• Caster Tires (in): 13 X 6.5-6
• Drive Tires (in): 22 X 11-10
• Ground Speed-Fwd (mph): 0-10
• Ground Speed-Rev (mph): 0-5
• Overall Length (in): 81
• Overall Width (in) Deflector Down/Deflector Up: 75.75/65.5
• Dry Weight (lbs): 1113
• Seat Package: Mid-back suspension seat with arm rests
• Certified Roll-over Protection System: Standard, 180° foldable
• Controls / Safety Group: Seat activated engine kill, clutch safety switch, neutral and parking brake safety circuit/adjustable twin steering controls
• Parking Brake / Safety Circuit: Internal transaxles
• Warranty (Balance of Machine) †: 4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over-shocks and all suspension related components are covered for 5 years (60 months) unlimited hours. Coverage on other components varies, please see operator's manual for complete details.
• Mower Deck Warranty: 3-Year limited manufacturer's warranty
• Engine Configuration: Briggs & Stratton®

Description:

The job isn't done until all the nooks and crannies of the property are mowed, including around trees and landscaping. That's why every crew needs an FW15 on the truck. This variable hydrostatic 32" commercial walk-behind is sturdy enough for the rigors of commercial work and is also maneuverable and easy to operate.

Specifications:

Engine

• Brand: Honda® GXV390
• Power Rating: 10.2 hp
• Displacement: 389 cc
• PTO: Manual, Cable
• Cylinders: 1
• Starter: Manual
• Fuel Tank Capacity: 0.55 gal

Cutting Deck

• Deck Size: 32 in
• Cutting Height Range: 1.5 - 5 in
• Spindles: Aluminum Greaseable
• Deck Construction: 14 and 12-gauge steel

Transmission

• Type: Peerless axle with differential, chain driven by Hydro-Gear® RT-310 pump and motor
• Drive Axles: 0.75 in

Tires

• Caster Tires: 10.5 x 3 Lockable Wheel
• Drive Tires: 13 x 5-6

Speed

• Forward Speed: 0 - 4 mph
• Reverse Speed: 0 - 2 mph

Dimensions

• Overall Length: 73.5 in
• Overall Width (Deflector Down): 44 in
• Overall Width (Deflector Up): 32.5 in
• Dry Weight: 285 lbs

Instrumentation & Safety

• Instrumentation: Speed Indicator
• Safety Controls: Blade Control Bail Operator Presence Control (OPC)

Warranty

• Balance of Machine Warranty: 2-year limited warranty for commercial use (parts & labor), with varying coverage for other components
• Engine Warranty: 3-year limited engine warranty

Description:

The Leader In Suspension Technology For Turf

Featuring the next generation of Ferris suspension technology - ForeFront™ Suspension, a 2-belt iCD™ cutting system, heavy-duty dual commercial Hydro-Gear® ZT-5400 drive system and travel speeds up to 12 mph, the ISX™ 3300 is engineered to increase efficiency and operator comfort.

Features

• Forefront™ Suspension System
• Ride-On Mower Warranties
• Redesigned Rear Bumper
• 500 Hour Oil Change
• Drive System: Dual, commercial Hydro-Gear® ZT-5400 Powertrain® transaxles with 9" cooling fans
• Premium High-Back Suspension Seat
• Adjustable Cut Height
• Hercules™ II Cast-Iron: Hercules™ II Cast-Iron; 10" dia. cast-iron with industrial double row angular contact ball bearing with 1 3/16" dia. shaft. Contact ball bearings with 1 3/16" dia. shaft.

Specifications

• Model Number: 5901982
• Engine Brand: Kawasaki® FX1000V EFI
• Engine Power Rating *: 38.5
• Displacement (cc): 999
• Cylinders: 2
• Starter: Electric
• Fuel Type: Gasoline
• Fuel Tank Capacity (gal): 11
• Hour Meter/Instrumentation: Dual-function hour meter, fuel level gauge in each tank
• Cutting Width (in): 61
• Cutting Height (in): 1.5 - 5
• Spindles: Hercules™ II Cast-Iron
• Deck Construction: iCD™ Cutting System
• Suspension: ForeFront™ Suspension System
• Transmission: Dual commercial Hydro-Gear® ZT-5400 Powertrain® Transaxles with 9" cooling fans
• Drive Axles (in): 1.375
• Caster Tires (in): 13 x 6.5-6
• Drive Tires (in): 26 x 12-12
• Ground Speed-Fwd (mph): 0-12
• Ground Speed-Rev (mph): 0-5
• Overall Length (in): 84.5
• Overall Width (in) Deflector Down/Deflector Up: 77/66.5
• Dry Weight (lbs): 1470
• Seat Package: Premium high-back Suspension Seat with arm rests, multiposition head rest, adjustable lumbar and back recline
• Certified Roll-over Protection System: 165° foldable
• Controls / Safety Group: Seat activated engine kill, clutch safety switch, neutral and parking brake safety circuit, adjustable twin steering controls
• Parking Brake / Safety Circuit: Hand operated internal transaxle brake
• Warranty (Engine) †: 3-Year limited manufacturer's warranty
• Warranty (Balance of Machine) †: 4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over-shocks and all suspension related components are covered for 5 years (60 months) unlimited hours. Belts, tires, brake pads, battery, blades: 90 days.
• Engine Configuration: Kawasaki®

Specification:

Engine:

• Manufacturer: Kawasaki®
• Horse Power: 38.5 hp
• Type: FX1000V EFI
• Displacement: 999cc

General:

• Transmission: Dual commercial Hydro-Gear® ZT-5400 Powertrain® Transaxles with 9 in. cooling fans
• Wheel Size: 26 x 12-12 in.
• Fuel Capacity: 11 gal.

Deck:

• Deck Size: 61 in.

Description:

The IS® 3200 is the latest in mowing technology. We took our top-of-the-line design and made it even more reliable and durable. This drive system features independent, commercial Hydro-Gear® ZT-5400 Powertrain® Transaxles for improved dependability and increased performance, large 26" drive tires allow for greater traction, smoother ride and improved curb climbing performance.

Features

• 500 Hour Oil Change (Select Models): Vanguard™ Engines with Oil Guard System reduce maintenance time and costs by up to 60%.**
• Patented Suspension: Consists of rear coil-over-shocks (shown) and pivoting front axle with coil-over-shocks.
• Ride-On Mower Warranties†: Coil-Over-Shocks and all suspension-related components are covered for 5 years (60 months), for unlimited hours. We are committed to providing performance, productivity and durability.
• Smooth Controls: Smooth, precision controls last longer as a result of pillow block bearings on control mounts.
• Powerful Engine: For the most challenging applications, this Big Block engine has been expertly engineered to deliver the dependability to get more done in less time. Models are available with 32 or 37 Gross HP*.
• Hydro-Gear ZT-4400™ Transaxles: Dual-commercial transaxles with 8.3" cooling fans to repel debris.
• Easy Access: Quick removal of the floor pan provides convenient access to the top of the deck for easy cleaning and service.
• Adjust Cut Height: Foot-operated deck lift, with adjustable pedal, can change cut height in 1/4" increments from 1.5"- 5".
• Drive Tires: Large 26" drive tires allow for greater traction, smoother ride and improved curb climbing performance.
• Hercules™ II Cast-Iron: Hercules™ II Cast-Iron; 10" dia. cast-iron with industrial double row angular contact ball bearing with 1 3/16" dia. shaft. Contact ball bearings with 1 3/16" dia. shaft.
• Acres Per Hour: Mows up to 7.2 acres per hour, based on 80% efficiency.
• Miles Per Hour: Up to 12 MPH ground speed, reverse 6 MPH.

Specifications

• Model Number: 5901577
• Engine Brand: Vanguard™ BIG BLOCK™ EFI with Oil Guard
• Engine Power Rating *: 37
• Displacement (cc): 993
• PTO: Electric
• Cylinders: 2
• Starter: Electric
• Fuel Tank Capacity (gal): 11
• Cutting Width (in): 61
• Cutting Height (in): 1.5 - 5
• Spindles: Hercules™ II Cast-Iron
• Deck Construction: iCD™ Cutting System
• Suspension: Adjustable rear coil-over-shocks and front independent adjustable coil-over-shocks
• Transmission: Dual Commercial Hydro-Gear® ZT-5400 Powertrain® transaxles with 9" cooling fans
• Drive Axles (in): 1.375
• Caster Tires (in): 13 X 6.5-6
• Drive Tires (in): 26 X 12-12
• Ground Speed-Fwd (mph): 0-12
• Ground Speed-Rev (mph): 0-5
• Overall Length (in): 84.5
• Overall Width (in) Deflector Down/Deflector Up: 76.75/66.5
• Dry Weight (lbs): 1443
• Seat Package: Suspension Seat
• Certified Roll-over Protection System: Standard, 165° foldable
• Controls / Safety Group: Seat activated engine kill, clutch safety switch, neutral and parking brake safety circuit, adjustable twin steering controls
• Parking Brake / Safety Circuit: Internal transaxles
• Warranty (Balance of Machine) †: 4-Year Limited Warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over-shocks and all suspension related components are covered for 5 years (60 months) unlimited hours. Belts, tires, brake pads, battery, blades: 90 days.

Description:

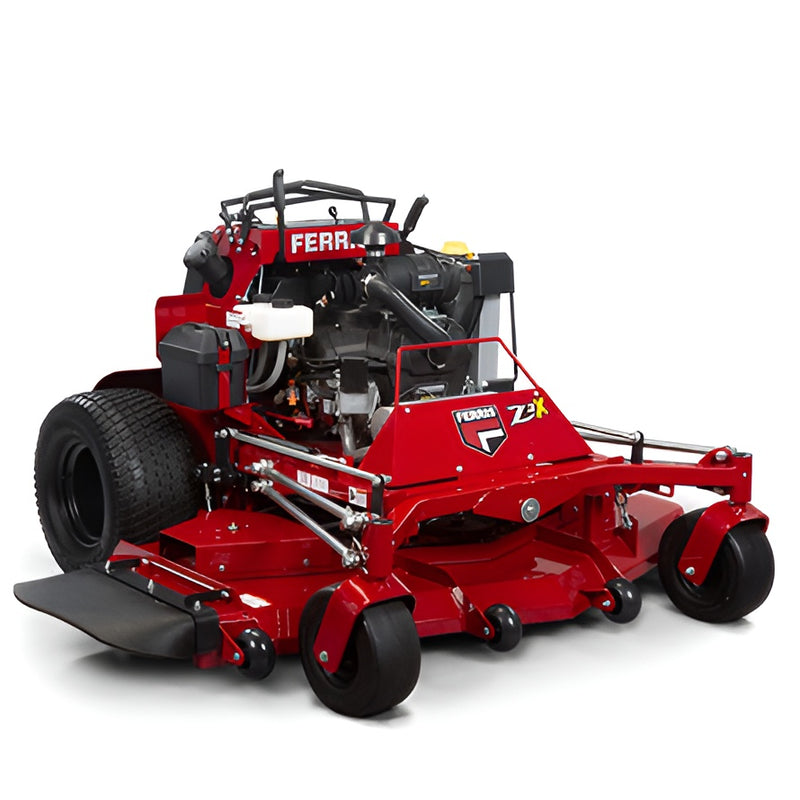

Superior Traction With Stand-out Performance

Built to deliver superior traction and performance, the SRS™ Z3X raises the bar for stand-on productivity. With 52”, 61” and 72” deck options, the Z3X increases productivity without sacrificing the trusted Ferris cut quality. A pivoting front axle allows the Z3X to grip on steep inclines, meaning you can mow safer and more efficiently on even the most difficult yards.

Features

• Pivoting Front Axle with Radius Rod: Robust front axle ensures that all four wheels hold their contact, enhancing comfort and quality of cut.
• Suspension Platform System: The suspension platform system is adjustable for a large range of weights and operating conditions, optimizing operator comfort and increasing productivity.
• 500 Hour Oil Change (Select Models): Vanguard™ Engines with Oil Guard System reduce maintenance time and costs by up to 60%.**
• Ride-On Mower Warranties†: Coil-Over-Shocks and all suspension-related components are covered for 5 years (60 months), for unlimited hours. We are committed to providing performance, productivity and durability.
• Large Fuel Capacity: Generous 11-gallon fuel tank is centrally located for consistent balance, and the fuel filler neck is conveniently located on the side for easy filling.
• Adjustable Speed Control: No tools are required to set the speed control bar, in increments of 1-2 mph, for smooth operation to max travel speed of 12 mph.

Specifications

• Model Number: 5901951
• Engine Brand: Vanguard™ BIG BLOCK™ EFI with Oil Guard
• Engine Power Rating (hp) *: 37
• Starter: Electric
• Displacement (cc): 993
• PTO: Electric
• Cylinders: 2
• Fuel Tank Capacity (gal): 11
• Deck Construction: iCD™ Cutting System
• Cutting Width (in): 61
• Cutting Height (in): 1.75 - 5
• Spindles: Cast-iron
• Suspension: Operator suspension platform with coil-over-shock suspension
• Transmission: Dual commercial Hydro-Gear® ZT-4400® transaxles with 8" cooling fans
• Drive Axles (in): 1.375
• Drive Tires (in): 24 X 12-12
• Caster Tires (in): 13 X 6.5-6 flat-free
• Ground Speed-Fwd (mph): 0 - 12
• Ground Speed-Rev (mph): 0 - 5
• Overall Length (in): 73.75
• Overall Width (in) Deflector Down/Deflector Up: 75.25 / 67
• Dry Weight (lbs): 1267
• Instrumentation: Dual-function hour meter, fuel level gauge
• Safety Group/Controls: Operator presence in platform, Parking brake safety circuit for starting engine, Automatic PTO restart
• Parking Brake / Safety Circuit: Hand-operated internal transaxle brake
• Warranty (Balance of Machine) †: 4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over-shocks and all suspension related components are covered for 4 years (48 months) unlimited hours. Coverage on other components varies, please see operator's manual for complete details.
• Warranty (Engine) †: 3-Year limited manufacturer's warranty

Engine:

• Manufacturer: Vanguard™
• Type: BIG BLOCK™ EFI with Oil Guard
• Displacement: 993cc

General:

• Transmission: Dual commercial Hydro-Gear® ZT-4400® transaxles with 8" cooling fans
• Wheel Size: 24 x 12-12 in.
• Fuel Capacity: 11 gal.

Deck:

• Deck Size: 61 in.

Description:

The Soft Ride Stand-On SRS™ Z2 features our adjustable operator platform with suspension technology that optimizes operator comfort and increases productivity without sacrificing quality-of-cut. The superior balance on the Z2 provides excellent stability and maneuverability that exceeds expectations for traction and handling.

Features

• Suspension Platform System: The suspension platform system is adjustable for a large range of weights and operating conditions, optimizing operator comfort and increasing productivity.
• 500 Hour Oil Change (Select Models): Vanguard™ Engines with Oil Guard System reduce maintenance time and costs by up to 60%.**
• Fuel Capacity: Generous 8-gallon fuel tank is centrally located for consistent balance, and the fuel filler neck is conveniently located on the side for easy filling.
• Vanguard™ 810cc EFI engines: Vanguard™ 810cc engines deliver the optimum power, performance and efficiency commercial zero-turn mowers need.
• Speed Control Setting: The easy locking 3-position speed control setting is conveniently located and requires no tools to facilitate smooth operation in a wide range of conditions.
• Standing Comfort: Ergonomically designed thigh pad provides superior operator comfort and stability, especially on hilly terrain.
• Adjustable Height of Cut: Height of cut is easily changed from the operator compartment for no hassle curb climbing and trailer loading. The hand-operated deck lift can change cut height in 1/4" increments from 1.75"- 5".
• Integrated Mowing Transmissions: Commercial Hydro-Gear® ZT-3800® transaxles are designed for high performance and are fully serviceable.
• iCD™ Cutting System: Innovative iCD™ Cutting System was engineered to produce the best possible cut in a multitude of conditions.
• Ride-On Mower Warranties†: Coil-Over-Shocks and all suspension-related components are covered for 5 years (60 months), for unlimited hours. We are committed to providing performance, productivity and durability.

Specifications:

• Model Number: 5901949
• Engine Brand: Vanguard™ 810 EFI with Oil Guard
• Engine Power Rating (hp) *: 28
• Starter: Electric
• Displacement (cc): 810
• PTO: Electric
• Cylinders: 2
• Fuel Tank Capacity (gal): 8
• Deck Construction: iCD™ Cutting System
• Cutting Width (in): 61
• Cutting Height (in): 1.75 - 5
• Spindles: Cast-iron
• Suspension: Adjustable coil-over-shock; Operator Suspension Platform
• Transmission: Dual, commercial Hydro-Gear® ZT-3800® transaxles with 7" cooling fans and oil coolers
• Drive Axles (in): 1.125
• Drive Tires (in): 23 x 10.5-12
• Caster Tires (in): 13 x 5-6, Flat-free
• Ground Speed-Fwd (mph): 0 - 10
• Ground Speed-Rev (mph): 0 - 5
• Overall Length (in): 72.75
• Overall Width (in) Deflector Down/Deflector Up: 77 / 64
• Dry Weight (lbs): 998
• Instrumentation: Dual-function hour meter, fuel level gauge
• Safety Group/Controls: Operator presence in platform, Parking brake safety circuit for starting engine, Automatic PTO restart
• Parking Brake / Safety Circuit: Hand operated; Internal transaxle brake
• Warranty (Balance of Machine) †: 4-Year limited warranty (48 months) or 500 hours whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over-shocks and all suspension related components are covered for 5 years (60 months) unlimited hours. Transaxles are covered for 3 years (36 months). Coverage on other components varies, please see operator's manual for complete details.
• Warranty (Engine) †: 3-Year limited manufacturer's warranty

Description:

The Soft Ride Stand-On SRS™ Z2 features our adjustable operator platform with suspension technology that optimizes operator comfort and increases productivity without sacrificing quality-of-cut. The superior balance on the Z2 provides excellent stability and maneuverability that exceeds expectations for traction and handling.

Features:

• Suspension Platform System
• 500 Hour Oil Change (Select Models)
• Fuel Capacity
• Vanguard™ 810cc EFI engines
• Speed Control Setting
• Standing Comfort
• Adjustable Height of Cut
• Integrated Mowing Transmissions
• iCD™ Cutting System
• Ride-On Mower Warranties

Specifications:

• Model Number: 5901947
• Engine Brand: Kawasaki® FX801V
• Engine Power Rating *: 25.5 HP
• Starter: Electric
• Displacement: 852cc
• PTO: Electric
• Cylinders: 2
• Fuel Tank Capacity: 8 gal.
• Deck Construction: iCD™ Cutting System
• Deck Size: 52 in.
• Cutting Height: 1.75 - 5 in.
• Spindles: Aluminum Greaseable
• Suspension: Adjustable coil-over-shock; Operator Suspension Platform
• Transmission: Dual, commercial Hydro-Gear® ZT-3800® transaxles with 7 in. cooling fans and oil coolers
• Drive Axles: 1.125 in.
• Drive Tires: 23 x 10.5-12 in.
• Caster Tires: 13 x 5-6, Flat-free in.
• Ground Speed-Fwd: 0 - 10 mph
• Ground Speed-Rev: 0 - 5 mph
• Overall Length: 67 in.
• Overall Width Deflector Down/Deflector Up: 65 / 54.75 in.
• Dry Weight: 938 lb.
• Seat Package: N/A
• Certified Roll-over Protection System: N/A
• Instrumentation: Dual-function hour meter, fuel level gauge
• Safety Group/Controls: Operator presence in platform, Parking safety circuit for starting engine, Automatic PTO restart
• Parking Brake / Safety Circuit: Hand operated, Internal transaxle brake
• Warranty (Balance of Machine): 4-Year limited warranty (48 months) or 500 hours whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over-shocks and all suspension related components are covered for 5 years (60 months) unlimited hours. Transaxles are covered for 3 years (36 months). Coverage on other components varies, please see operator's manual for complete details.
• Warranty (Engine): 3-Year limited manufacturer's warranty

Description:

Ideal for tight gates and smaller trailers the SRS Z1 offers excellent productivity in a compact frame. True to the Soft Ride Stand-on (SRS) series, the adjustable operator platform on the Z1 features suspension technology, improving operator comfort and performance.

Features

• Suspension Platform System
• Adjustable Height of Cut
• Speed Control Setting
• Standing Comfort
• Integrated Mowing Transmissions
• iCD™ Cutting System
• Generous Fuel Capacity
• Ride-On Mower Warranties

Specifications

• Model Number: 5901942
• Engine Brand: Vanguard®
• Engine Power Rating *: 23 HP
• Starter: Electric
• Displacement: 627 cc
• PTO: Electric
• Cylinders: 2
• Fuel Tank Capacity: 6 gal.
• Deck Size: 48 in.
• Cutting Height: 1.75-4.5 in.
• Spindles: Aluminum Greaseable
• Suspension: Adjustable coil-over shock; Operator Suspension Platform
• Transmission: Hydro-Gear® ZT-3400® transaxles with 7 in. cooling fans
• Drive Axles: 1.125 in.
• Drive Tires: 23 x 10.5-12 in.
• Caster Tires: 11 x 4-5 in., Flat-free
• Ground Speed-Fwd: 0-8 mph
• Ground Speed-Rev: 0-4 mph
• Overall Length: 65 in.
• Overall Width Deflector Down/Deflector Up: 59.5 / 54 in.
• Dry Weight: 866 lb.
• Seat Package: N/A
• Certified Roll-over Protection System: N/A
• Instrumentation: Dual-function hour meter, fuel level gauge
• Safety Group/Controls: Operator presence in platform, parking brake safety circuit for starting engine, automatic PTO restart
• Parking Brake / Safety Circuit: Hand-operated internal transaxle brake
• Warranty (Balance of Machine) : 4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over-shocks and all suspension related components are covered for 6 years (60 months) unlimited hours. Transaxles are covered for 3 years (36 months). Coverage on other components varies, please see operator's manual for complete details.
• Warranty (Engine) : 3-Year limited manufacturer's warranty
• Deck Construction: iCD™ Cutting System

Description:

Ideal for tight gates and smaller trailers the SRS Z1 offers excellent productivity in a compact frame. True to the Soft Ride Stand-on (SRS) series, the adjustable operator platform on the Z1 features suspension technology, improving operator comfort and performance.

Specifications:

Engine

• Brand: Kawasaki®
• Model: FX691V
• Power Rating: 22 hp
• Starter: Electric
• Displacement: 726 cc
• PTO: Electric
• Cylinders: 2

Fuel System

• Fuel Tank Capacity: 6 gal

Cutting Deck

• Deck Size: 48 in
• Cutting Height Range: 1.75 - 4.5 in
• Spindles: Aluminum Greaseable

Suspension

• Suspension Type: Adjustable coil-over shock; Operator Suspension Platform

Transmission

• Type: Hydro-Gear® ZT-3400® transaxles with 7" cooling fans

Drive System

• Drive Axles: 1.125 in
• Drive Tires: 23 x 10.5-12
• Caster Tires: 11 x 4-5, Flat-free

Speed

• Ground Speed Forward: 0 - 8 mph
• Ground Speed Reverse: 0 - 4 mph

Dimensions

• Overall Length: 65 in
• Overall Width: 59.5 in (Deflector Down), 54 in (Deflector Up)
• Dry Weight: 866 lbs

Features

• Instrumentation: Dual-function hour meter, fuel level gauge
• Safety Controls: Operator presence in platform, parking brake safety circuit for starting engine, automatic PTO restart
• Parking Brake / Safety Circuit: Hand-operated internal transaxle brake

Description:

Ideal for tight gates and smaller trailers the SRS Z1 offers excellent productivity in a compact frame. True to the Soft Ride Stand-on (SRS) series, the adjustable operator platform on the Z1 features suspension technology, improving operator comfort and performance.

Specification:

Model Number:

• Model Number: 5901939

Pricing:

• US MSRP: $9,699.00
• CAN MSRP: $13,099.00

Engine:

• Brand: Kawasaki® FX600V
• Power Rating: 19 hp
• Displacement: 603 cc
• Starter: Electric
• PTO: Electric
• Cylinders: 2
• Fuel Tank Capacity: 6 gal

Deck:

• Size: 36 in
• Cutting Height: 1.75 - 4.5 in
• Spindles: Aluminum, Greaseable
• Construction: 10-gauge fabricated

Suspension:

• Type: Adjustable coil-over shock, Operator Suspension Platform

Transmission:

• Type: Hydro-Gear® ZT-3400® transaxles with 7" cooling fans

Drive System:

• Drive Axles: 1.125 in
• Drive Tires: 23 x 8.5-12 in
• Caster Tires: 11 x 4-5 in, Flat-free

Speed:

• Ground Speed (Forward): 0-8 mph
• Ground Speed (Reverse): 0-4 mph

Dimensions:

• Overall Length: 65 in
• Overall Width (Deflector Down/Up): 49 in / 42 in
• Dry Weight: 813 lbs

Seat Package:

• Type: N/A

Certified Roll-over Protection System:

• Type: N/A

Instrumentation:

• Hour Meter: Dual-function
• Fuel Level Gauge: Yes

Safety Group / Controls:

• Operator Presence: In platform
• Parking Brake / Safety Circuit: For starting engine
• Automatic PTO Restart: Yes

Parking Brake / Safety Circuit:

• Type: Hand-operated internal transaxle brake

Warranty:

• Balance of Machine: 4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over-shocks and all suspension-related components are covered for 6 years (60 months) unlimited hours. Transaxles are covered for 3 years (36 months). Coverage on other components varies; please see operator's manual for complete details.
• Engine: 3-Year limited manufacturer's warranty

Description:

The IS® 600 is a compact zero turn with the productivity and comfort features landscapers are looking for. Featuring our patented suspension technology, heavy-duty Hydro-Gear® ZT-3200™ Drive System, and speeds up to 10 mph, this mower can tackle tight spaces while providing maximum maneuverability and productivity.

Mower Specifications:

Model Number:

• Model Number: 5901911

Pricing:

• US MSRP: $8,899.00
• CAN MSRP: $12,049.00

Engine:

• Brand: Kawasaki® FS691V
• Power Rating: 23 hp
• Displacement: 726 cc
• PTO: Electric
• Cylinders: 2
• Starter: Electric
• Fuel Type: Gasoline
• Fuel Tank Capacity: 5.5 gal

Hour Meter/Instrumentation:

• Hour Meter: Dual-function
• Fuel Level Gauge: In tank

Deck:

• Size: 52 in
• Cutting Height: 1.5 - 4.5 in
• Spindles: Aluminum, Greaseable
• Construction: 10-gauge fabricated

Suspension:

• Front and Rear: Adjustable coil-over-shocks with pivoting front axle and rear swing-arm with large adjustable coil-over-shocks

Transmission:

• Type: Dual commercial Hydro-Gear® ZT-3200® transaxles with 7" cooling fans

Drive System:

• Drive Axles: 1.125 in
• Caster Tires: 13 x 6.5-6 in
• Drive Tires: 22 x 11-10 in

Speed:

• Ground Speed (Forward): 0-10 mph
• Ground Speed (Reverse): 0-5 mph

Dimensions:

• Overall Length: 80 in
• Overall Width (Deflector Down/Up): 66.75 in / 56.5 in
• Dry Weight: 964 lbs

Seat Package:

• Type: Mid-back seat with arm rests

Certified Roll-over Protection System:

• Type: 180° Foldable

Controls / Safety:

• Steering Levers: Adjustable twin fold-out 1" tubular with comfort grip
• Parking Brake / Safety Circuit: Hand-operated internal transaxle brake

Warranty:

• Engine: 3-Year Manufacturer's Limited Warranty (36 months)
• Balance of Machine: 4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over-shocks and all suspension-related components are covered for 5 years (60 months) unlimited hours. Coverage on other components varies; please see operator's manual for complete details.

Engine Configuration:

• Brand: Kawasaki®

Description:

The SRS™ Z1 offers all of the same great productivity and comfort as the larger SRS Z2, but in a more compact package. With smaller mowing deck options, the Z1 is optimal for navigating through tight gates or loading on smaller trailers. True to the Soft Ride Stand-on (SRS) series, the adjustable operator platform on the Z1 features suspension technology, improving operator comfort and performance.

Features

• Ride-On Mower Warranties†: Coil-Over-Shocks and all suspension-related components are covered for 5 years (60 months), for unlimited hours. We are committed to providing performance, productivity and durability.
• Speed Control Setting: The easy locking 3-position speed control setting is conveniently located and requires no tools to facilitate smooth operation in a wide range of conditions.
• Suspension Platform System: The suspension platform system is adjustable for a large range of weights and operating conditions, optimizing operator comfort and increasing productivity.
• Standing Comfort: Ergonomically designed thigh pad provides superior operator comfort and stability, especially on hilly terrain.
• Adjustable Height of Cut: Height of cut is easily changed from the operator compartment for no hassle curb climbing and trailer loading. The hand-operated deck lift can change cut height in 1/4" increments from 1.75"- 4.5".
• Integrated Mowing Transmissions: Commercial Hydro-Gear® ZT-3400® transaxles with 7" cooling fans are designed for high performance and are fully serviceable.
• iCD™ Cutting System: Innovative iCD™ Cutting System was engineered to produce the best possible cut in a multitude of conditions.
• Generous Fuel Capacity: A 6-gallon fuel tank is centrally located for consistent balance, and the fuel filler neck is conveniently located on the side for easy filling.

Specifications

• Model Number: 5901546
• Engine Brand: Kawasaki® FX600V
• Engine Power Rating (hp) *: 19
• Starter: Electric
• Displacement (cc): 603
• PTO: Electric
• Cylinders: 2
• Fuel Tank Capacity (gal): 6
• Cutting Width (in): 36
• Cutting Height (in): 1.75-4.5
• Spindles: Aluminum
• Suspension: Adjustable coil-over-shock, Operator Suspension Platform
• Transmission: Hydro-Gear® ZT-3400® transaxles with 7" cooling fans
• Drive Axles (in): 1.125
• Drive Tires (in): 23 x 8.5-12
• Caster Tires (in): 11 x 4-5, Flat free
• Ground Speed-Fwd (mph): 0-8
• Ground Speed-Rev (mph): 0-4
• Overall Length (in): 63.75
• Overall Width (in) Deflector Down/Deflector Up: 49 / 42
• Dry Weight (lbs): 813
• Seat Package: N/A
• Certified Roll-over Protection System: N/A
• Instrumentation: Dual-function hour meter, fuel level gauge
• Safety Group/Controls: Operator presence in platform, parking brake safety circuit for starting engine, automatic PTO restart
• Parking Brake / Safety Circuit: Hand-operated internal transaxle brake
• Warranty (Balance of Machine) †: 4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over-shocks and all suspension related components are covered for 6 years (60 months) unlimited hours. Transaxles are covered for 3 years (36 months). Coverage on other components varies, please see operator's manual for complete details.
• Warranty (Engine) †: 3-Year limited manufacturer's warranty
