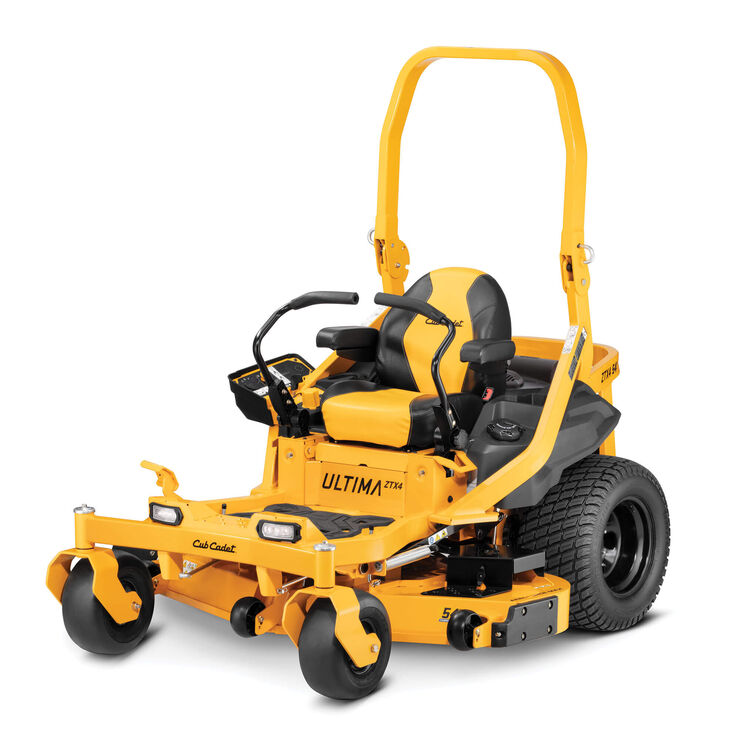

Description:

The Cub Cadet® Ultima Series ZTX4 54 is a 54-inch zero-turn lawn mower with a 26 HP engine. It features an AeroForce™ Max reinforced fabricated deck, designed to provide a high-quality cut with few clumps and an even finish. The mower is made with 10-gauge reinforced steel and has low-maintenance spindles. Its smooth arc triple blades and deep dome deck design allow you to mow a wide area of grass. With dual hydrostatic transmissions, it offers quick ground speeds, giving your yard a professional look.

Features:

• 26 HP* 747cc Kohler® KT-Pro 7000 series V-twin OHV engine built for reliable starting and a quiet operation
• Dual hydrostatic transmissions allow for 8 MPH forward (3.5 MPH reverse) ground speeds
• A high-strength, continuous 1.5 in. x 3 in. tubular steel frame with fully e-coat lower frame and corrosion defense system, a multi-step process that electronically applies corrosion resistance with meticulous care to help protect against wear and tear
• 54 in. AeroForce™ Max 10-Gauge reinforced fabricated steel cutting deck with low maintenance spindles, smooth arc triple-blades, cut overlap and deep dome deck design that is designed to provides flawless results, mows a wide area of grass to help reduce cutting time, and helps provide your lawn with a clean, premium cut

Specifications:

Engine

• Brand: Kohler®
• Series: Pro 7000
• Model Number: KT745
• Displacement: 747cc
• Horsepower: 26 HP
• Starter Type: Electric (Ignition Key)
• Fuel Tank Capacity: 5.5 gal. US (20.82 L)
• Cylinders: Twin
• Oil Capacity: 2.0 qt. US (1.89 L)
• Lubrication: Fully pressurized
• Charging System: 12 amp regulated
• Governor: Mechanical
• Fuel Delivery: Carburetor
• Choke: Separate Choke
• Air Filter: Dual element
• Oil Filter: Yes

Battery

• Battery: 210 CCA
• Type: AGM (Absorbent Glass Mat)
• Voltage: 12V

Drive System

• Transmission: Hydro-Gear ZT 3100
• Type: Hydrostatic
• Forward Speed: 8 MPH / 12.9 km/h
• Reverse Speed: 3.5 MPH / 5.6 km/h

Cutting Deck

• Cutting Width: 54 in
• Material: 10-gauge steel w/ 2-gauge reinforcement
• Deck Type: Reinforced Fabricated
• Blade Engagement (PTO): Electric
• Blade Count: Three
• Deck Lift: Foot pedal with Dial Adjust
• Cutting Height Range: 1" – 4.75"
• Deck Height Positions: 17
• Deck Wash: No
• Anti-Scalping Wheels: Three

Chassis & Frame

• Frame: 1.5" x 3" tubular steel
• Turning Radius: 0° (Zero-Turn)
• ROPS: Yes
• Tow Hitch: Yes
• Corrosion Protection: Yes

Controls & Operation

• Cruise Control: No
• Brakes: Disc
• Steering Control: Lap Bars
• Parking Brake: Lap Bar Integrated

Comfort & Ergonomics

• Seat Type: 20" High-back
• Armrests: Yes
• Seat Adjustment: Lever
• Front Caster Suspension: No

Wheels & Tires

• Rear Tires: 22" x 12"-12"
• Front Tires: 13" x 6.5"-6"
• Tire Tread: Turf Master / Multi Trac

Additional Features

• Hour Meter: Yes
• Mulch Kit: Available separately
• Headlights: Dual-LED
• Cup Holder: Yes
• Operator Presence System: Yes

Model & Warranty

• Model Number: 47TSAAA7A10
• Series: Ultima Series™ ZTX
• Residential Warranty: 4-year / 800 hours
• Commercial Warranty: 4-year / 800 hours
• Frame Warranty: Lifetime Limited
• Deck Shell Warranty: Lifetime Limited

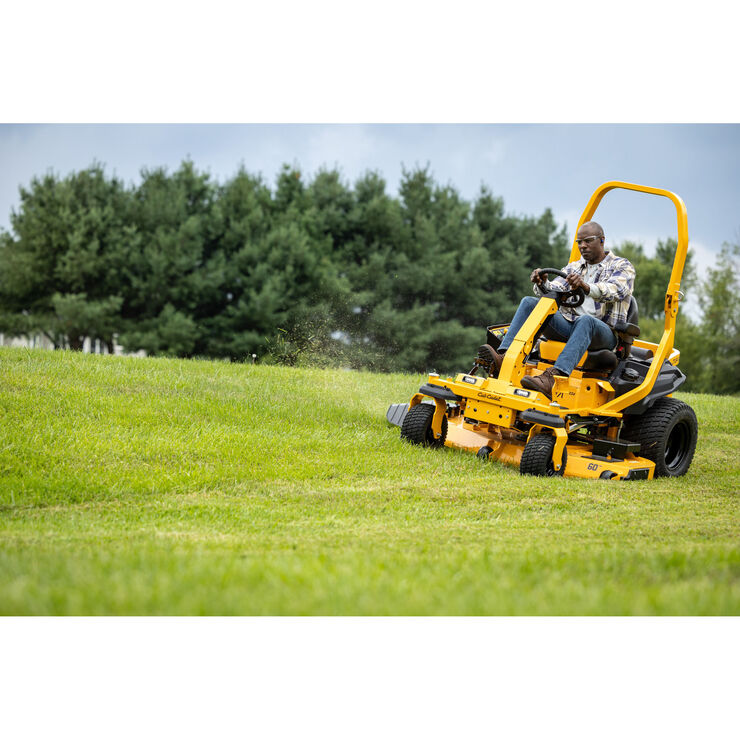

Description:

The Cub Cadet® Ultima Series ZTXS4 60 is a 60-inch zero-turn lawn mower with a 26 HP engine. It features an AeroForce™ Max reinforced fabricated deck, designed to provide a high-quality cut with few clumps and an even finish. The mower is made from 10-gauge reinforced steel and has low-maintenance spindles. Its smooth arc triple blades and deep dome deck design allow you to mow a wide area of grass. The Synchro-Steer™ technology offers 4-wheel control for better stability when mowing on hills and slopes up to 20 degrees.

Features:

• Synchro-Steer™ technology offers 4-wheel control helps and provides stability for straight-line mowing on hillsides and slopes up to 20°
• A 26 HP* Kohler KT-Pro 7000 Series V-twin OHV engine delivers high-performance power and exceptionally smooth, quiet operation
• Commercial grade dual hydrostatic rear-wheel transmissions for quick and easy mowing up to 8 MPH forward (3.5 MPH reverse) zero-turn controlled ground speeds, that quickly leaves your lawn with a professional-quality finish
• A strong, continuous 1.5 in. x 3 in. tubular steel frame with a triple guard corrosion defense system, a multi-step process that electronically applies a corrosion resistance e-coat with meticulous care to help protect against wear and tear

Specification:

Engine

• Engine Brand: Kohler®
• Model: Pro 7000 Series
• Model Number: KT745
• Displacement: 747cc
• Horsepower: 26 HP
• Cylinders: Twin
• Starter Type: Electric
• Start Method: Ignition Key
• Oil Capacity: 2.0 qt. US (1.89 L)
• Lubrication: Fully pressurized
• Charging System: 12 amp regulated
• Fuel Delivery: Carburetor
• Fuel Tank Capacity: 5.5 gal. US (20.82 L)
• Fuel Gauge: Yes
• Governor: Mechanical
• Choke: Choke-a-matic
• Air Filter: Dual element
• Oil Filter: Yes

Battery

• Battery: 210 CCA
• Type: AGM (Absorbent Glass Mat)
• Voltage: 12V

Drive System

• Transmission: Hydro-Gear ZT 3100
• Drive Type: Hydrostatic
• Forward Speed: 8 MPH / 12.9 km/h
• Reverse Speed: 3.5 MPH / 5.6 km/h

Cutting Deck

• Deck Width: 60 in
• Deck Type: Reinforced Fabricated
• Deck Material: 10-gauge steel with 2-gauge reinforcements
• Blades: 3
• Deck Lift: Foot pedal with dial adjust
• Cutting Height Range: 1" - 4.75"
• Deck Positions: 17
• Deck Engagement (PTO): Electric
• Deck Wash Port: No
• Anti-Scalping Wheels: 3

Chassis

• Frame: 1.5" x 3" tubular steel
• Turning Radius: 0° (True Zero-Turn)
• ROPS (Roll Over Protection System): Yes
• Rear Tow Hitch: Yes
• Corrosion Protection: Yes

Controls & Comfort

• Steering: Steering Wheel
• Cruise Control: No
• Brakes: Disc
• Parking Brake: Foot-Controlled
• Seat Type: 20" high-back
• Armrests: Yes
• Seat Adjustment: Lever
• Front Caster Suspension: No

Wheels

• Rear Tires: 22" x 12" -12"
• Front Tires: 13" x 6.5" -6"
• Tread Type: Turf Master / Multi Trac

Additional Features

• Series: Ultima Series™ ZTXS
• Hour Meter: Yes
• Mulch Kit: Available separately
• Headlights: Dual-LED
• Cup Holder: Yes
• Operator Presence System: Yes

Model Info

• Model Number: 47TSCAB8A10

Warranty

• Residential Warranty: 4-year / 800 hours
• Commercial Warranty: 4-year / 800 hours
• Frame Warranty: Lifetime Limited
• Deck Shell Warranty: Lifetime Limited

Description:

Features:

• Thoughtfully designed 1.5 in. x 3 in. tubular steel frame provides optimal strength and rigidity while allowing accessibility for easy routine maintenance
• Equipped with a powerful 25 HP Kohler® Confidant V-Twin OHV engine for reliable starting and exceptionally smooth, quiet operation.
• Commercial-grade dual Hydro-Gear® ZT-3200 hydrostatic rear-wheel transmissions for quick and effortless up to 8.5 MPH forward and 3.5 MPH reverse zero-turn controlled ground speeds.
• Independent suspension caster wheels that deliver a smooth ride with less vibration.
• High comfort, high performance an automotive-inspired, ergonomic, fully adjustable premium 24 in. high back adjustable seat with cushioned armrests, ball-bearing seat slide and patented suspension system, adjustable lap bars and industry-exclusive ergonomic hand grips optimized for comfort providing you the confidence to maximize your speed and reduce operator fatigue

Specification:

Engine:

• Brand: Kohler®
• Model: Confidant ZT740
• Displacement: 747cc
• Output: 25HP
• Starter Type: Electric
• Fuel Tank Capacity: 5.5 gal. US (20.82 L)
• Cylinders: Twin
• Start Method: Ignition Key
• Oil Capacity: 2.1 qt US (2 L)
• Lubrication: Fully pressurized
• Charging System: 12 amp regulated
• Fuel Gauge: Yes
• Governor: Mechanical
• Choke: Choke-a-matic
• Air Filter: Dual element
• Oil Filter: Yes
• Fuel Delivery: Carburetor
• Battery: AGM (Absorbent Glass Mat)
• Type: 12V
• CCA: 210

Drive System:

• Transmission: Hydro-Gear ZT 3200
• Forward Speed: 8.5 MPH / 13.7 km/h
• Reverse Speed: 3.5 MPH / 5.6 km/h
• Drive Type: Hydrostatic

Cutting Deck:

• Width: 54 inches
• Engagement: Electric PTO
• Material: 10-gauge steel with 2-gauge reinforcement
• Construction: Fabricated
• Blades: Three
• Deck Lift: Foot pedal with Dial Adjust
• Cutting Heights: 1" - 4.75"
• Anti-Scalping: Three gauge wheels
• Positions: 17

Chassis:

• Frame: 1.5" x 3" tubular steel
• Turning Radius: 0°
• ROPS: Yes (Roll Over Protection System)
• Tow Hitch: Yes
• Corrosion Protection: Yes

Controls:

• Cruise Control: No
• Brakes: Disc
• Steering Control: Lap Bars

Comfort:

• Seat Type: 24" high back with Armrests
• Seat Adjustment: Lever

Wheels:

• Rear Tires: 23"x 12"-12"
• Front Tires: 13"x 6.5"-6"
• Tread: Turf Master / Multi Trac

Specifications:

• Series: Ultima Series™ ZTX
• Additional Features: Hour Meter, Mulch Kit available separately, Dual-LED Headlights, Cup Holder, Operator Presence System, Integrated Lap Bar Parking Brake

Warranty:

• Residential Warranty: 4-year or 800 hours
• Frame Warranty: Lifetime Limited
• Deck Shell Warranty: Lifetime Limited
• Commercial Warranty: 4-year or 800 hours

Model Number: 47RTAAA7010

Description

The Cub Cadet® Ultima Series ZTX5 60 is a 60-inch zero-turn lawn mower with a 24 HP engine. It features an AeroForce™ Max reinforced fabricated deck, designed to provide a high-quality cut with few clumps and an even finish. The mower is made from 10-gauge reinforced steel and has low-maintenance spindles. Its smooth arc triple blades and deep dome deck design allow you to mow a wide area of grass. With dual hydrostatic transmissions, it offers quick ground speeds, giving your yard a professional look.

Features:

• Thoughtfully designed 1.5 in. x 3 in. tubular steel frame provides optimal strength and rigidity while allowing accessibility for easy routine maintenance
• Equipped with a powerful 24 HP* Kawasaki® FS Series V-Twin OHV engine for reliable starting and exceptionally smooth, quiet operation.
• Commercial-grade dual Hydro-Gear® ZT-3200 hydrostatic rear-wheel transmissions for quick and effortless up to 8.5 MPH forward and 3.5 MPH reverse zero-turn controlled ground speeds.
• Ride in ultimate comfort thanks to a front caster suspension that delivers up to 770 lbs. of shock absorption to help reduce vibration*
• High comfort, high performance an automotive-inspired, ergonomic, fully adjustable premium 24 in. high back adjustable seat with cushioned armrests, ball-bearing seat slide and patented suspension system, adjustable lap bars and industry-exclusive ergonomic hand grips optimized for comfort providing you the confidence to maximize your speed and reduce operator fatigue

Specifications:

Engine

• Brand: Kawasaki®
• Series: FS Series
• Model Number: 730V
• Displacement: 726 cc
• Output: 24 HP
• Cylinders: Twin
• Fuel Delivery: Carburetor
• Starting System: Electric Start (Ignition Key)
• Fuel Tank Capacity: 5.5 gal US (20.82 L)
• Lubrication: Fully pressurized
• Charging System: 12 amp regulated
• Air Filter: Single element
• Oil Filter: Yes
• Oil Capacity: 2.1 qt US (2 L)
• Governor: Mechanical
• Choke: Separate
• Fuel Gauge: Yes

Battery

• Battery Type: AGM (Absorbent Glass Mat)
• Cold Cranking Amps (CCA): 210
• Voltage: 12V

Drive System

• Transmission: Hydro-Gear ZT 3200
• Type: Hydrostatic
• Forward Speed: Up to 8.5 MPH (13.7 km/h)
• Reverse Speed: Up to 3.5 MPH (5.6 km/h)

Cutting Deck

• Cutting Width: 60 in
• Material: 10-gauge steel with 2-gauge reinforcement
• Construction: Reinforced Fabricated
• Blade(s): Three
• Deck Engagement (PTO): Electric
• Deck Lift: Foot Pedal with Dial Adjust
• Height Range: 1" – 4.75"
• Deck Positions: 17
• Anti-Scalping: Three gauge wheels
• Deck Wash: No
• Mulch Kit: Available separately

Chassis & Build

• Frame: 1.5" x 3" tubular steel
• Turning Radius: 0° (Zero-Turn)
• ROPS (Roll-Over Protection): Yes
• Rear Tow Hitch: Yes
• Corrosion Protection: Yes

Controls & Comfort

• Steering Control: Lap Bars
• Brakes: Disc
• Cruise Control: No
• Seat Type: 24" High-Back
• Armrests: Yes
• Seat Adjustment: Lever
• Front Suspension: Caster Suspension
• Operator Presence System: Yes
• Parking Brake: Integrated in Lap Bars

Wheels & Tires

• Front Tires: 13" x 6.5" – 6"
• Rear Tires: 23" x 12" – 12"
• Tire Tread: Turf Master / Multi Trac

Additional Features

• Hour Meter: Yes
• Headlights: Dual-LED
• Cup Holder: Yes

Warranty

• Residential: 4-Year / 800-Hour Limited Warranty
• Commercial: 4-Year / 800-Hour Limited Warranty
• Frame: Lifetime Limited
• Deck Shell: Lifetime Limited

Description:

The Cub Cadet® Ultima Series ZTX6 60 is a 60-inch zero-turn lawn mower with a 25.5 HP engine. It features an AeroForce™ Max reinforced fabricated deck, which is designed to provide a high-quality cut with few clumps and an even finish. The mower is made from 10-gauge reinforced steel and has low-maintenance spindles. Its smooth arc triple blades and deep dome deck design allow you to mow a wide area of grass. With dual hydrostatic transmissions, it offers quick ground speeds, giving your yard a professional look.

Features:

• A high-strength 1.5 in. x 3 in. tubular steel frame is built to provide optimal strength and rigidity while allowing accessibility for easy routine maintenance
• Commercial grade 852cc/25.5HP* Kawasaki® FX801 V-Twin OHV engine designed for reliable starting and exceptionally smooth, quiet operation.
• Commercial grade dual hydrostatic rear-wheel transmissions for quick up to 9 MPH forward (3.5 MPH reverse) zero-turn controlled ground speeds.
• Limited 4-year/800 hour product warranty plus limited lifetime warranty on the frame and fabricated deck shell

Specification:

Engine

• Brand: Kawasaki®
• Series: FX Series
• Model Number: 801V
• Displacement: 852cc
• Horsepower: 25.5 HP
• Starter: Electric (Ignition Key)
• Fuel Tank Capacity: 5.5 gal. US (20.82 L)
• Cylinders: Twin
• Oil Capacity: 2.1 qt US (2.0 L)
• Lubrication: Fully pressurized
• Charging System: 15 amp regulated
• Fuel Gauge: Yes
• Governor: Mechanical
• Choke: Separate Choke
• Air Filter: Single element
• Oil Filter: Yes
• Fuel Delivery: Carburetor

Battery

• Battery: 210 CCA
• Type: AGM (Absorbent Glass Mat)
• Voltage: 12V

Drive System

• Transmission: Hydro-Gear ZT 3400 Charged
• Type: Hydrostatic
• Forward Speed: 9 MPH / 14.5 km/h
• Reverse Speed: 3.5 MPH / 5.6 km/h

Cutting Deck

• Cutting Width: 60 in
• Material: 10-gauge steel with 2-gauge reinforcement
• Deck Type: Reinforced Fabricated
• Blade Engagement: Electric PTO
• Blade Count: Three
• Deck Lift: Foot pedal with Dial Adjust
• Cutting Height Range: 1" – 4.75"
• Deck Height Positions: 17
• Deck Wash: No
• Anti-Scalping Wheels: Three

Chassis & Frame

• Frame: 1.5" x 3" tubular steel
• Turning Radius: 0°
• ROPS: Yes
• Tow Hitch: Yes
• Corrosion Protection: Yes

Controls & Operation

• Cruise Control: No
• Brakes: Disc
• Steering Control: Lap Bars
• Parking Brake: Integrated into lap bars

Comfort & Ergonomics

• Seat Type: 24" High-back
• Armrests: Yes
• Seat Adjustment: Lever
• Front Caster Suspension: Yes

Wheels & Tires

• Rear Tires: 24" x 12"-12"
• Front Tires: 13" x 6.5"-6"
• Tread: Turf Master / Multi Trac

Additional Features

• Hour Meter: Yes
• Mulch Kit: Available separately
• Headlights: Dual-LED
• Cup Holder: Yes
• Operator Presence System: Yes

Model & Warranty

• Model Number: 47TIAHA8A10
• Series: Ultima Series™ ZTX
• Residential Warranty: 4-year / 800 hours
• Commercial Warranty: 4-year / 800 hours
• Frame Warranty: Lifetime Limited
• Deck Shell Warranty: Lifetime Limited

Description:

Features:

• Synchro-Steer™ technology offers 4-wheel control helps and provides stability for straight-line mowing on hillsides and slopes up to 20°
• A 24 HP* Kohler KT-Pro 7000 Series V-twin OHV engine delivers high-performance power and exceptionally smooth, quiet operation
• Commercial grade dual hydrostatic rear-wheel transmissions for quick and easy mowing up to 8 MPH forward (3.5 MPH reverse) zero-turn controlled ground speeds, that quickly leaves your lawn with a professional-quality finish
• A strong, continuous 1.5 in. x 3 in. tubular steel frame with a triple guard corrosion defense system, a multi-step process that electronically applies a corrosion resistance e-coat with meticulous care to help protect against wear and tear.

Description:

• Thoughtfully designed 1.5 in. x 3 in. tubular steel frame provides optimal strength and rigidity while allowing accessibility for easy routine maintenance
• Equipped with a powerful 24 HP KOHLER 7000 Series PRO V-twin OHV engine for reliable starting and exceptionally smooth, quiet operation.
• Commercial-grade dual Hydro-Gear® ZT-3100 hydrostatic rear-wheel transmissions for quick and effortless up to 12.9 km/h forward and 5.6 km/h reverse zero-turn controlled ground speeds.
• Four-year/500 hour product warranty plus limited lifetime warranty on the frame and fabricated deck shell give you peace-of-mind
• Ideal for 4-12 acres with slightly rolling hills and several obstacles

DESCRIPTION

FEATURES

• Excellent Stability On Hills: Synchro-Steer™ technology delivers four-wheel control, providing straight-line mowing on hillsides and slopes up to 20-degrees
• Premium Cut: AeroForce™ Max reinforced fabricated steel cutting decks designed to deliver high quality results and mow a wide area of grass to help minimize cutting time.
• Strong, Durable Frame: A strong, continuous 1.5 in. x 3 in. tubular steel frame with a triple guard corrosion defense system helps protect against wear and tear
• Turf Master Tires: Turf Master® tires designed to help minimize turfing and provide traction and stability on hills.
• Ride In Comfort: SoftTouch steering wheel and an adjustable steering column that tilts for easy steering and great handling on hills and uneven terrain.
• Customize Your Machine: Unlock the full potential of your Ultima ZTXS with a variety of attachments and accessories (sold separately).
• Easy Maintenance: An open frame design and hinged/removable floor pan allow easy access to the deck and engine for easy maintenance
• Strong Warranty: 4-year/800-hour limited product warranty, lifetime limited frame and fabricated deck shell warranty for the ultimate peace of mind
• Premium Seating: Automotive-inspired, fully adjustable premium 24 in. high back seat with cushioned armrests, ball-bearing seat slide and patented suspension system.

ENGINE

• Engine Brand: Kohler®
• Engine Model: Confidant
• Engine Model Number: ZT740
• Engine Displacement: 747cc
• Engine Output: 25HP
• Starter Type: Electric
• Fuel Tank Capacity: 5.5 gal. US (20.82 L)
• Cylinders: Twin
• Engine Start: Ignition Key
• Engine Oil Capacity: 2.1 qt US ( 2 L)
• Lubrication: Fully pressurized
• Charging System: 12 amp regulated
• Fuel Gauge: Yes
• Governor: Mechanical
• Choke: Choke-a-matic
• Air Filter: Single element
• Oil Filter: Yes
• Fuel Delivery: Carburetor

BATTERY

• Battery: 210 CCA
• Battery Type: AGM (Absorbent Glass Mat)
• Battery Voltage: 12V

DRIVE SYSTEM

• Transmission: Hydro-Gear ZT 3200
• Forward Speed: 8.5 MPH / 13.7 km/h
• Reverse Speed: 3.5 MPH / 5.6 km/h
• Drive System: Hydrostatic

CUTTING DECK

• Deck Cutting Width: 60 in
• Deck Wash: No
• Deck Material: 10-gauge steel with 2-gauge reinforcement
• Deck Engagement (PTO): Electric
• Deck Construction: Fabricated
• Blade(s): Three
• Deck Lift: Foot pedal with Dial Adjust
• Cutting Height Range: 1" - 4.75"
• Anti-Scalping: Three gauge wheels
• Deck Positions: 17

WARRANTY

• Warranty: 4-year 800 hours
• Frame Warranty: Lifetime Limited
• Deck Shell Warranty: Lifetime limited
• Commercial Warranty: 4-year 800 hours

CHASSIS

• Frame: 1.5" x 3" tubular steel
• Turning Radius: 0°
• ROPS: Yes
• Rear Tow Hitch: Yes
• Corrosion Protection: Yes

CONTROLS

• Cruise Control: No
• Brakes: Disc
• Steering Control: Steering Wheel

COMFORT

• Seat Type: 24" high back
• Armrests: Yes
• Seat Adjustment: Lever

WHEELS

• Rear Tires: 23"x 12"-12"
• Front Tires: 13"x 6.5"-6"
• Tire Tread: Turf Master / Multi Trac

ADDITIONAL SPECIFICATIONS

• Hour Meter: Yes
• Mulch Kit: Available separately
• Headlight(s): Dual-LED
• Cup Holder: Yes
• Operator Presence System: Yes
• Parking Brake: Foot Controlled
• Model Number: 47RTCAB8010

SPECIFICATIONS

• Series: Ultima Series™ ZTXS

DISCLAIMERS

• Specifications: Specifications subject to change without notice and without incurring obligation. Products depicted on website and other advertisements are for demonstration purposes only. Actual products offered for sale may vary in design, required attachments, safety features and non-functional appearance from. See other general disclaimers at the bottom of our website.

KEY FEATURES

• Synchro-Steer™ technology offers 4-wheel control helps and provides stability for straight-line mowing on hillsides and slopes up to 20°
• A 25 HP* Kohler Confident ZT740 V-twin OHV engine delivers high-performance power and exceptionally smooth, quiet operation
• Commercial grade dual hydrostatic rear-wheel transmissions for quick and easy mowing up to 8.5 MPH forward (3.5 MPH reverse) zero-turn controlled ground speeds.

NOTES:

Engine Disclaimer: The engine horsepower information is provided by the engine manufacturer to be used for comparison purposes only. See your local Cub Cadet Dealer for warranty details. Pricing Disclaimer: Posted price is in USD Dollars and is manufacturer's suggested sale price. Models and pricing may vary by location. Taxes, freight, set-up and delivery not included. Optional equipment, accessories and attachments sold separately. See your retailer for details. Image Disclaimer: Products may vary from depicted model image in design, required attachments, safety features and non-functional appearance, and may not reflect dealer inventory or unit specifications. Specifications Disclaimer: Specifications subject to change without notice. Images may not reflect retailer inventory and/or unit specifications.

DESCRIPTION

KEY FEATURES

• Synchro-Steer™ technology offers 4-wheel control helps and provides stability for straight-line mowing on hillsides and slopes up to 20°
• A 25 HP* Kohler Confident ZT740 V-twin OHV engine delivers high-performance power and exceptionally smooth, quiet operation
• Commercial grade dual hydrostatic rear-wheel transmissions for quick and easy mowing up to 8.5 MPH forward (3.5 MPH reverse) zero-turn controlled ground speeds.

FEATURES

• Excellent Stability On Hills: Synchro-Steer™ technology delivers four-wheel control, providing straight-line mowing on hillsides and slopes up to 20-degrees
• Premium Cut: AeroForce™ Max reinforced fabricated steel cutting decks designed to deliver high quality results and mow a wide area of grass to help minimize cutting time.
• Strong, Durable Frame: A strong, continuous 1.5 in. x 3 in. tubular steel frame with a triple guard corrosion defense system helps protect against wear and tear
• Turf Master Tires: Turf Master® tires designed to help minimize turfing and provide traction and stability on hills.
• Ride In Comfort: SoftTouch steering wheel and an adjustable steering column that tilts for easy steering and great handling on hills and uneven terrain.
• Customize Your Machine: Unlock the full potential of your Ultima ZTXS with a variety of attachments and accessories (sold separately).
• Easy Maintenance: An open frame design and hinged/removable floor pan allow easy access to the deck and engine for easy maintenance
• Strong Warranty: 4-year/800-hour limited product warranty, lifetime limited frame and fabricated deck shell warranty for the ultimate peace of mind
• Premium Seating: Automotive-inspired, fully adjustable premium 24 in. high back seat with cushioned armrests, ball-bearing seat slide and patented suspension system.

ENGINE

• Engine Brand: Kawasaki®
• Engine Model: FX Series
• Engine Model Number: 801V
• Engine Displacement: 852cc
• Engine Output: 25.5HP
• Starter Type: Electric
• Fuel Tank Capacity: 5.5 gal. US (20.82 L)
• Cylinders: Twin
• Engine Start: Ignition Key
• Engine Oil Capacity: 2.1 qt US ( 2 L)
• Lubrication: Fully pressurized
• Charging System: 15 amp regulated
• Fuel Gauge: Yes
• Governor: Mechanical
• Choke: Separate Choke
• Air Filter: Single element
• Oil Filter: Yes
• Fuel Delivery: Carburetor

BATTERY

• Battery: 210 CCA
• Battery Type: AGM (Absorbent Glass Mat)
• Battery Voltage: 12V

DRIVE SYSTEM

• Transmission: Hydro-Gear ZT 3400 Charged
• Forward Speed: 9 MPH / 14.5 km/h
• Reverse Speed: 3.5 MPH / 5.6 km/h
• Drive System: Hydrostatic

CUTTING DECK

• Deck Cutting Width: 60 in
• Deck Wash: No
• Deck Material: 10-gauge steel with 2-gauge reinforcement
• Deck Engagement (PTO): Electric
• Deck Construction: Fabricated
• Blade(s): Three
• Deck Lift: Foot pedal with Dial Adjust
• Cutting Height Range: 1" - 4.75"
• Anti-Scalping: Three gauge wheels
• Deck Positions: 17

WARRANTY

• Warranty: 4-year 800 hours
• Frame Warranty: Lifetime Limited
• Deck Shell Warranty: Lifetime limited
• Commercial Warranty: 4-year 800 hours

CHASSIS

• Frame: 1.5" x 3" tubular steel
• Turning Radius: 0°
• ROPS: Yes
• Rear Tow Hitch: Yes
• Corrosion Protection: Yes

CONTROLS

• Cruise Control: No
• Brakes: Disc
• Steering Control: Steering Wheel

COMFORT

• Seat Type: 24" high back
• Armrests: Yes
• Seat Adjustment: Lever

WHEELS

• Rear Tires: 24 in.x 12 in.-12 in.
• Front Tires: 13 in.x 6.5 in.-6 in.
• Tire Tread: Turf Master / Multi Trac

ADDITIONAL SPECIFICATIONS

• Hour Meter: Yes
• Mulch Kit: Available separately
• Headlight(s): Dual-LED
• Cup Holder: Yes
• Operator Presence System: Yes
• Parking Brake: Foot Controlled
• Model Number: 47RICHB8010

SPECIFICATIONS

• Series: Ultima Series™ ZTXS

DISCLAIMERS

• Specifications: Specifications subject to change without notice and without incurring obligation. Products depicted on website and other advertisements are for demonstration purposes only. Actual products offered for sale may vary in design, required attachments, safety features and non-functional appearance from. See other general disclaimers at the bottom of our website.

NOTES:

Engine Disclaimer: The engine horsepower information is provided by the engine manufacturer to be used for comparison purposes only. See your local Cub Cadet Dealer for warranty details. Pricing Disclaimer: Posted price is in USD Dollars and is manufacturer's suggested sale price. Models and pricing may vary by location. Taxes, freight, set-up and delivery not included. Optional equipment, accessories and attachments sold separately. See your retailer for details. Image Disclaimer: Products may vary from depicted model image in design, required attachments, safety features and non-functional appearance, and may not reflect dealer inventory or unit specifications. Specifications Disclaimer: Specifications subject to change without notice. Images may not reflect retailer inventory and/or unit specifications.

Description:

Compact and powerful, the 1X 21 in. 208cc Gas Single-Stage Snow Blower with Remote Chute Control and Headlight can tackle up to 6 in.of snow†. A 13 in. intake height is designed to clear small driveways or sidewalks quickly. Quickly change the direction of snow discharge from the operator’s station with the dashboard-mounted control lever. Push button electric start is designed for reliable starting without the need to pull-start. An in-dash headlight helps provide visibility before dawn or after sundown.

Features:

• 21 in. clearing width and 13 in. intake height is capable of removing up to 6 in. of snow† and designed to throw snow up to 25 ft. away
• Skip the pull starts and get to work quickly with push-button electric start (Requires use of 15amp/125V outdoor-rated extension cord sold separately)
• In-dash LED headlight helps provide visibility in low-light conditions
• Quickly adjust the pitch and direction of snow discharge with the dashboard mounted control lever

Specification:

Engine:

• Brand: Cub Cadet®
• Model Number: 670-JUB
• Displacement: 208 cc
• Fuel Tank Capacity: 2 quarts (1.9 L)
• Start Type: Recoil and Push-Button Electric
• Governor: Mechanical
• Fuel System: Carburetor

Drive System:

• Type: Auger-Assist
• Number of Forward Speeds: Not applicable
• Number of Reverse Speeds: Not applicable

Controls:

• Handle Grip: Padded Gullwing
• Chute Rotation Control: Remote Single-Lever
• Chute Pitch Control: Remote Single-Lever
• Chute Rotation: 190 degrees
• Single-Hand Operation: Not applicable
• Steering Control: Not applicable

Performance:

• Clearing Width: 21 inches
• Intake Height: 13 inches
• Number of Stages: Single-stage

Auger & Impeller:

• Auger Diameter: 9 inches
• Impeller Diameter: Not applicable
• Accelerator Diameter: Not applicable
• Auger Material: Reinforced Rubber

Tires:

• Size: 7 x 2 inches
• Tread: Zag pattern

Additional Features:

• Headlight: In-dash LED
• Shave Plate: Polymer
• Skid Shoes: Not applicable
• Drift Cutters: No
• Chute Material: High-impact Polymer

Model Information:

• Model Number: 31PM2T6C710

Warranty:

• Residential Warranty: 3-year limited
• Commercial Warranty: 1-year limited
• Chute Warranty: 3-year limited
• Auger Gearbox Warranty: Not applicable

Description:

Compact and powerful, the 1X 21 in. 208cc Gas Single-Stage Snow Blower with Remote Chute Control and Headlight can tackle up to 6 in.of snow†. A 13 in. intake height is designed to clear small driveways or sidewalks quickly. Quickly change the direction of snow discharge from the operator’s station with the dashboard-mounted control lever. Push button electric start is designed for reliable starting without the need to pull-start. An in-dash headlight helps provide visibility before dawn or after sundown.

Features:

• 21 in. clearing width and 13 in. intake height is capable of removing up to 6 in. of snow† and designed to throw snow up to 25 ft. away
• Skip the pull starts and get to work quickly with push-button electric start (Requires use of 15amp/125V outdoor-rated extension cord sold separately)
• In-dash LED headlight helps provide visibility in low-light conditions
• Quickly adjust the pitch and direction of snow discharge with the dashboard mounted control lever

Specifications:

Engine

• Brand: Cub Cadet®
• Model Number: 670-JUB
• Displacement: 208cc
• Fuel Tank Capacity: 2 quarts US / 1.9 L
• Start Type: Recoil and Push-Button Electric
• Governor: Mechanical
• Fuel Delivery: Carburetor

Drive System

• Drive Type: Auger-Assist
• Drive System: Auger-Assist
• Forward/Reverse Speeds: Not applicable

Controls

• Handle Grips: Padded Gullwing
• Chute Rotation Control: Remote Single-Lever
• Chute Pitch Control: Remote Single-Lever
• Chute Rotation: 190°
• Single-Hand Operation: Not applicable
• Steering Control: Not applicable

Power and Performance

• Clearing Width: 21"
• Intake Height: 13"
• Number of Stages: One
• Auger Diameter: 9"
• Auger Gear Box: Not applicable
• Auger Material: Reinforced Rubber
• Impeller & Accelerator Diameter: Not applicable

Dimensions & Build

• Tire Size: 7" x 2"
• Tread Type: Zag
• Shave Plate: Polymer
• Skid Shoes: Not applicable
• Drift Cutters: No
• Chute Material: High-impact Polymer
• Headlight(s): In-dash LED

Model & Warranty

• Model Number: 31PM2T6C710
• Residential Warranty: 3-year limited
• Commercial Warranty: 1-year limited
• Chute Warranty: 3-year limited
• Auger Gearbox Warranty: Not applicable

Description:

Dominate winter with this 2X 30 in. MAX 357cc Gas Two-Stage Snow Blower. This MAX unit has a 23 in. intake height and 14 in. augers and impeller designed to remove up to 18 in. of snow†. An LED light bar aids visibility in low-light conditions. Includes trigger-controlled power steering with a self-propelled drive engineered for control, maneuverability, and single-hand operation.

Features:

• 30 in. clearing width and 23 in. intake height is designed to throw snow up to 40 ft. away while clearing up to 18 in. of snow†
• 357cc 4-cycle OHV Cub Cadet engine delivers the power to help clear snow on driveways that are 12+ parking spaces in size
• Heated grips help provide warmth and comfort.
• Engineered for durability thanks to a heavy-duty cast aluminum auger gearbox, heavy-duty steel auger housing, and steel chute.
• LED lightbar on top of the auger housing and dual LED headlights on the dash help provide visibility in low-light conditions.

Specification:

Engine

• Engine Brand: Cub Cadet®
• Engine Model Number: 683-WUB
• Displacement: 357cc
• Fuel Tank Capacity: 5 quarts US (4.7 L)
• Start Type: Recoil and Push-Button Electric
• Governor: Mechanical
• Fuel Delivery: Carburetor

Drive System

• Drive Type: Friction Disc
• Drive System: All-Wheel Drive
• Forward Speeds: 6
• Reverse Speeds: 2

Controls

• Handle Grip(s): Soft-Touch Heated Grips
• Chute Rotation Control: Remote Overhead Crank
• Chute Pitch Control: Remote Single-Lever
• Chute Rotation: 200°
• Single-Hand Operation: Standard
• Steering Control: Trigger-Controlled Power Steering

Power & Performance

• Clearing Width: 30"
• Intake Height: 23"
• Stages: Two-Stage
• Auger Gearbox: Heavy-duty cast-aluminum

Auger & Impeller

• Auger Diameter: 14"
• Impeller Diameter: 14"
• Accelerator Diameter: N/A
• Auger Material: Serrated Steel

Tires & Dimensions

• Tire Size: 16" x 6.5"
• Tread Pattern: Xtrac®

Chassis & Construction

• Chute Material: Steel
• Shave Plate: Heavy Duty Steel
• Skid Shoes: Deluxe Reversible Poly
• Drift Cutters: No

Lighting

• Headlight(s): Dual LED + LED Light Bar

Model & Warranty

• Model Number: 31AH8DVSB10
• Auger Gearbox Warranty: 5-year limited
• Residential Warranty: 3-year limited
• Commercial Warranty: 1-year limited
• Chute Warranty: 3-year limited

Description:

Cub Cadet® Enduro Series XT1 GT54 54-in. 26 HP* Riding Lawn Mower with AeroForce™ Fabricated Deck is designed to deliver a premium cut with few clumps and stragglers, fine clippings and evenness. Features a hydrostatic transmission that helps provide a smooth operation. An adjustable cut and sew high back 15-in. seat designed to provide comfort for an excellent mowing experience.

Features:

• A 26 HP/747cc twin-cylinder Kohler® engine is designed to deliver reliable power to tackle your yard.
• 54-in. strong AeroForce™ fabricated deck is designed to deliver a premium cut with few clumps and stragglers, fine clippings and evenness.
• Hydrostatic transmission helps provide smooth operation, no shifting, just push the pedal and go.
• Adjustable cut and sew high back 15-in. seat with a 10-degree incline and slide slope designed to provide comfort for an excellent mowing experience.
• Compact AGM battery is designed to deliver a premium experience with a long lifespan, low maintenance and excellent starting performance for reliable starting season to season.
• Garden Tractor

Specifications:

Engine

• Brand: Kohler®
• Model: 7000 Series HD (Model Number: KT745)
• Displacement: 747cc
• Output: 26HP
• Starter Type: Electric
• Fuel Tank Capacity: 3.0 gal (11.36 L)
• Cylinders: Twin
• Start: Ignition Key
• Oil Capacity: 2.0 qt (1.89 L)
• Lubrication: Fully pressurized
• Charging System: 12 amp regulated
• Fuel Gauge: No
• Governor: Mechanical
• Choke: Separate
• Air Filter: Dual element
• Oil Filter: Yes
• Fuel Delivery: Carburetor

Battery

• Capacity: 210 CCA
• Type: AGM (Absorbent Glass Mat)
• Voltage: 12V

Drive System

• Transmission: Tuff Torq® K58
• Forward Speed: 6.2 MPH (9.9 km/h)
• Reverse Speed: 3 MPH (4.8 km/h)
• Rear Axle: 1 inch
• Type: Hydrostatic
• Control: Foot Pedal
• Transmission Housing: Aluminum
• Rear Differential Lock: No

Cutting Deck

• Width: 54 inches
• Wash System: Yes
• Material: 11-gauge steel
• Engagement (PTO): Electric
• Construction: Fabricated
• Blade(s): Three
• Lift: Manual
• Cutting Height Range: 1" - 4"
• Anti-Scalping: Five gauge wheels
• Deck Positions: 12

Chassis

• Frame: Robotically welded
• Turning Radius: 16 inches
• Bumper: Steel tube
• Rear Tow Hitch: Yes
• Corrosion Protection: Yes
• Front Pivot Bar: Cast iron

Controls

• Cruise Control: Yes
• Brakes: Disc

Comfort

• Seat Type: 15" high-back
• Armrests: No
• Seat Adjustment: Lever
• Floor Mats: Rubber

Wheels

• Bearings: Poly Bushing
• Rear Tires: 22"x 9.5"-12"
• Front Tires: 16"x 6.5"-8"
• Tread: Turf Saver

Description:

Features:

• A 19.5 HP/541cc Kohler® engine is designed to deliver reliable power to tackle your yard.
• 42-in. stamped deck built with strong materials and an exceptional belt design while delivering a premium cut.
• Hydrostatic transmission helps provide smooth operation, no shifting, just push the pedal and go.
• Adjustable cut and sew high back 15-in. seat with a 10-degree incline and slide slope helps provides comfort.
• Compact AGM battery is designed to deliver a premium experience with a long lifespan, low maintenance and excellent starting performance for reliable starting season to season.

Description:

Features:

• Mow up to 3.5 acres or 1.5 hours, on a single charge**
• Quiet operation with no engine maintenance, no oil changes, no belts and no gas provides an easy-to-use mowing experience
• No exhaust, carbon monoxide, or unburned hydrocarbons from the on-board source of power
• 56V MAX*, 60Ah, 3000Wh lithium-ion battery that can be charged using a standard 110-Volt outlet
• Built in America with global materials and backed by a 3-year limited residential and 4-year limited battery warranty

Description:

The Cub Cadet® Enduro Series XT1 LT46 46-in. 22 HP* Riding Lawn Mower features a 46-in., stamped deck. Features a hydrostatic transmission that helps provide a smooth operation. An adjustable cut and sew high back 15-in. seat designed to provide comfort for an excellent mowing experience.

Features:

• A 22 HP/725cc twin-cylinder Kohler® engine is designed to deliver reliable power to tackle your yard.
• 46-in. stamped deck built with strong materials and an exceptional belt design while delivering a premium cut.
• Hydrostatic transmission helps provide smooth operation, no shifting, just push the pedal and go.
• Lawn Tractor

Specifications:

Engine

• Engine Brand: Kohler®
• Engine Model: 7000 Series KT722
• Engine Displacement: 747cc
• Engine Output: 22 HP
• Cylinders: Twin
• Starter Type: Electric
• Engine Start: Ignition Key
• Fuel Tank Capacity: 3.0 gal. US (11.36 L)
• Engine Oil Capacity: 2.0 qts. US (1.89 L)
• Lubrication System: Fully pressurized
• Charging System: 12 amp regulated
• Fuel Gauge: No
• Governor: Mechanical
• Choke: Separate Choke
• Air Filter: Dual element
• Oil Filter: Yes
• Fuel Delivery: Carburetor

Battery

• Battery Power: 210 CCA
• Battery Type: AGM (Absorbent Glass Mat)
• Battery Voltage: 12V

Drive System

• Transmission: Tuff Torq® TL-200
• Drive Type: Hydrostatic
• Transmission Control: Foot Pedal
• Forward Speed: 5.5 MPH / 8.6 km/h
• Reverse Speed: 3 MPH / 4.8 km/h
• Rear Axle Size: 3/4"
• Transmission Housing: Aluminum
• Rear Differential Lock: No

Cutting Deck

• Deck Cutting Width: 46 in.
• Deck Wash Port: Yes
• Deck Material: 12-gauge steel
• Deck Construction: Stamped
• Deck Engagement (PTO): Manual
• Number of Blades: Two
• Deck Lift: Manual
• Cutting Height Range: 1" – 4"
• Deck Height Positions: 12
• Anti-Scalping Wheels: 4 gauge wheels

Chassis

• Frame: Robotically welded
• Turning Radius: 16"
• Bumper: No
• Rear Tow Hitch: Yes
• Corrosion Protection: Yes
• Front Pivot Bar: Cast iron

Controls

• Cruise Control: Yes
• Brakes: Disc

Comfort

• Seat Type: 15" high-back
• Armrests: No
• Seat Adjustment: Lever
• Floor Mats: Rubber

Wheels

• Bearing Type: Poly Bushing
• Rear Tires: 20" x 8" – 8"
• Front Tires: 15" x 6" – 6"
• Tire Tread: Turf Saver

Additional Features

• Series: XT1® Enduro Series™
• Hour Meter: Available separately
• Mulch Kit: Available separately
• Headlights: Dual-LED
• Cup Holder: Yes
• Operator Presence System: Yes
• Model Number: 13APA9TTA10

Warranty

• Residential Warranty: 3-year unlimited hours
• Frame Warranty: 5-year unlimited hours
• Front Axle Warranty: 5-year unlimited hours
• Deck Shell Warranty: 3-year unlimited hours
• Commercial Warranty: Not included
